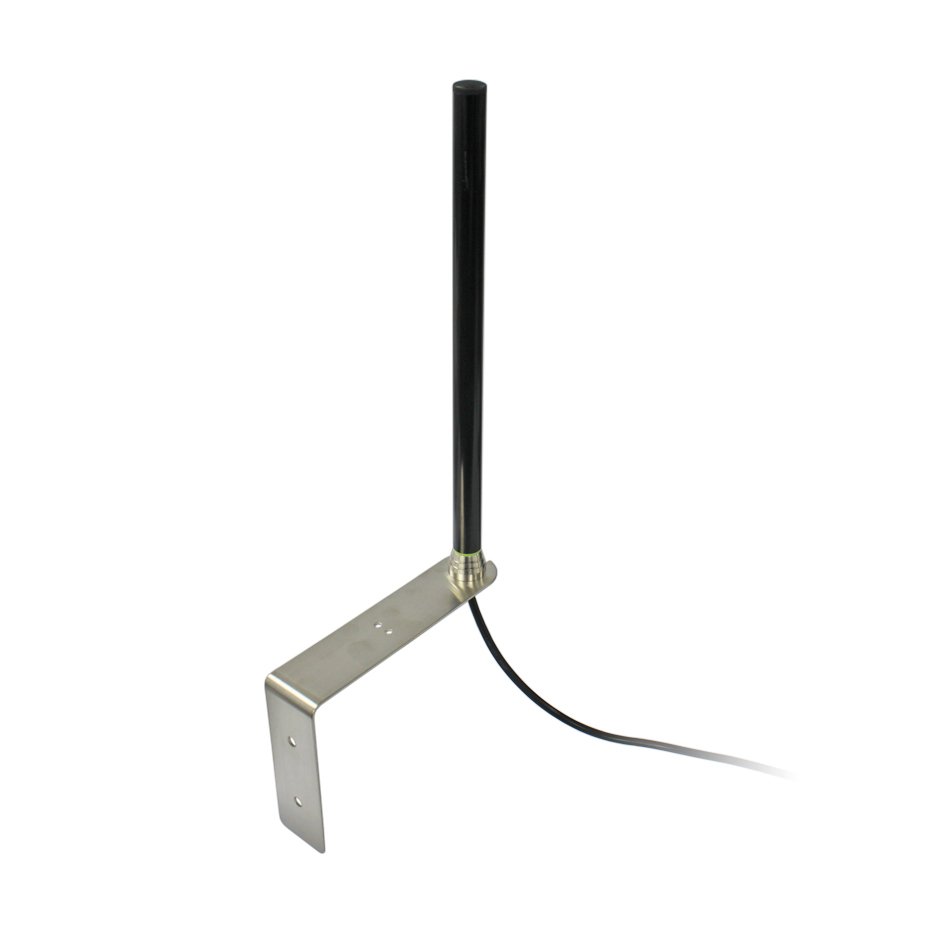

Videx 434/HG/5M High gain antenna
Product Code: 434/HG/5M
Videx High Gain antenna with 5m cable, L bracket, screw fixings and right angle SMA adaptor. Complete with Male SMA connector. Black 2 dBi (max) for external use
View more
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
Related Products (2)
Videx 434 GSM antenna with magnetic base and L bracket
Product
Code: 434
inc VAT
ADDITIONAL INFORMATION
Suitable for 2G, 3G and 4G networks and compatible with all Videx GSM modules/kits.
RG58 coax cable type for the high gain antennas
SPECIFICATION

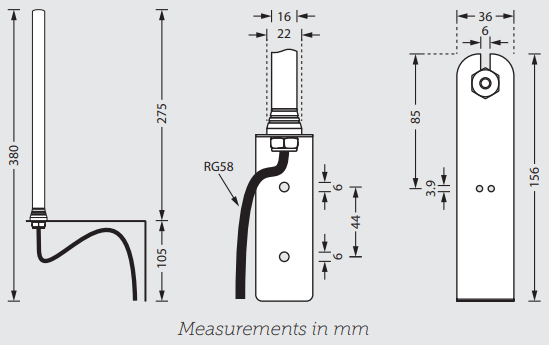

Dimensions : Main antenna: 275 (H), 380 (H) inc. L bracket.
Antenna Tube Diameter: 16
L Bracket: 105 (H) x 156 (L)x 36 (W)
Working Frequency : GSM (824-960/900MHz),
PCN (1710-1880MHz),
DCS (1850-1990MHz),
UMTS (2.1GHz),
WiFi (2400MHz),
4G/LTE (700-2600MHz)
MANUALS
Sorry, there are no manuals available for this product.
This kit contains:
OPTIONAL ACCESSORIES
