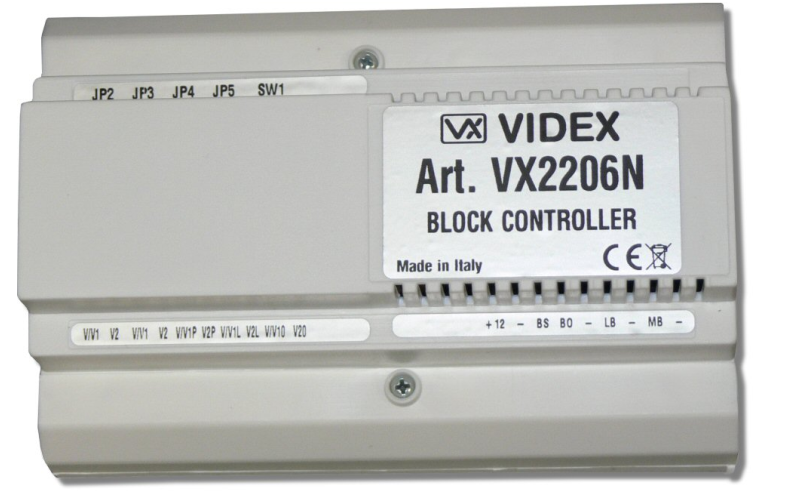

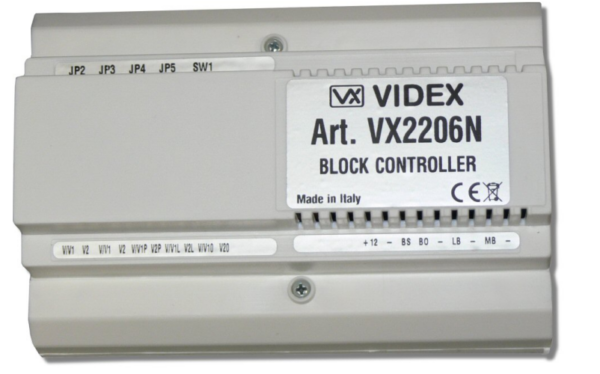

Videx 2206N Block controller

ADDITIONAL INFORMATION

It can also be used to expand a single-level system for more than 180 apartments. One required for each 180 apartments, up to a maximum of 998 apartments. Includes switching for data, audio and video.

The 2206N, effectively making each block a stand alone system, allows getting over the 180-user limit (maximum 1000 users in total) and allows the operation at the same time of multiple blocks that are not in conversation with the main door station (i.e. in a complex with 3 buildings A, B and C with one main entrance and 3 secondary entrances, if a visitor is talking to building C from the main door station, any other visitor may call at the same time from entrances A and B).

Maximum 15  2206N units may be installed in the same system, and main entrances must be of the digital panel (2202 or 4202 and related version with firmware release from 50 or more). The 2206N is available in one version only for both audio and video systems and allows to use of the coax or the balanced video signal. The unit may also work without the block door station (sw5 = ON), in this case it can be used as BUS repeater (for systems where the section of the wires is not enough or where there are big distances) or simply to get over the 180 users limit in systems without secondary entrances. The housing is a 9 modules A Type DIN box

SPECIFICATION

TECHNICAL SPECIFICATION

Working voltage: 13 Vdc +/- 10%

Max. absorption: approx 100 mA

Working Temperature: -10 +50°C
