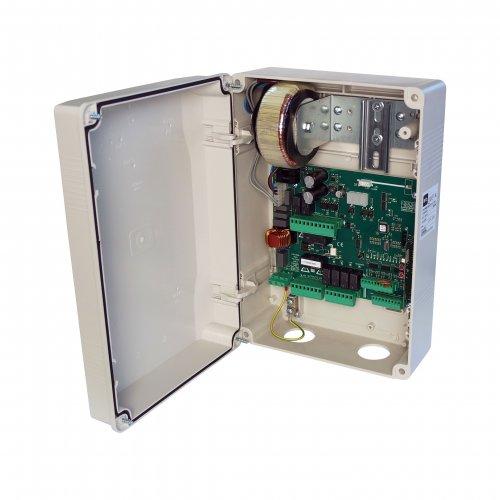

Perseocbe L
Allu 230V Netzteil

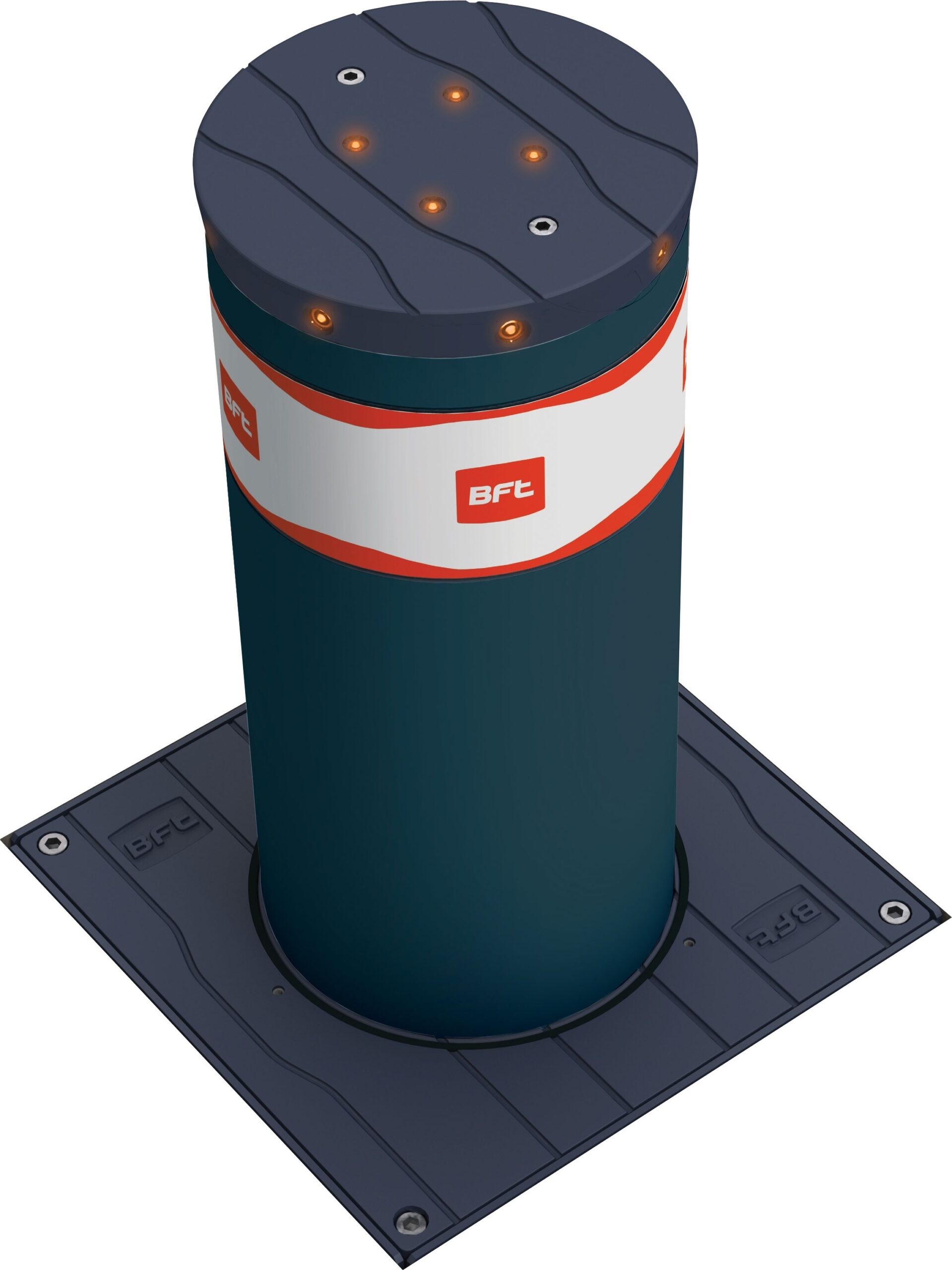

BFT STOPPYMBB KIT 500mm electro-mechanical automatic rising bollard kit with control panel & LED light crown

Product Code: STOPPYMBB500KIT

Designed for commercial installations to control access and provide security to property and buildings, the BFT Stoppy MBB 500 Kit is a simple, ready to install and value for money automatic rising bollard kit with LED Light Crown.

Options for controlling the barriers are:

  • The Mitto transmitter which can be programmed straight in using the built in receiver (sold separately)
  • Loop detectors for vehicles (sold separately)

View more
inc VAT

Related Products (1)

inc VAT

ADDITIONAL INFORMATION

Complete range of automatic electromechanical retractable bollards for the protection and safety of all areas that require controlled access.

Rod height 500 and 700mm. Ideal for contexts of particular architectural interest, guaranteeing maximum reliability over time and requiring minimal maintenance.

Electromechanical bollard complete with form, with shaft height 500 mm and diameter 220 mm. Impact resistance 10500 J.

PLUS

The option of supply as an integrated unit or with outer casing separate from the operator allows the installer to complete digging and preparation for installation ahead of time.


The new square flange allows for perfect architectonic integration and hence better insertion into the full range of urban contexts.


The conical stem cap and EPDM flange gasket provide highly effective protection against foreign matter entering between the stem and the outer casing, thus making the unit maintenance free.

SPECIFICATION

technical design STOPPY MBB
Control unitPERSEO CBE 230.P SD
Power supply230 V
Power input300 W
Opening or closing time9 s
Rod height500 mm
Rod diameter220 mm
Type of limit switchREED magnetic sensor
SlowdownYes
Impact resistance10500 J
Break-in proof150000 J
Manual cyclereversible in the absence of voltage
Frequency of usevery intensive
Protection ratingIP67
Environmental conditions-15 ÷ 60 °C
U-Linkno

Imperial measurements

The data shown are for information purposes only.

Control unitPERSEO CBE 230.P SD
Power supply230 V
Power input300 W
Opening or closing time9 s
Rod height19.68505 inch
Rod diameter8.661422 inch
Type of limit switchREED magnetic sensor
SlowdownYes
Impact resistance10500 J
Break-in proof150000 J
Manual cyclereversible in the absence of voltage
Frequency of usevery intensive
Protection ratingIP67
Environmental conditions5 ÷ 140 °F
U-Linkno

This kit contains:
