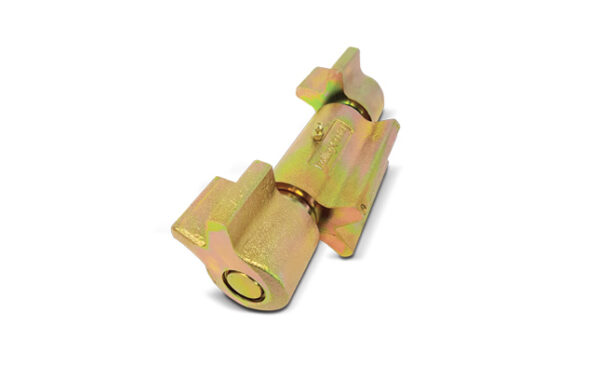

139C stilo Separable heavy double bearing 3 wing hinge
Product Code: 139C
Rolling Center Stilo heavy duty, separable 3 wing hinge, with double bearing self-lubricating bushes and a lubricator pin for doors up to 800kg per pair.
View more
Rated 4.8/5 on Google based on 130+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
The Stilo hinge is the ideal product for the construction of heavy leaf gates, large doors or armored doors. Made entirely of weldable steel, with a 20 diameter pin, bearings and bushing with a lubricated pin for periodic maintenance. Guaranteed anti wear over time.
Advantages include:
- Anti-burglary, rip proof and anti-slip, thanks to the riveted pin and the joint between the wings.
- Detachable, separable
- Two adjustable wings for simple installation.

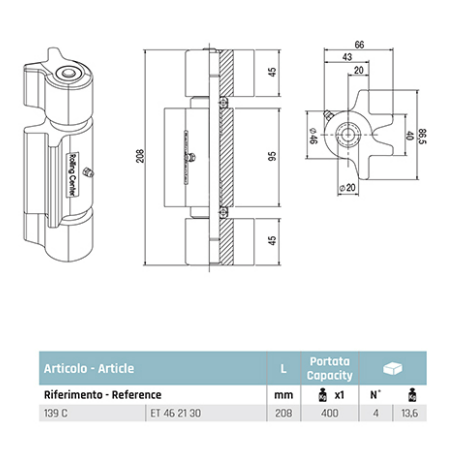

SPECIFICATION
MANUALS
Sorry, there are no manuals available for this product.
This kit contains:
OPTIONAL ACCESSORIES
