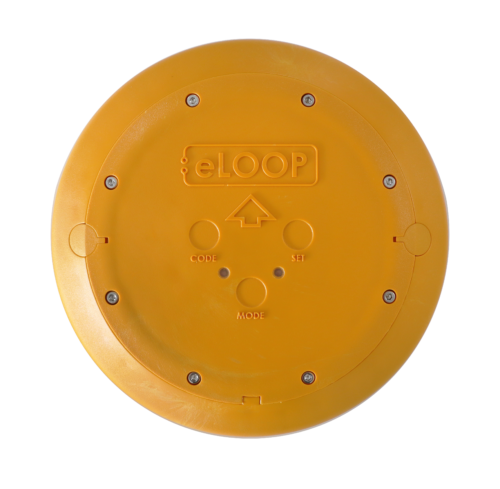

AES EL00C-KLT E-loop commercial kit with Trans 200 for exit mode only

Product Code: EL00C-KLT

EL00C exit only commercial wireless detector supplied with 200 Transceiver. Manage access for multi unit complexes with up to 200 units.

Installation in 3 simple steps


1 - Code in e-Loop.
2 - Secure e-Loop to the driveway.
3 - Calibrate e-Loop and you're ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.

Quick and easy installation.

  • Compact profile - only 26mm high x 200mm diameter.
  • Not affected by ground movement.
  • 10600 mA battery giving up to 10 years battery life
  • High security 128 bit encryption.
  • Static load capacity 2500kg.
  • Range up to 50 meters.
  • Made of high impact plastic

View more
inc VAT

ADDITIONAL INFORMATION

The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles.

These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode.

The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.

Note: Gate or door controller must have a dedicated open input and auto close function enabled

SPECIFICATION

Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode

    Fast and simple installation
    • Quick non-permanent installation
    • Compact design
    • Compatible with various gates

    Reliable radio communications with transceiver
    • Reliable radio communication
    • High security 128-Bit AES Encryption

    Magnetometer detection areas

    This kit contains:

    • 1 X EL00C

      E-Loop Commerical loop Only - Exit mode

    • 1 X ETRANS200

      E Loop 200 Transceiver

    • 2 X DYNABOLTS

      Fixing Bolts
