Medium Kit 2 for gates up to 8m opening and 600kg in weight (2x4.5m)

Product Code: MEDIUMKIT2

For gates up to 8m clear opening and up to 600kg in weight. Supplied with 2 x 4.5m galvanised track.

View more
inc VAT

Related Products (8)

inc VAT

ADDITIONAL INFORMATION

Cantilever kit for clear gate openings up to 8m and up to 600kg in weight. Cantilever gate systems are the ideal choice for commercial, public sector and residential gates as they offer many benefits over the standard sliding gates. These include: * There is no track to lay * There is no ground work needed * There is a lower cost of labour

* Reduced maintenance
* Capable of intensive use * Sleek finish System capable of carrying cantilevered gates up to 8m clear opening / 600kg max gate weight.


SPECIFICATION

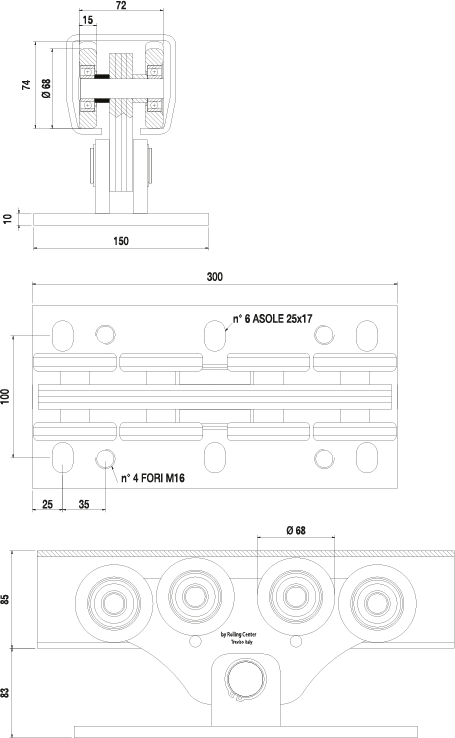

Medium Carriage DrawingMedium Carriage TableMedium Meeting Point DrawingMedium Meeting Point Table1Medium Support Wheel DrawinMedium Support Wheel TableMedium Track DrawingMedium Track1 Table

MANUALS

Sorry, there are no manuals available for this product.

This kit contains:

  • 2 x 4.5m GIPI 5 RGZ4.5 Galvanised Track. Supplied in 2 x 4.5 metre lengths.
  • 2 x CA4RS Medium 8 wheeled cantilever carriages.

    S235 structural grade steel body with C45 case-hardened carbon steel bearings.

  • 2 x 41P/S Medium support wheels with cover
  • 2 x 50P Meeting Points. S235 structural grade steel, galvanised finish.
