Magnum Kit 2 silent kit for gates up to 16m opening and 1200kg in weight (2x6m)

Product Code: MAGNUMKIT2

For gates up to 16m clear opening and up to 1200kg in weight with 35% less noise than standard.

Supplied with 2 x 6m galvanised track.

View more
£1,250.00
£1,500.00 inc VAT

Related Products (3)

£1,150.00
£1,380.00 inc VAT

ADDITIONAL INFORMATION

Cantilever gate systems are the ideal applications for commercial, public sector and industrial gates where there is intensive use due to the robustness of the cantilever mechanism. Cantilever systems provide a high level of security. The silent cantilever system has 35% less noise with silent cantilever systems than standard. The super silent carriages use MAPAR wheels which reduce rolling noise in comparison to traditional carriages. The lightness of MAPAR wheels means a low rolling strength and a lower level of energy needed to move the gate.
Other advantages include:
* No track required * No ground work required
* Low maintenance System capable of carrying cantilevered gates up to 16m clear opening / 1200kg max gate weight.

SPECIFICATION

Specification ImageSpecification ImageSpecification ImageSpecification ImageSpecification ImageSpecification ImageSpecification ImageSpecification Image

MANUALS

Sorry, there are no manuals available for this product.

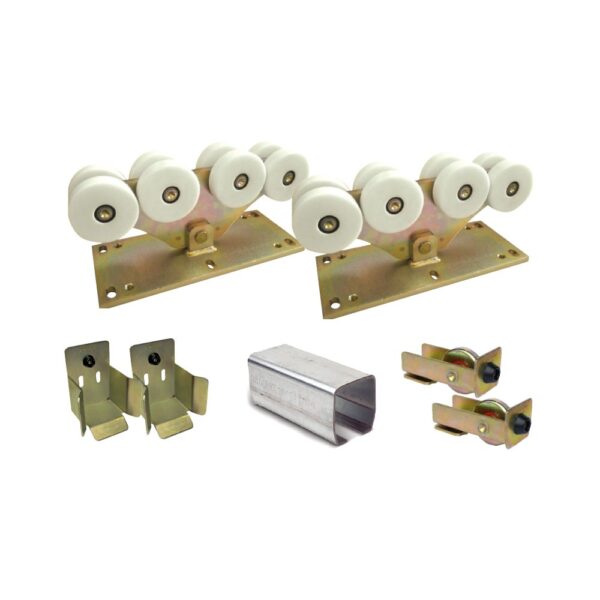

This kit contains:

  • 2 x 6m GIPI 6RMZ6 Magnum Zinc Galvanised Track.

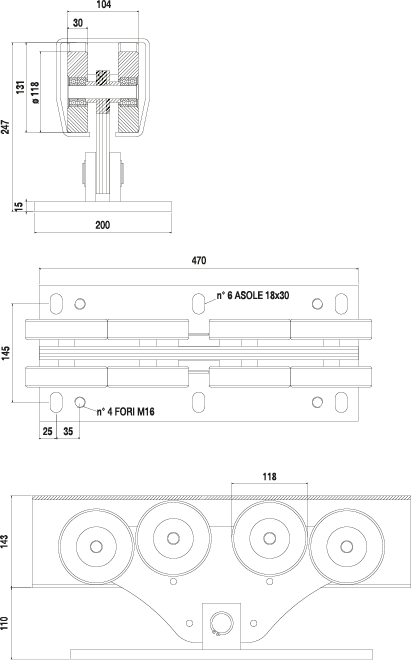

  • 2 x Silent M 8 wheeled Silent Magnum Cantilever Carriages
  • 2 x 41G/S Magnum Cantilever support wheels with plates and rubber stops
  • 2 x 50G Magnum Meeting Points.

OPTIONAL ACCESSORIES

GLOECK cantilever gate tension bar
GLOECK cantilever gate tension bar
£35.00
£42.00 inc. VAT
