Locinox Electradrop motorised electrical drop bolt fail close - black
Locinox Electradrop motorised electrical drop bolt fail close - black - Image 2
Locinox

Locinox Electradrop motorised electrical drop bolt fail close – black

Product ID: ELECTRADROP-E-9005

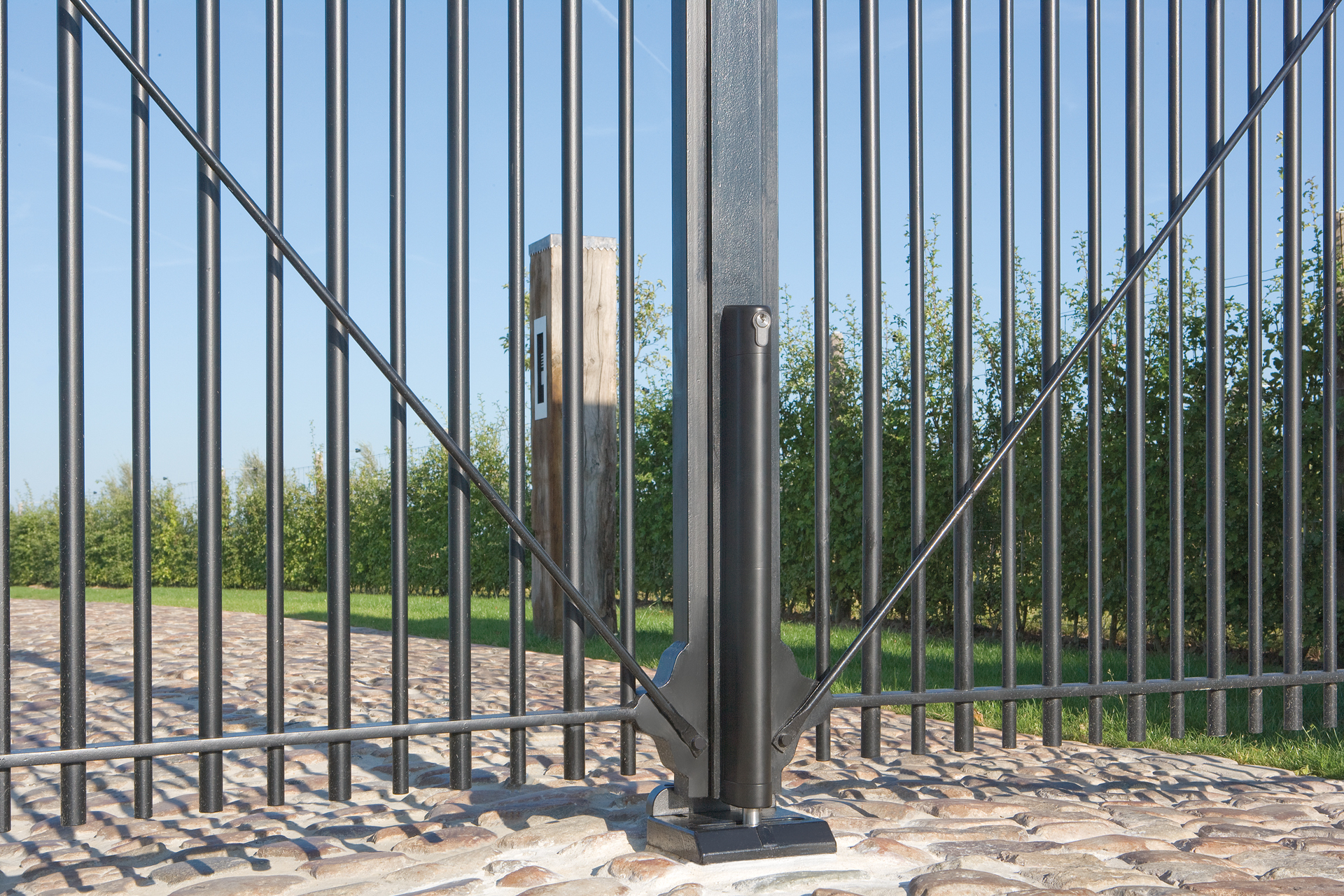

The Locinox Electradrop is a fail secure 24V electrical motorised drop bolt with 115 mm throw for safe locking of automated swing gates.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £111.87 per month with iwocaPay.

Learn more about Iwoca here…

£335.60

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Electric 24V drop bolt with 115 mm throw for safe locking of automated swing gates. By securing your gate with an Electradrop you add an additional secure latching and disburden the electric gate motors.

Electradrop fail close electronic drop bolt, is recommended to be used with a Power stone 24v-60w power supply

Specification

  • Vandal-proof, powder coated aluminium housing
  • To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
  • Automatic detection and memorisation of the continuous or pulse signal
  • Mechanical release possible (by key) in case of emergency
  • The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
  • Throw: 115 mm
  • Drop bolt diameter: 20 mm
  • For gate profiles: 40 mm or more
  • Power consumption: Normal: 25 W / Peak: 48W / Standby: 0,2 W
  • 5 m cable included
  • Included: 3012-37-STD cylinder
  • To connect to a Locinox PowerStone 60W

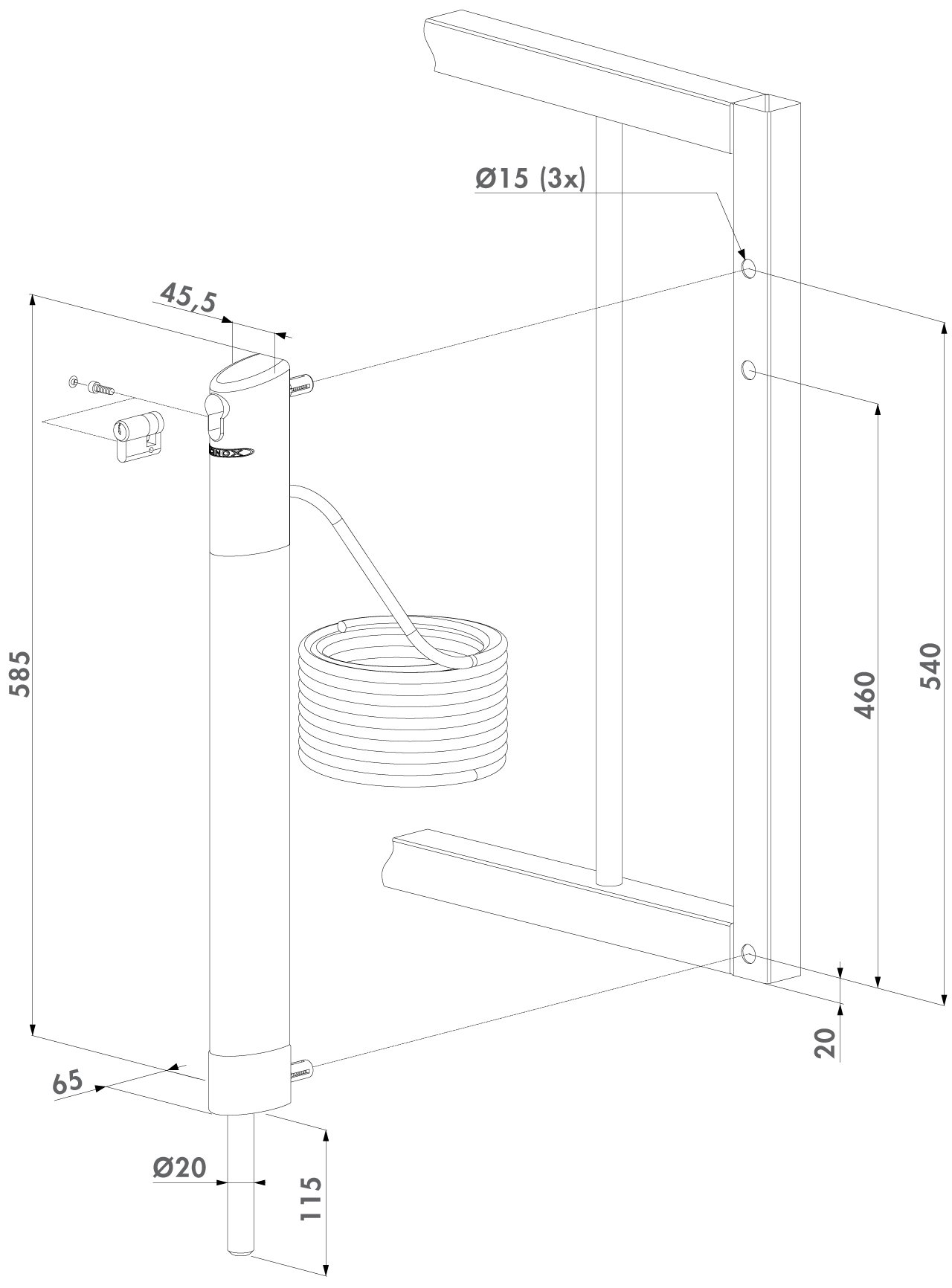

Specification Imagery

Manuals

Electradrop E Manual
