Vx8800

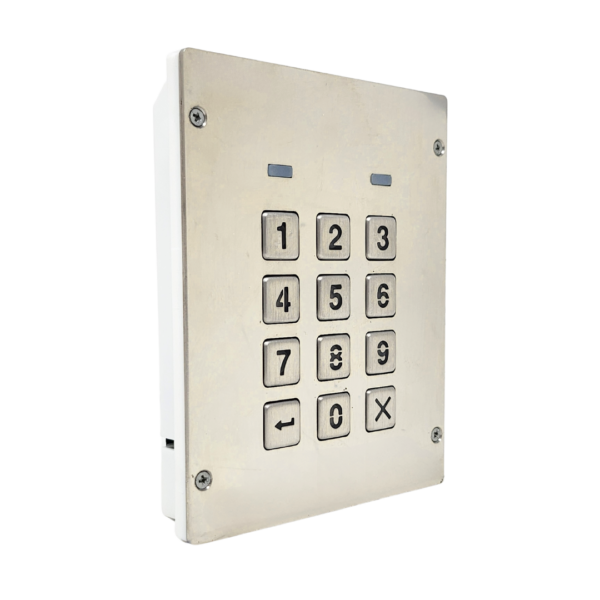

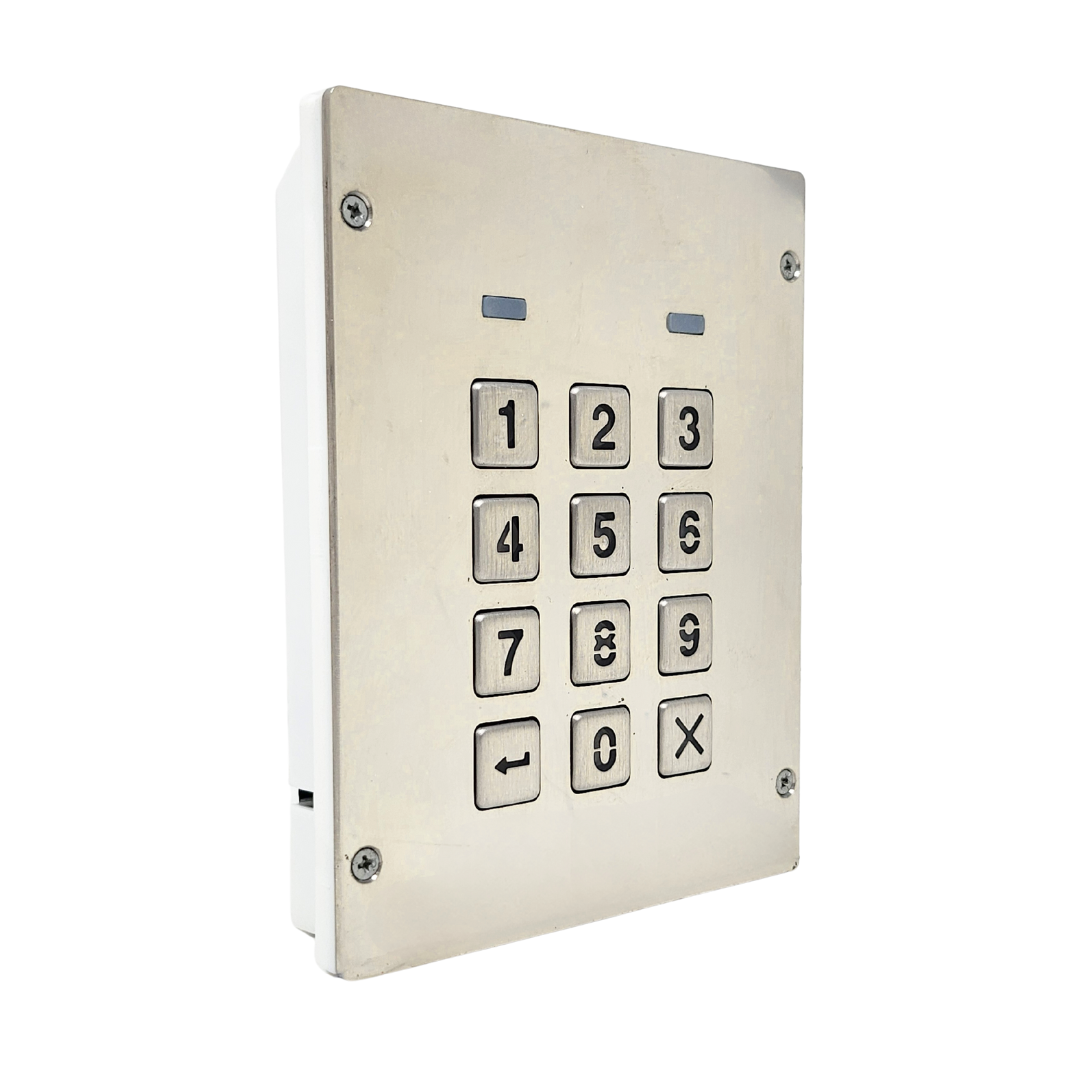

VX8800 8000 series codelock module with 2 codes, 2 relay outputs

Product Code: VX8800

With push to exit button

View more
inc VAT

ADDITIONAL INFORMATION

8000 series coded access module. It has 100 codes and 2 relay outputs with PTE inputs and can be integrated in to all 8000 series audio and video modular systems. Requires housing and psu (12-24V ac or dc).

Codes can be 4-8 digits and relay output times can be programmed for 1-99 seconds or latching.

SPECIFICATION

Specifications:

  • Input voltage: 12-24V AC or DC
  • Power consumption: 2VA
  • Storage capacity: 3 codes
  • Code length: 4 to 8 digit
  • Relay time: 1 to 99 seconds or latching
  • Relays: 2 (C, NO, NC)
  • Relay contacts: 24Vac/dc @ 3A
  • Push to exit inputs: 2

This kit contains:
