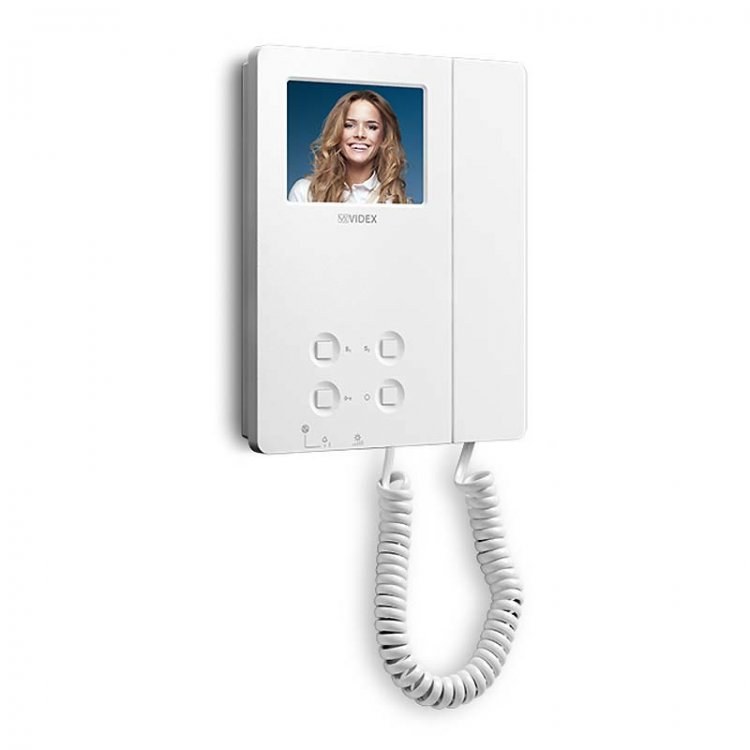

Videx 6256 3.5" colour videophone

Product Code: 6256

The 6256 is a low cost, compact colour videophone for the basic entry level 1 & 2 button videokits including the CVK4K, CVK8K and CVR4KV videokit series.

View more
inc VAT

ADDITIONAL INFORMATION

6200 Series Videophones

A surface mount videophone that is finished in white impact resistant ABS plastics and features a 3.5″ high definition LCD TFT colour display, handset and four tactile buttons for "door open", "camera recall", "privacy ON/OFF" and spare service button. The "door open" and "privacy ON" features are also accompanied by an indication LED.

Adjustments include a set of picture hue, contrast and brightness controls, a 3 level call tone volume switch and microphone volume adjustment trimmer.

The videophone is also compatible with the 62931 desk kit for an easy and practical functional alternative to a wall mount solution.

SPECIFICATION

Features:

  • Surface mount videophone in white impact resistant ABS plastic
  • 3.5" full colour active matrix LCD TFT display
  • Includes 4 buttons for camera recall, door open, service and privacy
    LED's to indicate when "privacy ON" and "door open" functions are activated
  • Programmable number of rings and privacy duration
  • Intercommunication setup via internal dip-switches
  • Adjustable call tone, picture hue and brightness levels
  • Compatible with the 62931 desk kit

Technical

  • System: CVK4K, CVK8K and CVR4KV videokit series
  • Power input: 20Vdc
  • Current consumption: 200mA (max.)
  • Programming: via internal dip-switches (SW1 & SW2)
  • Screen: 3.5″ TFT active matrix LCD
  • Buttons: 4 (door open, camera recall, service, and privacy)
  • Hands-free: No (uses handset and cord)
  • Video type: Balanced video, 1V p-p (V1/V2)
  • LED's: Yes, "door open" and "privacy ON"
  • Wiring: 6 cores, plus 2 cores for local 24Vac psu, 1 additional core required for door open LED
  • Mounting & finish: Surface, white finish
  • Materials: Impact resistant ABS plastics
  • Desk mount: Yes, using the 62931 desk kit
  • Dimensions (mm): 144 (W) x 182 (H) x 27 (D)
