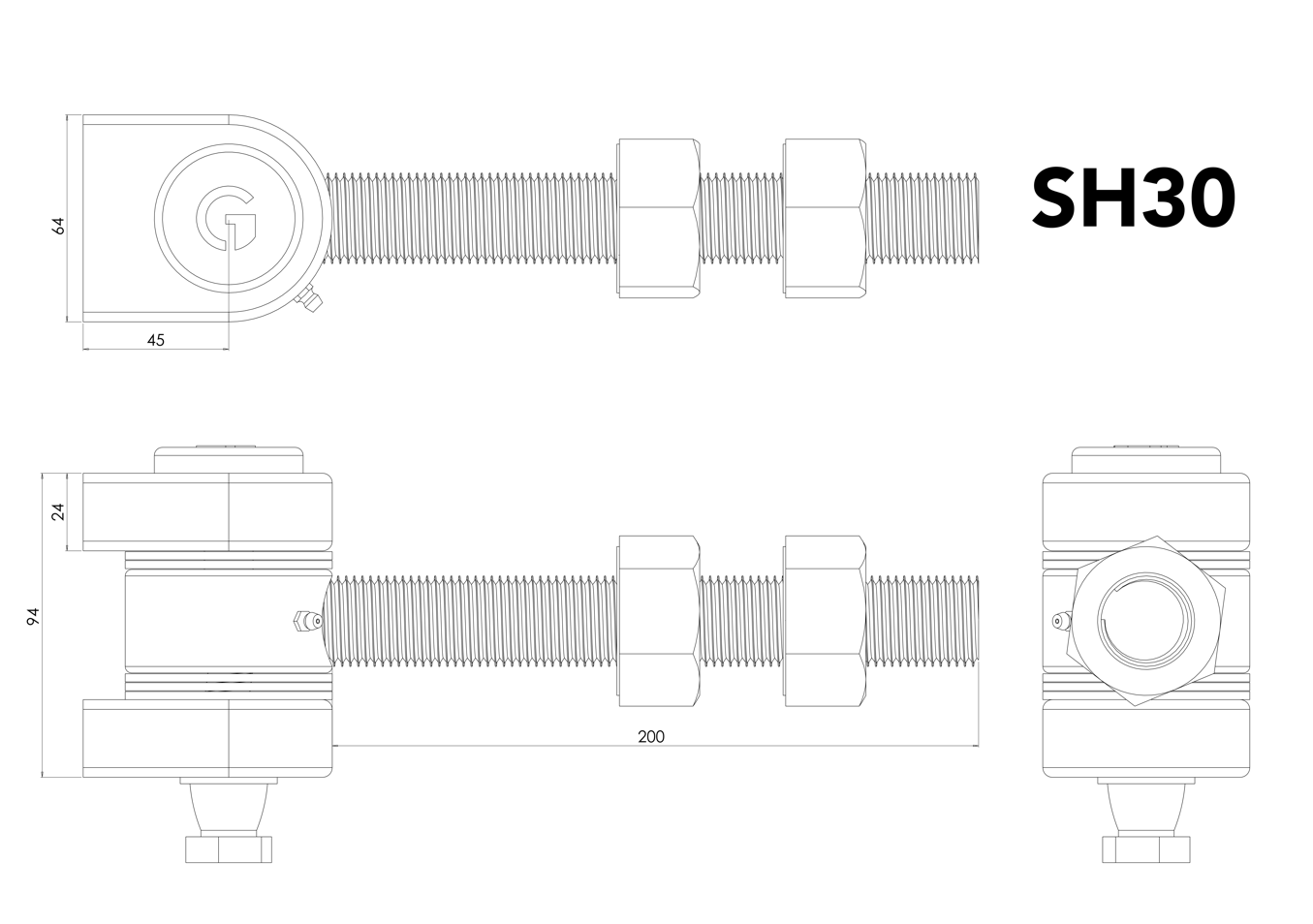

Specification
The Gatemaster Superhinge is one of the most capable and durable gate hinges available on the market today. Engineered for demanding applications, this M30 thread hinge supports gate leaves up to 900kg per pair, making it the go-to choice for heavy industrial gates, high-traffic commercial installations, and automated gate systems. If you are fitting a gate that needs to work reliably day in, day out without constant maintenance, the SH30 is built to deliver exactly that.
The SH30 combines strength, low friction, and minimal maintenance requirements. The brass bearing construction ensures smooth, consistent operation even under heavy load — particularly important on automated gate systems where friction places unnecessary strain on the operator motor.
Key features at a glance:
- Thread size: M30
- Maximum gate weight: 900kg per pair (2 hinges)
- Cycle tested: 500,000 openings with no measurable wear
- Bearing type: Brass bearings for low-friction operation
- Fixing method: Weld-on
- Maintenance: Grease every 6 months
- Suitable for: Metal gates, automated gates, industrial and commercial applications
The 500,000 cycle test figure is worth putting in context. At an average of 25 gate openings per day, that equates to approximately 50 years of reliable service before any significant wear is expected.
At Rolling Center UK, we have been supplying gate hardware to the trade for over 30 years. Whether you are a gate installer, fabricator, or contractor, this is a hinge you can specify with confidence.
Choosing the Right Superhinge Size
The Gatemaster Superhinge range covers four sizes to suit different gate weights:
- SH16 (M16): Up to 150kg per pair
- SH20 (M20): Up to 300kg per pair
- SH25 (M24): Up to 450kg per pair
- SH30 (M30): Up to 900kg per pair
The SH30 is primarily specified for large, heavy fabricated steel gates, double leaf commercial gates, and applications where gate weight is a significant factor. If you are weighing up gate types, our guide on sliding electric gates or swing electric gates covers the key differences.
