Gatemaster BD1030 10-30mm Deadlock
Gatemaster BD1030 10-30mm Deadlock - Image 2
Gatemaster

Gatemaster BD1030 10-30mm Deadlock

Product ID: BD1030

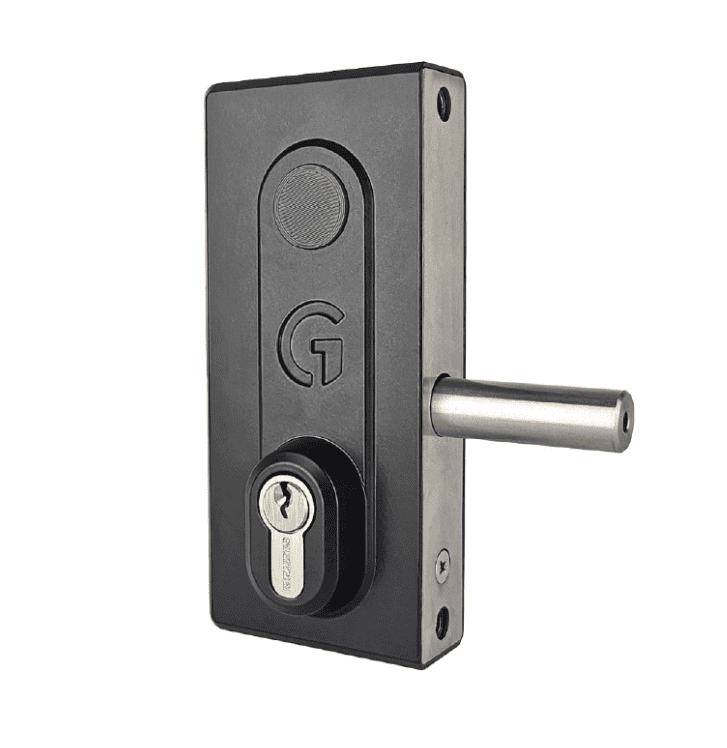

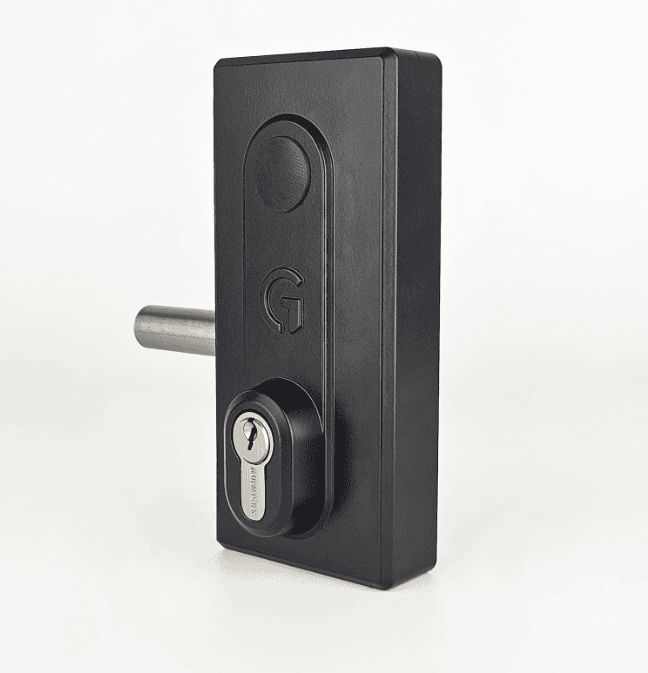

The Superlock Bolt on deadlock is supplied without handle for 10-30mm gate frame. The deadlock can only be operated by key for opening and closing.

5-Year Warranty Included on Superlock 2.0 locks from Gatemaster.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £17.12 per month with iwocaPay.

Learn more about Iwoca here…

£51.35

ex. VAT

£61.62 inc. VAT
+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

The Superlock bolt on deadlock can be used for universal handing, left or right handed gates.

Now made in stainless steel, the slim 70mm wide lock case along with adjustable and removable deadbolt ensure easy fitting to gates. No awkward cutting around the casing, easy to bolt into place.

The simple deadlock action means the gate remains open until key is turned and locked.

Supplied with bolt support plate.

Specification

Instructions

1. Drill 2 x 9mm (3/8″) holes at 140mm (5 1/2″) centres for fixing bolts provided.
2. Drill a second 18mm clearance hole for the deadbolt at 60mm (2 3/8″) centres up from the bottom fixing hole.
3. Hold the lock against the back of the box section and screw the deadbolt through the middle hole.
4. Lock the deadbolt with the hex key supplied by inserting the hex key into the end of the deadbolt.
5. Fix lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the deadbolt moves freely.
6. Maintenance -Every 6 months, lubricate the deadbolt with light oil.

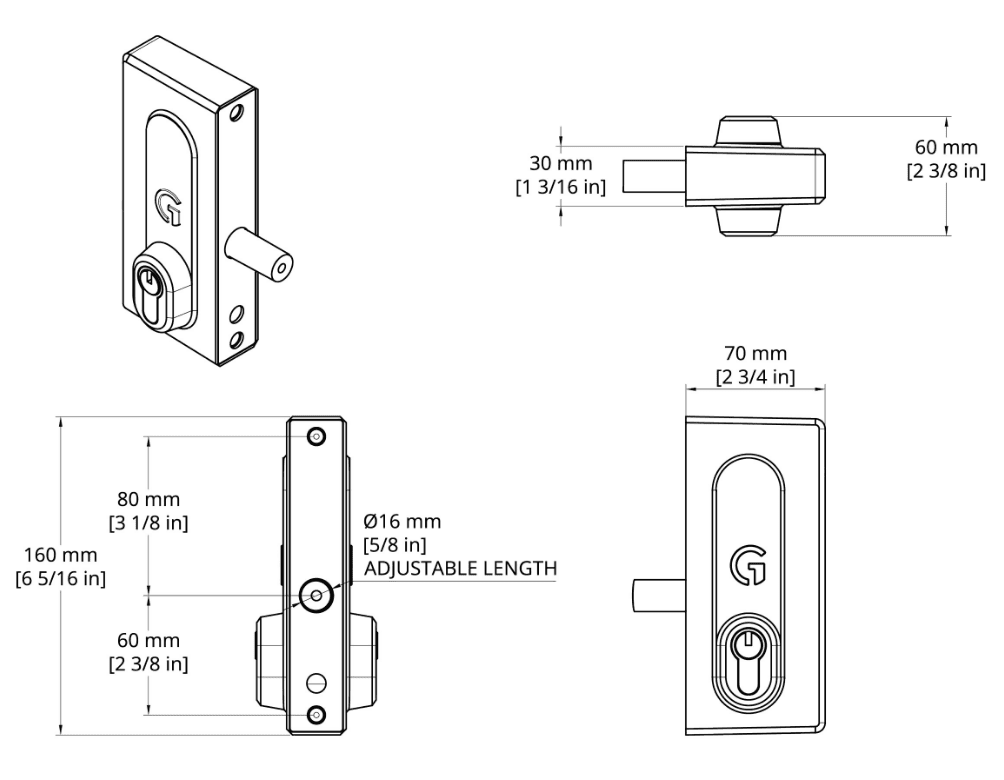

Specification Imagery

Product Contains

Face plate
A set of keys x3
M8 fixing bolts
Deadbolt
Keep plate (self-drilling fasteners)
