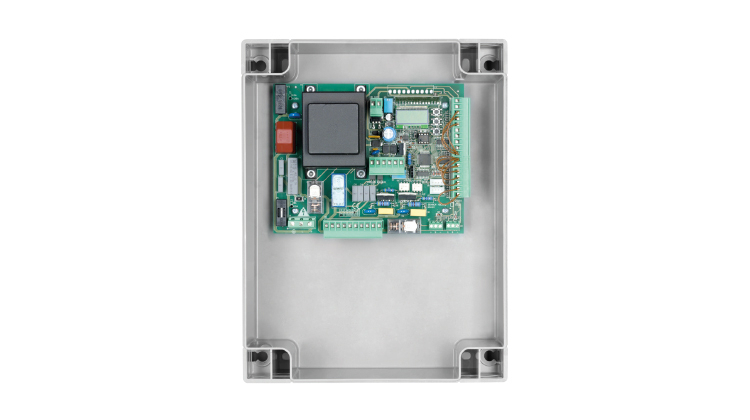

Product ID: BRAINY
• Built-in LCD display
• Built-in 433.92 MHz 64 codes and 3 codes radio receiver (programmable code, rolling code, ARC)
• Removable terminal blocks
• Encoder input for obstruction detection
• Separate limit switch inputs for each motor
• Open, close and pedestrian inputs
• Open-close and close photocell inputs
• N.C. or 8K2 safety edge input
• Output for 230 Vac and 12 Vac/dc electric lock
• Gate open indicator light output, service light, second radio channel and test photocells
• Autoset operating parameters with encoder equipped motors
• Electronic adjustment of individual couple for each motor and working times
• Electronic decelerations
• Optional parameter configuration and remote control management using the Advantouch system
• Number of manoeuvres
• Programming access password
• Maintenance reminder
£206.40
Based on over 250 reviews
40 years experience in the industry
For over 22 years
To receive our best prices on thousands of automation, access control and safety products.
APPLICATION
1 or 2 actuators for swing gates, opposing sliding, hydraulic operators, and industrial folding doors
CONTROL PANEL POWER SUPPLY
230 Vac
MOTORS POWER SUPPLY
230 Vac 600W + 600W
MAIN FUNCTIONS:
• Built-in LCD display
• Built-in 433.92 MHz 64 codes and 3 codes radio receiver (programmable code, rolling code, ARC)
• Removable terminal blocks
• Encoder input for obstruction detection
• Separate limit switch inputs for each motor
• Open, close and pedestrian inputs
• Open-close and close photocell inputs
• N.C. or 8K2 safety edge input
• Output for 230 Vac and 12 Vac/dc electric lock
• Gate open indicator light output, service light, second radio channel and test photocells
• Autoset operating parameters with encoder equipped motors
• Electronic adjustment of individual couple for each motor and working times
• Electronic decelerations
• Optional parameter configuration and remote control management using the Advantouch system
• Number of manoeuvres
• Programming access password
• Maintenance reminder
