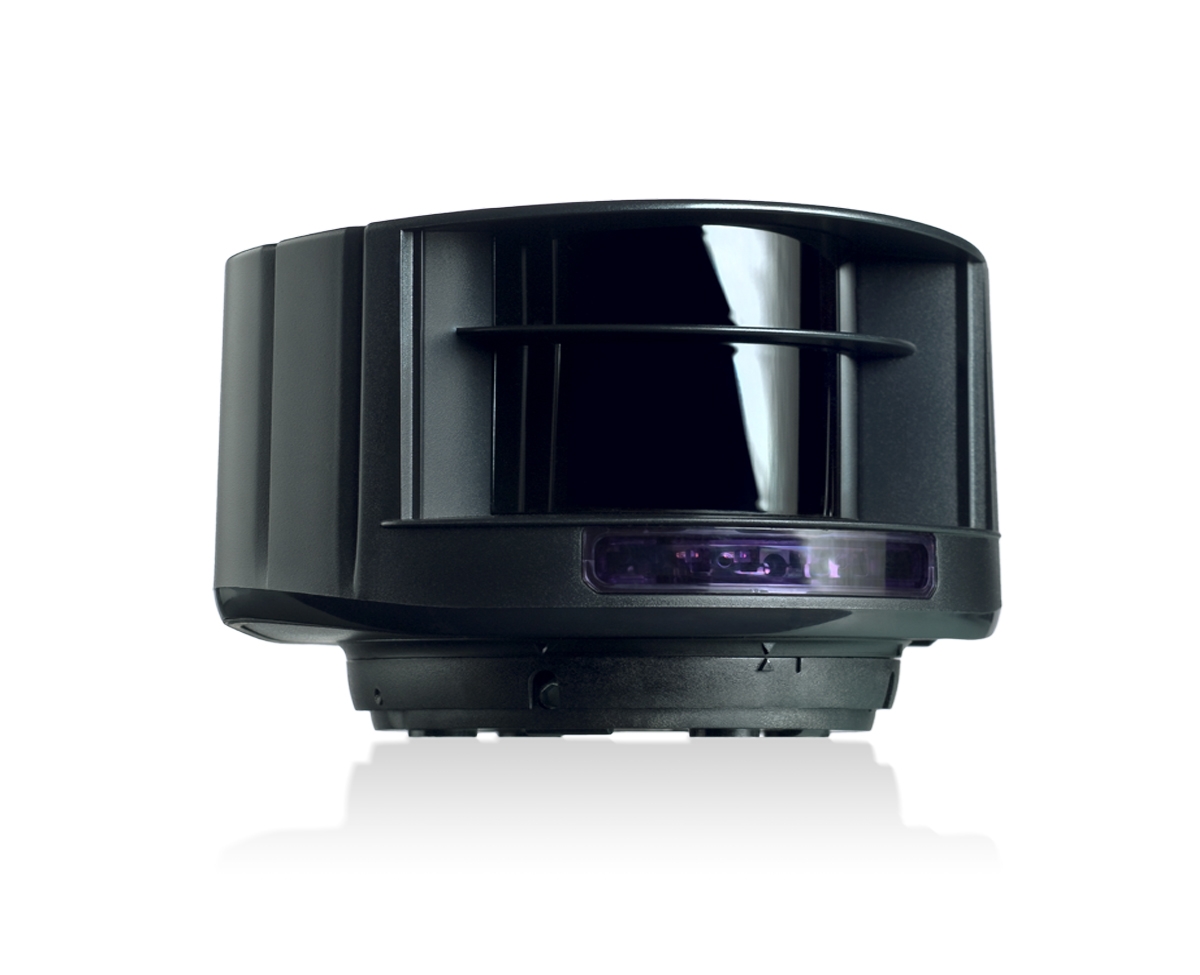

BEA LZR H100 Laser safety scanner for barriers
BEA

BEA LZR H100 Laser safety scanner for barriers

Product ID: BEALZRH100

The BEA LZR-H100 laser safety scanner offers a real alternative to induction loops: time gain during installation, detection of all types of vehicles and greater adaptability. This laser sensor for rising barriers is used to open, secure and/or detect a presence.

It offers great flexibility in defining the width and depth of the detection zones (max detection field of 9.9 m x 9.9 m).

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £233.33 per month with iwocaPay.

Learn more about Iwoca here…

£700.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Specification

TECHNOLOGY:

laser scanner, time-of-flight measurement (4 laser curtains)

DETECTION MODE:

motion and presence

MAX. DETECTION RANGE:

9.9 m x 9.9 m

REMISSION FACTOR:

> 2 %

ANGULAR RESOLUTION:

0,3516 °

EMISSION CHARACTERISTICS

IR laser: wavelength 905 nm; max. output pulse power 75 W (CLASS 1)
Visible laser: wavelength 650 nm; max. output CW power 3 mW (CLASS 2)

SUPPLY VOLTAGE:

10-35 V DC @ sensor side

POWER CONSUMPTION:

< 5 W

PEAK CURRENT AT POWER-ON:

1.8 A (max. 80 ms @ 35 V)

CABLE LENGTH:

5 m (standard), max.: 10 m

RESPONSE TIME
MOTION DETECTION:
PRESENCE DETECTION:

typ. 200 ms (adjustable)
typ. 20 ms; max. 80 ms

OUTPUT:
MAX. SWITCHING VOLTAGE:
MAX. SWITCHING CURRENT:
SWITCHING TIME:
OUTPUT RESISTANCE:
VOLTAGE DROP ON OUTPUT:
LEAKAGE CURRENT:

2 electronic relays (galvanic isolated – polarity free)
35 V DC / 24 V AC
80 mA (resistive)
tON=5 ms; tOFF=5 ms
typ 30 Ω
< 0.7 V @ 20 mA < 10 μA

INPUT:
MAX. CONTACT VOLTAGE:
VOLTAGE THRESHOLD:

1 optocoupler (galvanic isolated – polarity free)
30 V DC (over-voltage protected)
Log. H: >8 V DC; Log. L: <3 V DC

LED-SIGNAL:

1 blue LED: power-on status
1 orange LED: error status
2 bi-coloured LEDs: detection/output status (green: no detection; red: detection)

DIMENSIONS:

125 mm (D) x 93 mm (W) x 70 mm (H) (with mounting bracket + 14 mm)

MATERIAL:

PC/ASA

COLOUR:

black

MOUNTING ANGLES ON BRACKET:

-45 °, 0 °, 45 °

ROTATION ANGLES ON BRACKET:

-5 ° to +5 ° (lockable)

TILT ANGLES ON BRACKET:

-3 ° to +3 °

PROTECTION DEGREE:

IP65

Manuals

BEA LZR H100 ManualBEA LZR H100 Datasheet
