Akuvox R20KS Silver Surface mount IP Video Intercom with keypad

Product ID: R20KS

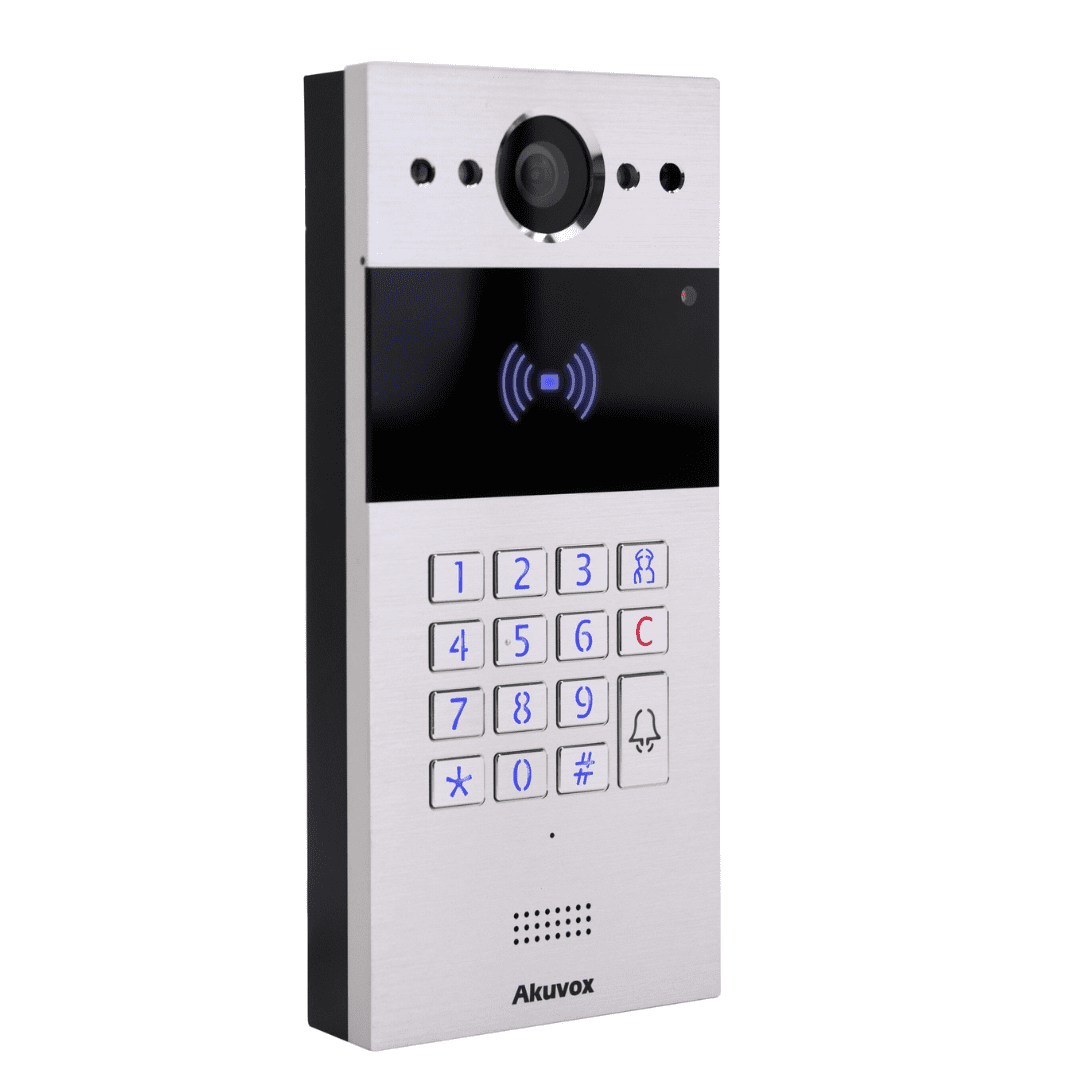

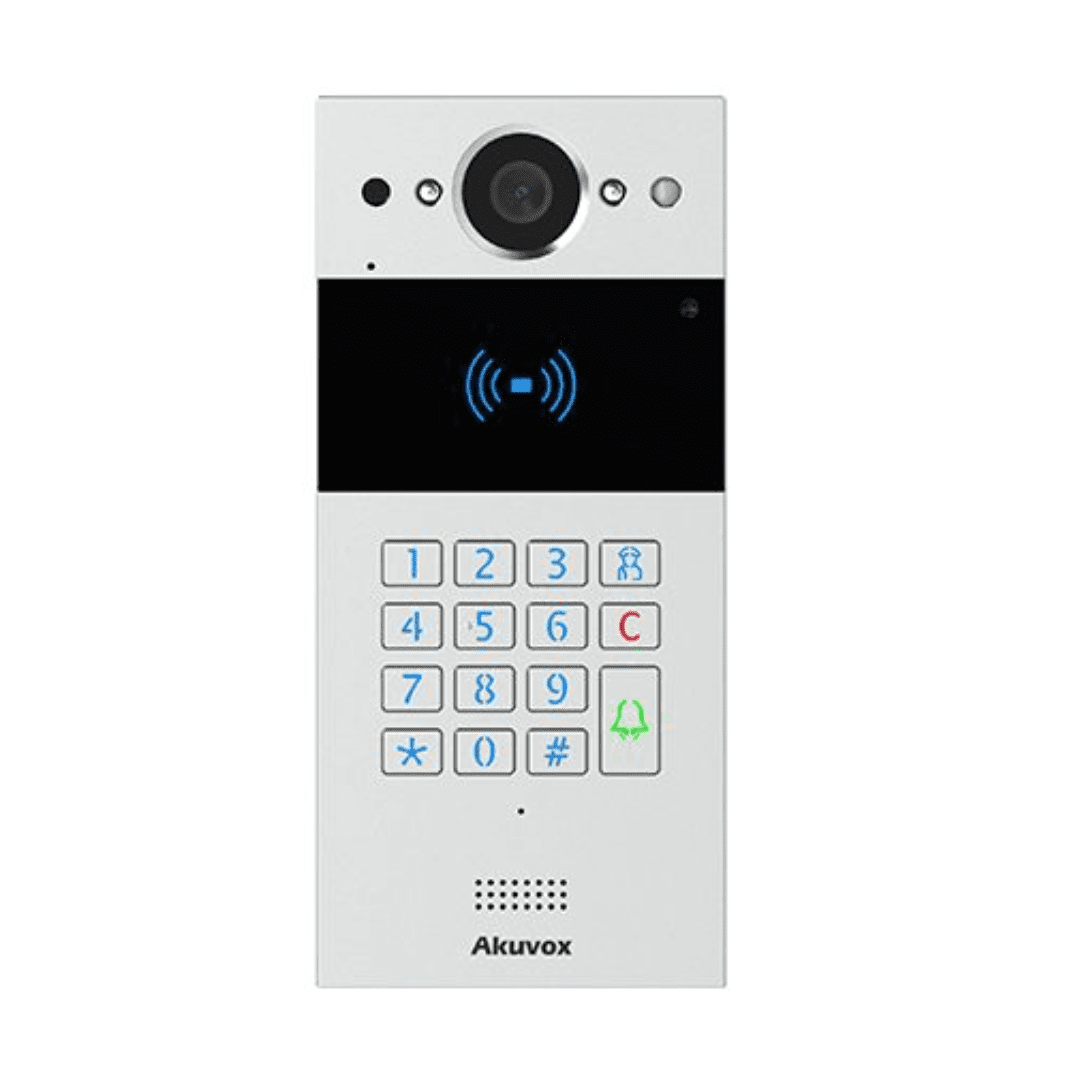

The R20KS is a silver-finish, surface-mounted, 1-button, IP-connected video door intercom. It features a numeric keypad, 2MP high-resolution colour camera, an RFID card reader and NFC contactless via smartphone.

Using the latest IP connectivity technology, Akuvox R20KS intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs. The built-in NFC allows for contactless and secure access using NFC-enabled smartphones.

PoE switch not included; must be sourced separately.

Learn more about Iwoca here…

£371.00

ex. VAT

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Additional Information

If purchasing the Akuvox R20K intercom without any internal monitor, an Akuvox cloud subscription is required at an additional yearly cost. However with any monitor there are no licence costs and free app usage for life with no ongoing costs. The internal monitor is sold separately and available as a 7-inch S562 or 10-inch S567 model.

Programming and configuration of the intercom can be done on the web http://ecloud.akuvox.com or installation app.

IP65 protection rating allows for internal and external locations.

Integrated RFID Card Reader
NFC contactless via Smartphone
IP65 protection rating
Numeric keypad
Wide-angle camera: 110°
High resolution video: 1080p
Complies with SIP standard for easy integration in every SIP capable PBXs
Complies with ONVIF standard for easy integration with any network surveillance system
Wide Dynamic Range for improved low light performance

Specification

Description	R20KS
Water-proof & Dust-proof protection rating	IP65
Camera	2M pixels, with automatic lighting
RFID Card Reader	13.56MHz & 125kHz
Video Codec	H.265 & H.264
Low image light performance	Digital Wide Dynamic Range
Body Material	Aluminium Alloy
Buttons	15 Key Numeric Keypad
Relays	2
Inputs	2
Power Requirements	PoE or 12v DC
PoE	(IEEE802.3af, Power-over-Ethernet)
Installation	Surface mounted (Back box included)
Dimensions	185(H) x 85(W) x 24(D) mm
Dimensions (incl bracket)	185(H) x 85(W) x 31(D) mm
Weight (Net)	1.20kg
Weight (Gross)	1.80kg
Wiegand port	1ch input/output (selectable)
Ethernet port	RJ45, 10/100Mbps adaptive
Working temperature	-30°C ~ +60°C
Users	5000
Proximity Card	25000
Keypad codes	5000
Proximity card type	EM, Mifare, DesFire (EV1,EV2,EV3)
Web management portal
