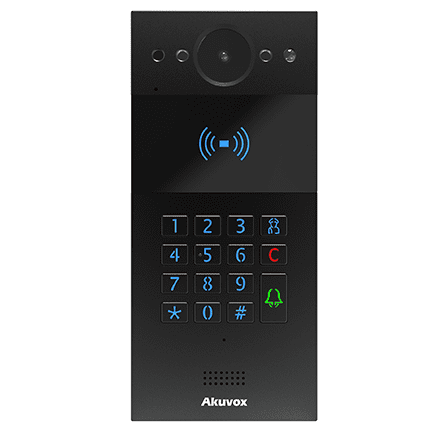

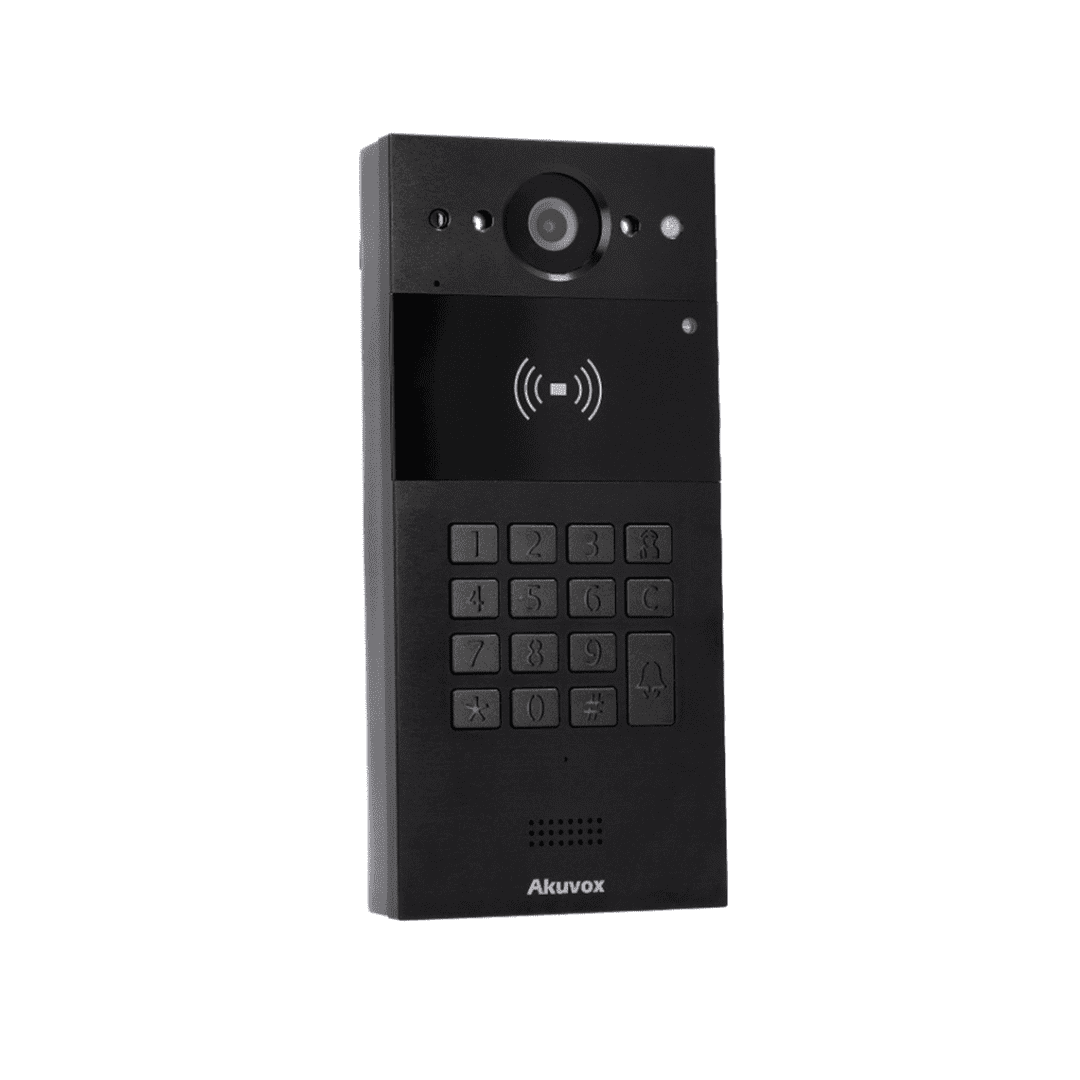

Akuvox R20KS Black Surface mount IP Video Intercom with keypad
Akuvox R20KS Black Surface mount IP Video Intercom with keypad - Image 2

Akuvox R20KS Black Surface mount IP Video Intercom with keypad

Product ID: R20KS-DRK

The R20KS-DRK is a black finish, surface-mounted, 1-button, IP-connected video door intercom. It features a numeric keypad, 2MP high-resolution colour camera, an RFID card reader and NFC contactless via smartphone.
Using the latest IP connectivity technology, Akuvox R20KS intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access.
The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs. The built-in NFC allows for contactless and secure access using NFC-enabled smartphones.
PoE switch not included; must be sourced separately.
View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £123.67 per month with iwocaPay.

Learn more about Iwoca here…

£371.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

If purchasing the Akuvox R20K intercom without any internal monitor, an Akuvox cloud subscription is required at an additional yearly cost.  However with any monitor there are no licence costs and free app usage for life with no ongoing costs. The internal monitor is sold separately and available as a 7-inch S562 or 10-inch S567 model.

Programming and configuration of the intercom can be done on the web http://ecloud.akuvox.com or installation app.

IP65 protection rating allows for internal and external locations.

  • Integrated RFID Card Reader
  • NFC contactless via Smartphone
  • IP65 protection rating
  • Numeric keypad
  • Wide-angle camera: 110°
  • High resolution video: 1080p
  • Complies with SIP standard for easy integration in every SIP capable PBXs
  • Complies with ONVIF standard for easy integration with any network surveillance system
  • Wide Dynamic Range for improved low light performance

Specification

Description R20KS
Water-proof & Dust-proof protection rating IP65
Camera 2M pixels, with automatic lighting
RFID Card Reader 13.56MHz & 125kHz
Video Codec H.265 & H.264
Low image light performance Digital Wide Dynamic Range
Body Material Black Aluminium Alloy
Buttons 15 Key Numeric Keypad
Relays 2
Inputs 2
Power Requirements PoE or 12v DC
PoE (IEEE802.3af, Power-over-Ethernet)
Installation Surface mounted (Back box included)
Dimensions 185(H) x 85(W) x 24(D) mm
Dimensions (incl bracket) 185(H) x 85(W) x 31(D) mm
Weight (Net) 1.20kg
Weight (Gross) 1.80kg
Wiegand port 1ch input/output (selectable)
Ethernet port RJ45, 10/100Mbps adaptive
Working temperature -30°C ~ +60°C
Users 5000
Proximity Card 25000
Keypad codes 5000
Proximity card type EM, Mifare, DesFire (EV1,EV2,EV3)
Web management portal

Manuals

Akuvox R20K-DRK IP DatasheetAkuvox R20K Manual
