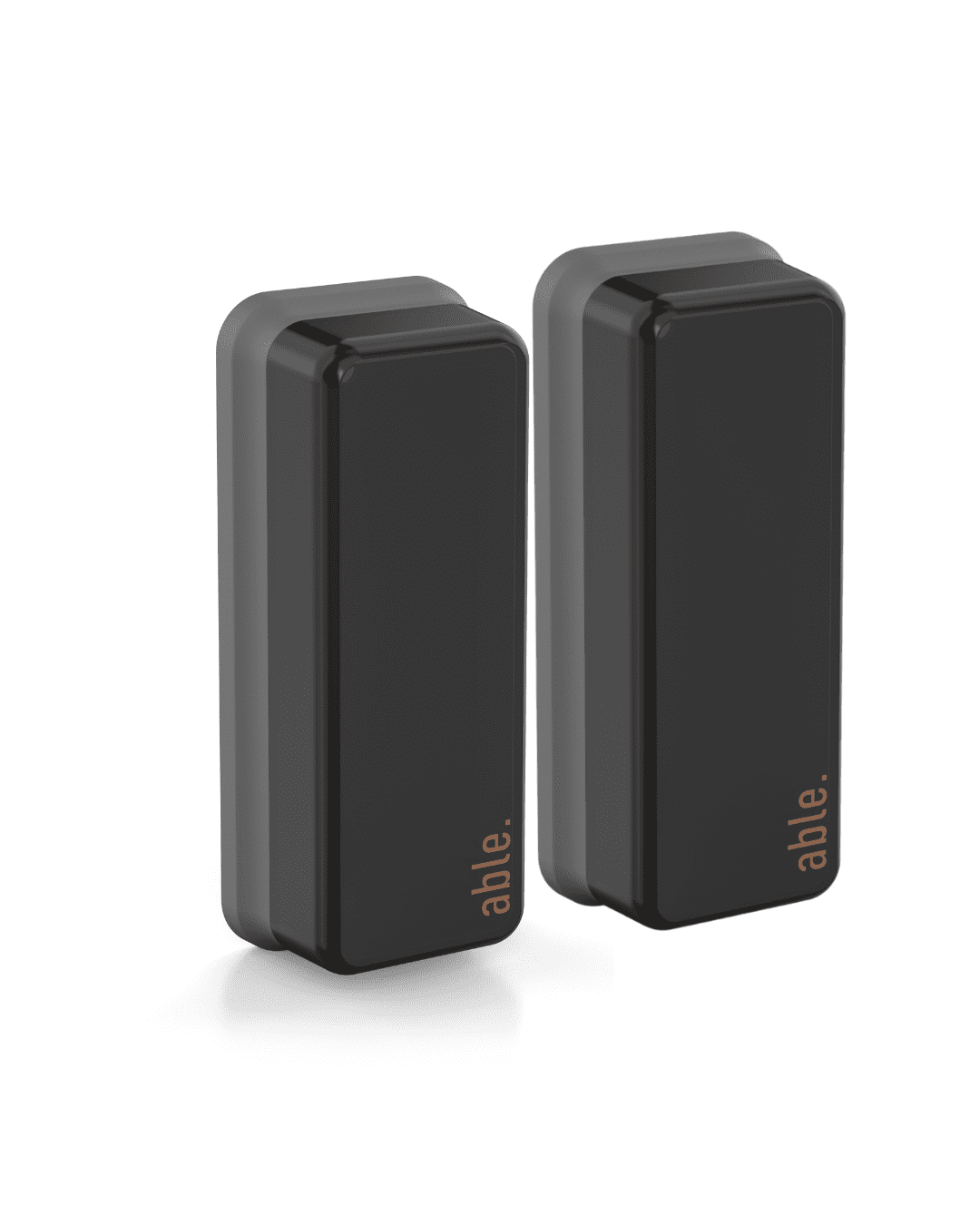

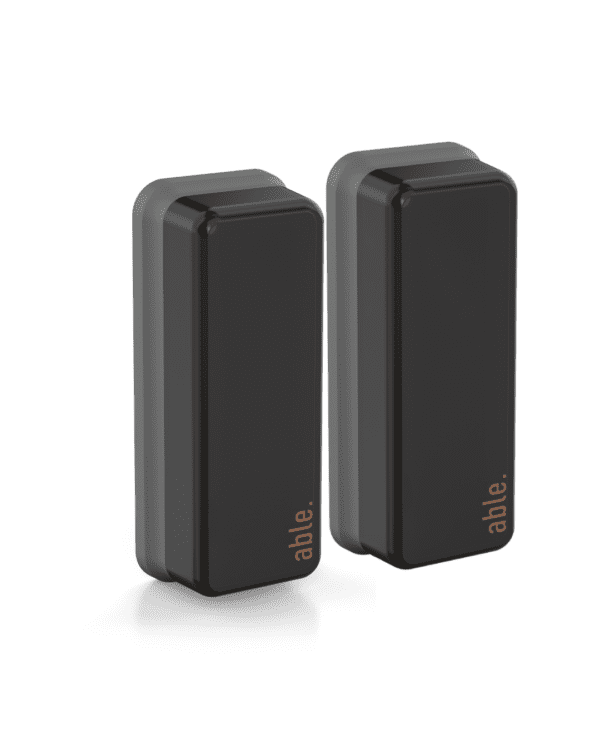

ABLE V2 13Y005 PX L 180 24 WL 180 Degree photocell pair Wireless
ABLE V2

ABLE V2 13Y005 PX L 180 24 WL 180 Degree photocell pair Wireless

Product ID: 13Y005

ABLE V2 Wireless Synchronised adjustable Wireless photocell pair. 180 degree horizontal and 30 degree vertical axis adjustment.

AA Batteries supplied with the photocells for the transmitter side.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £24.62 per month with iwocaPay.

Learn more about Iwoca here…

£73.85

ex. VAT

£88.62 inc. VAT
+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

• Possibility to connect a resistive or traditional safety edge on the transmitter: when the edge activates, the transmitter stops the transmission
• Ability to set two different transmission codes to simultaneously use two pairs of photocells without mutual interference
• Automatic signal detection slow down in the event of snow to avoid undesired activations caused by the fall of the flakes
• Maximum range adjustment on two levels
• Led to simplify the tuning of the system
• Led to indicate when the battery is low

Specification

Optical range : 20 m

Dimensions : 115x41x38 mm

Power supply RX (VIN – GND) : 12÷24 Vac / 15÷36 Vdc

Power supply TX : 2 Batteries 1.5v AA

Signal : infrared modulated 2 KHz l = 940 nm

Relay contact : 1A max 30 VDC

Absorption (VIN = 24Vdc) : TX 30/100 µA (DIP 4) RX 20 mA

Operating temperature : -20° + 60° C

Protection degree : IP54

Manuals

ABLE V2 13Y005 Manual
