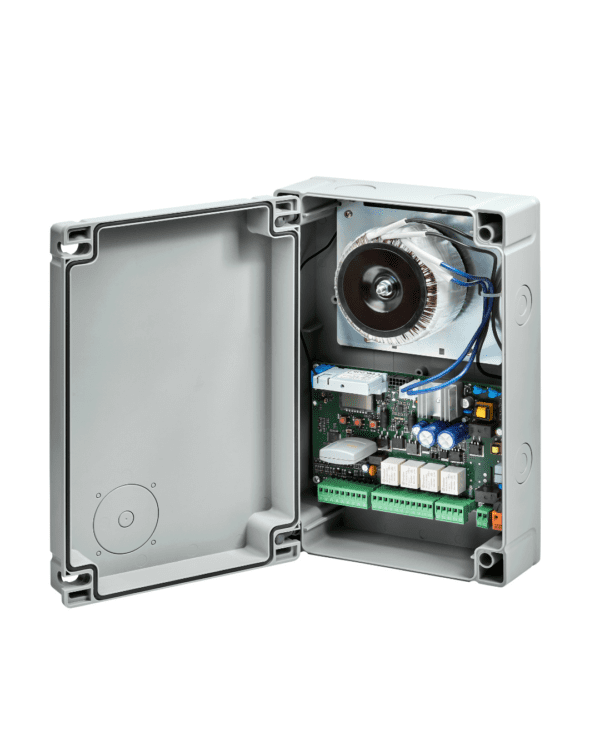

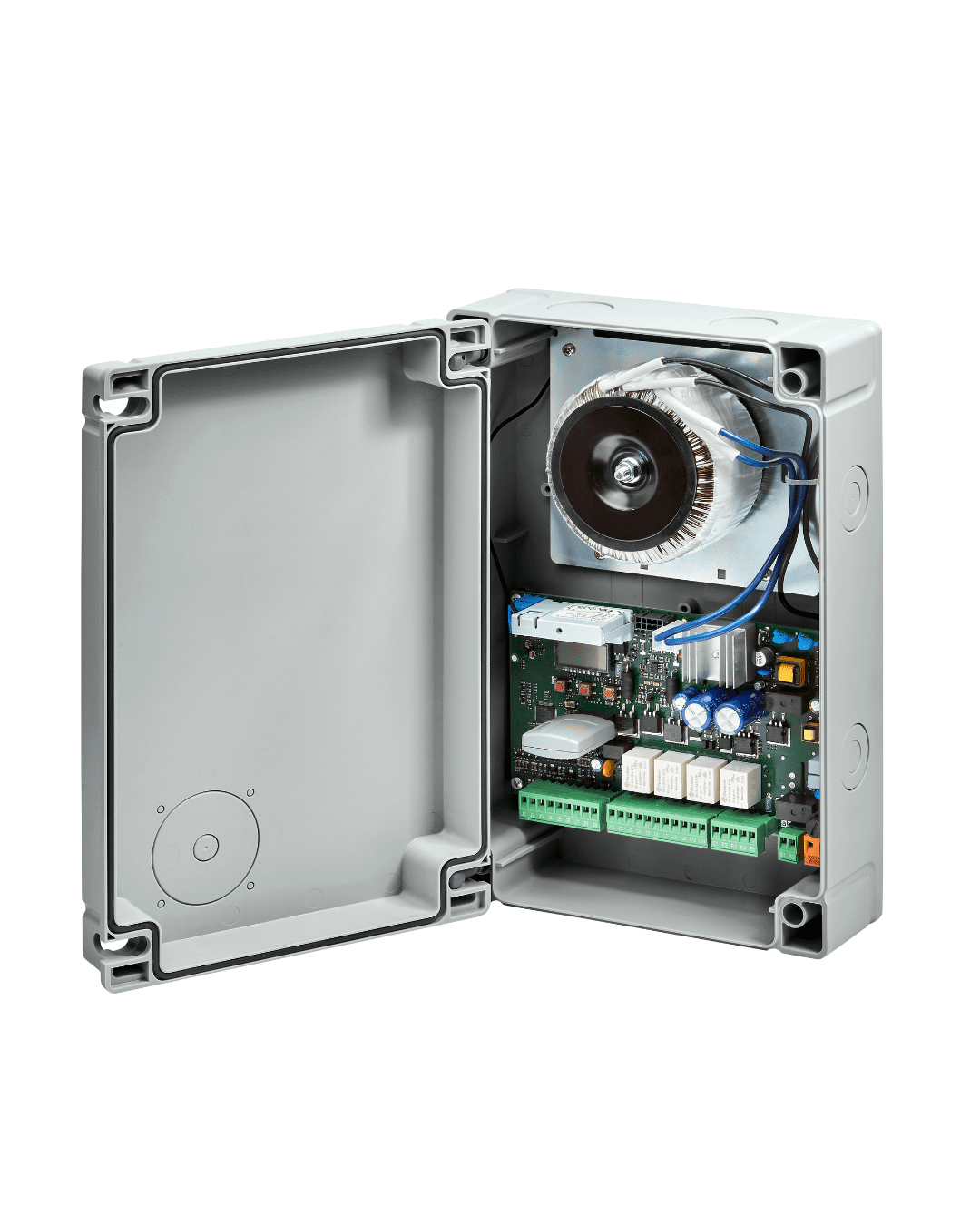

ABLE V2 12Y002 24v EVO2 Control panel and enclosure

CX EVO2 is provided with a display that, not only makes programming simple, but also allows a continuous monitoring of the input statuses; in addition, thanks to a menu structure, the working schedule and the operation logic can be set easily.

• Power supply protected from short circuits within the controller, on the motors and on the connected accessories
•  Adjustment of the power by partialising the current
•  Detecting obstacles by monitoring the current on the gate motors (using a current sensing probe)
• Automatic learning of the operation time and positions.
• Tests for safety devices (photocells, safety ribbons and mosfet) before each opening.
• Deactivation of safety inputs through the configuration menu: no jumper is required for terminals concerning safety devices that have not been installed, yet. You will only need to disable this function from its relevant menu.
• The device can operate without mains power, by using the optional battery back up pack (code 16Y016).
• Low voltage output that can be used for a signal light or a 24 V FX Flash flashing light.
• Auxiliary relay with programmable logic for courtesy light, flashing light or other use.
• Automatic shutdown of all peripherals when the control unit is not operating the gate, to keep the power absorbed in stand-by below 500 mW. Compliant with new standby ecodesign regulation EU 2023/826
