Ipvk 1 S 6296

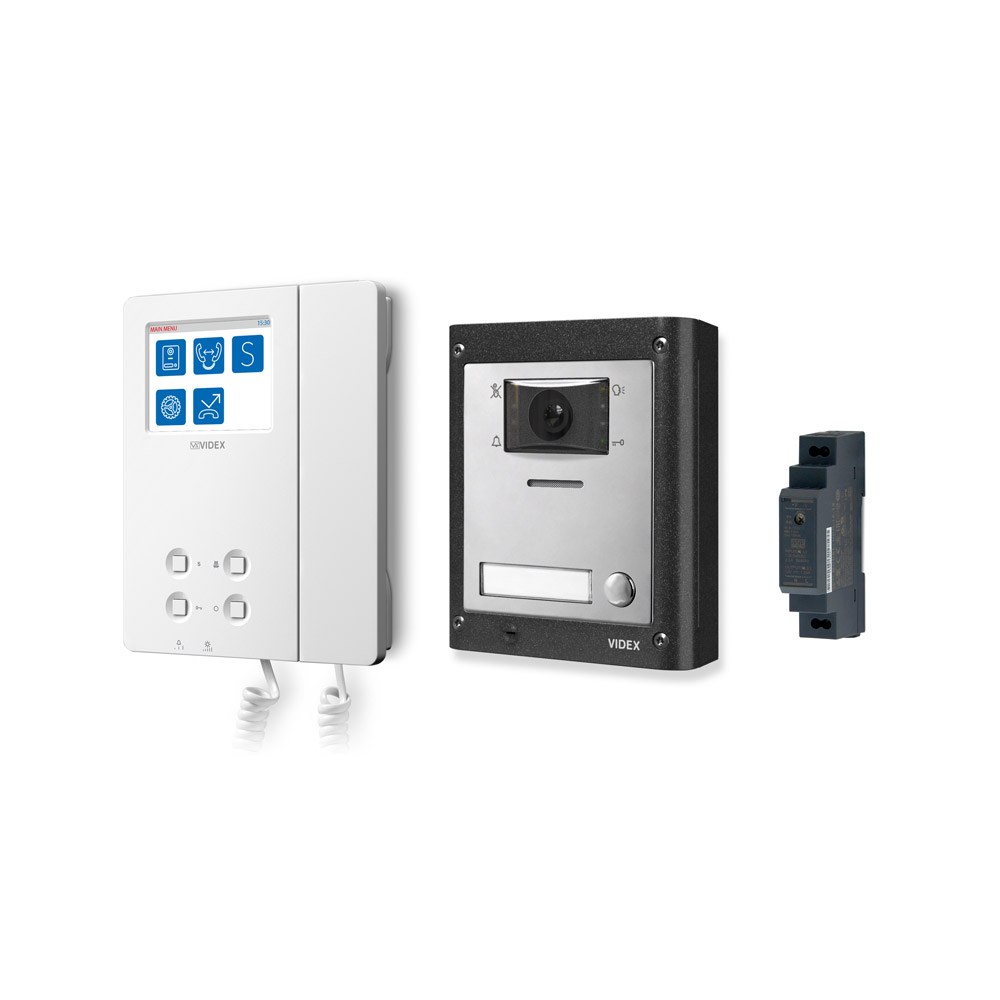

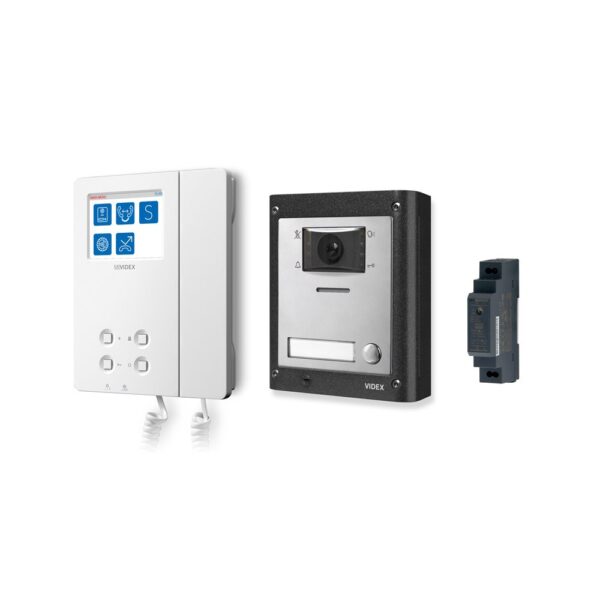

Videx IVPK-1S one station IP video intercom without keypad

Product Code: IPVK-1S

Introducing a new range of IP intercom products for communication via a Local Area Network (LAN). Using cloud services, communication via Wi-Fi or across the internet can also be achieved with the use of tablets or smartphones running the Videx CloudNected App. The system is also available as a kit which includes the entrance panel, videophone and power supply.

View more
inc VAT

ADDITIONAL INFORMATION

The 4000 Series modular entrance panel can be expanded from 1 up to 42 call buttons and include any of the extensive range of 4000 Series modules available. It can be surface or flush mounted and is available in a number of finishes and panel sizes.

Vandal Resistant entrance panels are manufactured from 12 gauge 316 grade stainless steel and can be expanded from 1 up to 40 call buttons. Bespoke vandal resistant panel sizes are also available upon request.

All entrance panels include a wide angle colour camera, call progress LED’s and an input for a second camera. There are two relay outputs and two free inputs which can be used for a variety of functions such as door/gate release and activation of auxiliary functions.

The videophone is in the popular 6200 series design and incorporates a 3.5” touch screen display for both viewing visitors and navigating the function menus. The videophone is wall mountable and an optional desk kit is also available. Power options include POE or a 12Vdc power supply, additional input/outputs are included for auxiliary functions.

Additional system features include a call log with picture capture of the caller, intercommunication between devices in the same apartment or others and up to 16 videophones per apartment.

SPECIFICATION

Features:

  • Call progress LED's (4: call, busy, speak and door open)
  • Expandable up to 42 call buttons (4000 series modular)
  • Expandable up to 40 call buttons (vandal resistant series)
  • Communication via LAN or private network and across a public network (internet) using the Videx CloudNected App
  • Videx CloudNected App available for tablets and smartphones
  • 2x relay outputs and 2x PTE inputs
  • External Camera input
  • Wide angle camera as standard
  • 3.5" 6200 series colour videophone with touch screen display and OSD menus
  • POE or 12Vdc powered videophone
  • RJ45 ethernet connection on the videophone
  • Programmable buttons
  • Up to 16 internal videophones per apartment with intercommunication facility
  • Call log feature with picture capture facility


Technical:

  • Connection method: LAN, private network or public network (internet)
  • Relay outputs: 2x dry contacts, (C, NO, NC)
  • PTE inputs: 2
  • Power supply: POE or 12Vdc for 6296 videophone, 12Vdc for Speaker/Camera module
  • RS485 connection: Yes (A, B, 0V)
  • Event logging: Yes
  • PSU model: HDR-15-12 slim line psu
  • Speaker/Camera module: 4533
  • Expandable to 40 buttons
  • Videx CloudNected App: Yes (Android and iOS app for tablets and smartphones)
