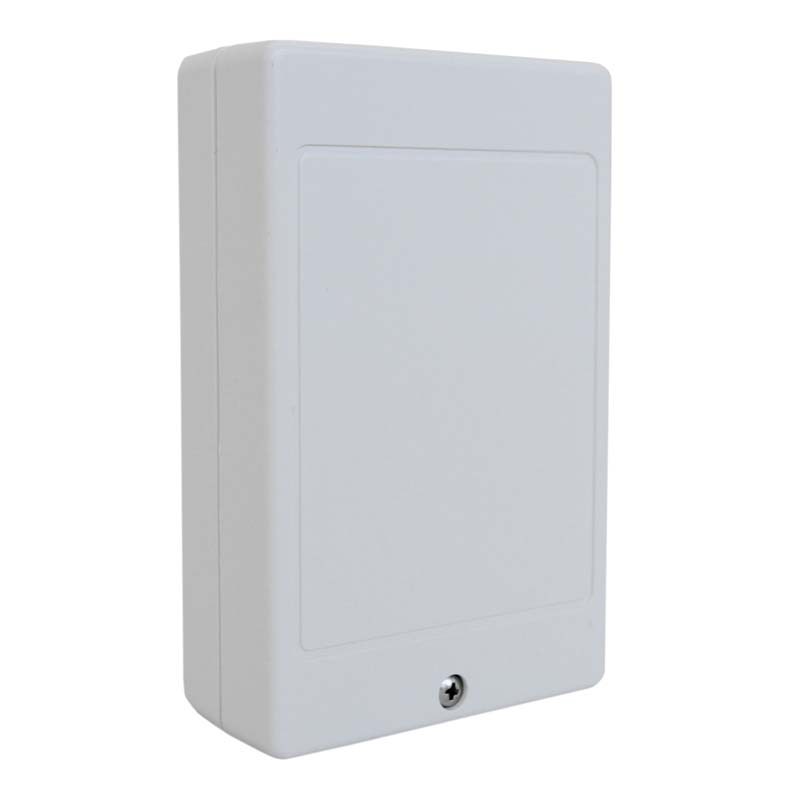

Videx 316 balanced video 4 way distributor
Product Code: 316
4 way non-coaxial video splitter is for all non coaxial (Balanced video) video systems.
View more
Rated 4.8/5 on Google based on 130+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
4 way non-coaxial video splitter is for all non coaxial (Balanced video) video systems. There are four outputs to videophones, an input and a loop through to the next video splitter. This device can be fitted in a cabinet or mounted on a Model 2204N PCB.
SPECIFICATION
- Balanced video outputs: 4
- Input voltage: 20Vdc
- Dimensions: 110mm(W) x 70mm(H) x 30mm(D)
- End of line termination required: Yes 75 Ohm between both balanced outputs and 0V
- Unused outputs require termination: No
MANUALS
Sorry, there are no manuals available for this product.
