Minikit3

Mini Kit 3 silent kit for gates up to 6m opening and 450kg in weight (1x6m)

Product Code: MINIKIT3

For gates up to 6m clear opening and up to 450kg in weight with 35% less noise than standard cantilever systems.

Supplied with 1 x 6m galvanised track.

View more
inc VAT

Related Products (3)

inc VAT

ADDITIONAL INFORMATION

Cantilever kit for clear gate openings up to 6m and up to 450kg in weight with 35% less noise with silent cantilever systems than standard. The super silent carriages use MAPAR wheels which reduce rolling noise in comparison to traditional carriages. The lightness of MAPAR wheels means a low rolling strength and a lower level of energy needed to move the gate.

Silent cantilever gate systems are widely used in both commercial, public sector and residential environments due to the many benefits that they offer over the traditional sliding gate such as: * no track to lay into the ground. * limited ground work required * Reduced cost of labour
* Lower maintenance
* Capable of intensive use * Sleek finish
System capable of carrying cantilevered gates up to 4m clear opening / 450kg max gate weight.

SPECIFICATION

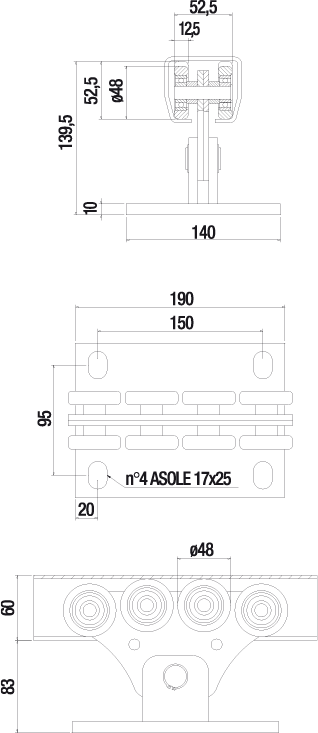

Silent P Carriage DrawingSilent P TableMini Meeting Point DrawingMini Meeting Point TableMini Support Wheel DrawinMini Support Wheel TableMini Track DrawingMini Track Table

MANUALS

Sorry, there are no manuals available for this product.

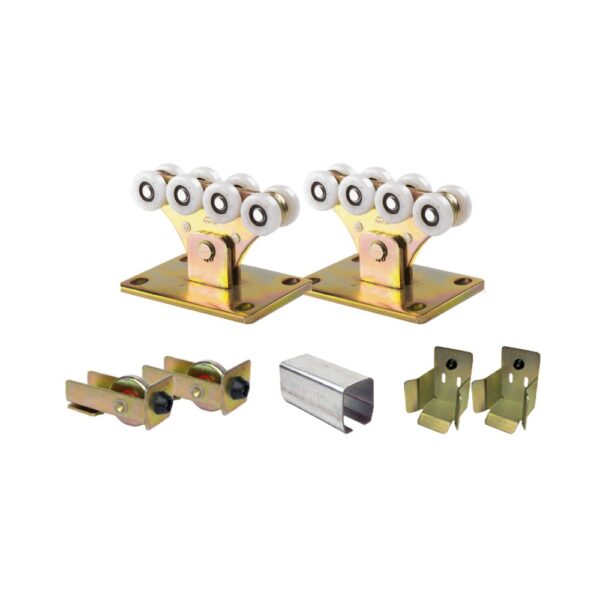

This kit contains:

  • 2x SILENT P mini silent 8 wheeled carriages
.

    Mapar wheels.

  • 2x 50B meeting points. 235 structural grade steel, galvanised finish.
  • 2x 41BS mini support wheels
 with plate. S235 structural grade steel body and case-hardened C45 carbon steel roller bearing, galvanised finish.
  • 1x 6m GIPI 4 RPZ6 track. S280GD structural grade steel

OPTIONAL ACCESSORIES

Dima fixing template
Dima fixing template
inc. VAT
PF/B mini cantilever carriage fixing kit
PF/B mini cantilever carriage fixing kit
inc. VAT
47 1m galvanised slotted gear rack
47 1m galvanised slotted gear rack
inc. VAT
