AES EL00M-K E-Loop domestic kit with 50 transceiver for exit mode

Product Code: EL00M-K

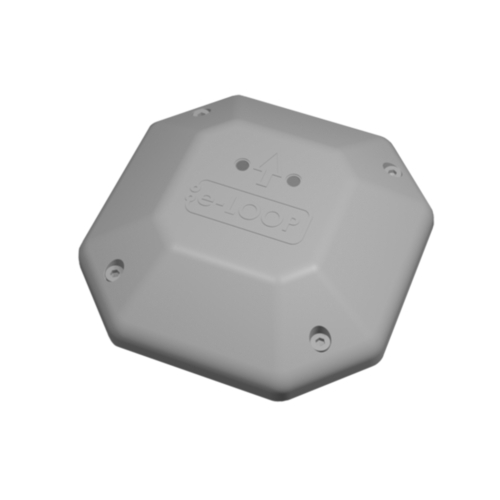

The e-Loop Mini is a simple domestic bolt-in replacement for automatic vehicle detection systems for exit mode only with 50 Transceiver. Manage access for multi-unit complexes with up to 50 units.

View more
inc VAT

ADDITIONAL INFORMATION

All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.

The e-Loop Mini is a simple bolt-in replacement for automatic vehicle detection systems for exit mode only.

Simply connects to your existing gate controller. This allows the e-loop mini to be used on almost any domestic gate. It utilizes magnetic sensor technology to provide a reliable, safe and cost-effective solution to automatic vehicle detection. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dynabolts, content to replace AA batteries, can the stand almost any vehicle.

Quick and easy installation.

Small compact design (120mm x 120mm x 30mm high).

Static load capacity 2500kg.

Uses standard 1.5V AA Lithium batteries (not included) providing up to 3 years of battery life.

High-security 128-bit encryption.

Range up to 50 meters.

Note: Gate or door controller must have a dedicated open input and autoclose function enabled.

SPECIFICATION

Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode

    Fast and simple installation
    • Quick non-permanent installation
    • Compact design

    Up to 4 year battery life

    Reliable radio communications with transceiver
    • Reliable radio communication
    • High security 128-Bit AES Encryption

    Magnetometer detection areas

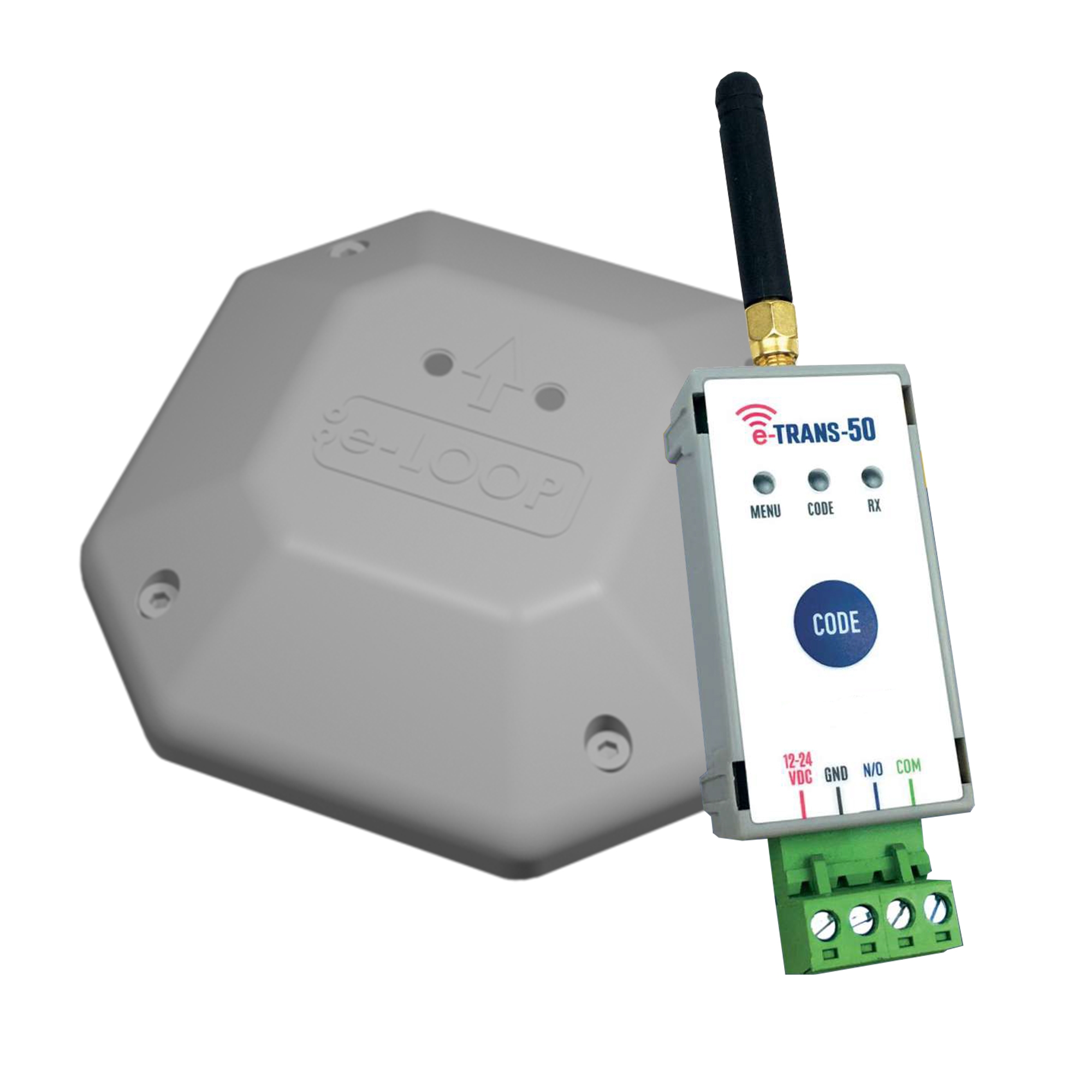

    This kit contains:

    • 1 X EL00M

      E-Loop Domestic loop only - Exit mode

    • 1 X ETRANS50

      E Loop 50 Transceiver

    • 2 X DYNABOLTS

      Fixing Bolts
