Product ID: MTPXS-EH

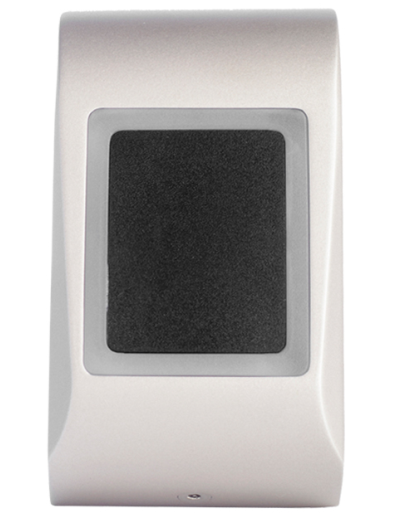

Silver Wiegand proximity reader, surface mount aluminium IP65 rated Wiegand
£93.73
Based on over 250 reviews
40 years experience in the industry
For over 22 years
To receive our best prices on thousands of automation, access control and safety products.
Includes a sounder and three status LED’s to confirm, active, accept and denied when the proximity tag is presented to the reader.
Requires 6 connections back to a Wiegand controller such as the Portal Plus over a maximum distance of 50m.
The proximity reader is either self contained and uses 26 bit Wiegand communication protocol with EM4100 compatibility and 125kHz operating frequency. The range of Mifare proximity readers use the Wiegand communication protocol. These readers will operate with Mifare Classic, Ultralight and Desfire compatible cards and operate at 13.56MHz frequency.
The various readers available all operate on 12Vdc supplied from the Portal Plus controller (EWSi controller) and are low current consumption proximity readers. All are programmable via the PROS CS software.
Features
