506 T

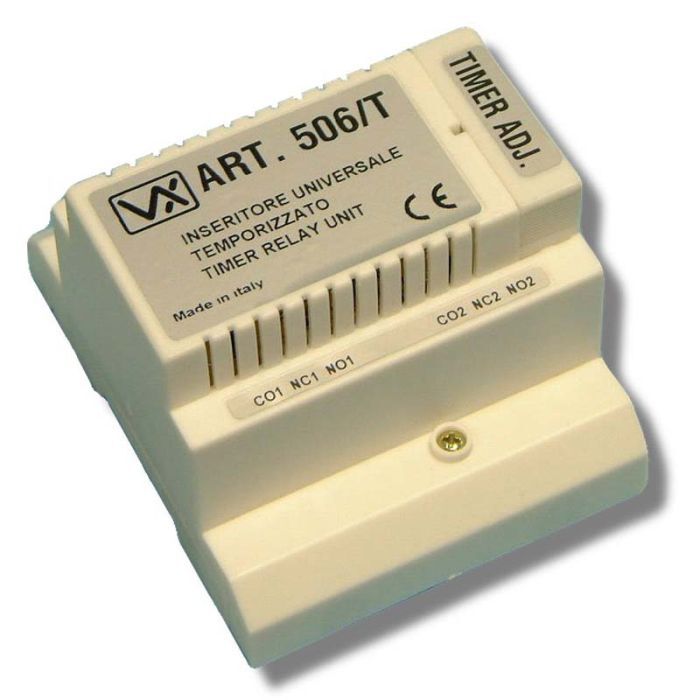

Videx 506T 12/24V Boxed relay

Product Code: 506T

This Videx universal relay enables the control of additional devices, such as stair lights and comes with a timer. The timer duration can be set by the installer anytime between two to a hundred seconds.

The relay can be used for many applications and can be either wall mounted or DIN mounted. It is compatible with most analogue audio systems by Videx.

View more
inc VAT

ADDITIONAL INFORMATION

The timing facility from 2 to 100 seconds, it enables the control of other power peripherals. Normally used by the service push buttons.

In a standard 5 modules A type Din Box (87,5mm), can be fixed to either a DIN bar or directly to the wall using two expansion type screws

SPECIFICATION

  • Input: 12-24 V AC or DC
  • Timer: 2 to 100 seconds
  • Output: Double pole change over relay
  • Power consumption: 100mA Max
  • Working temperature: -10° +50° C
  • Dimensions : 87.5 (H) x 105 (W) x 65 (D) mm
