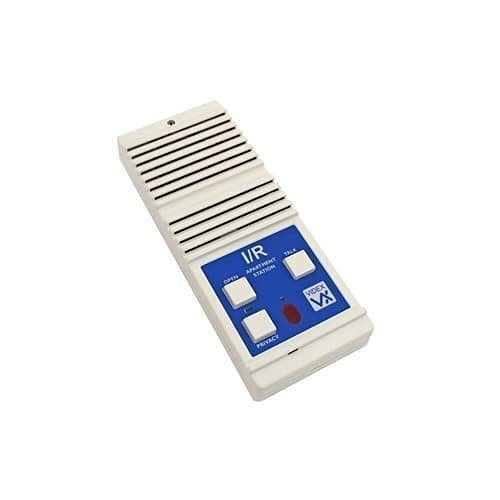

Videx 500MM Extension Apartment Station (23A)

ADDITIONAL INFORMATION

The system has been designed primarily for the elderly/disabled users. It enables the user to answer a call from a door panel either with a hand held remote control or from the wall station. Up to three apartment stations can be fitted into one apartment, allowing the user to operate the system from the three most popular rooms (The remote control must be in line of site with the apartment station).

The infra-red apartment station is compatible with almost all Videx systems.

Videx 2280 interface required

SPECIFICATION

Technical Specification

• Material: White ABS plastic
• No. Of cores to station: 6
• Recommended cable type: CW1308
• AC buzzer call tone : No
• Electronic call tone: Yes (Internal)
• Call tone volume setting: Yes
• Lock release button: Yes
• Dry contact button: No
• Privacy of speech between handsets: Yes
• Timed mute switch: Yes
• Mute switch with on/off LED: Yes

Alarm Relay contacts 0.5A @ 110V AC
1A @ 24V DC
Lock relay contacts 0.5A @ 110V AC
1A @ 24V DC

Working Voltage 12V DC
Current (Quiescent) 10mA
Current (During operation) 200mA max.
