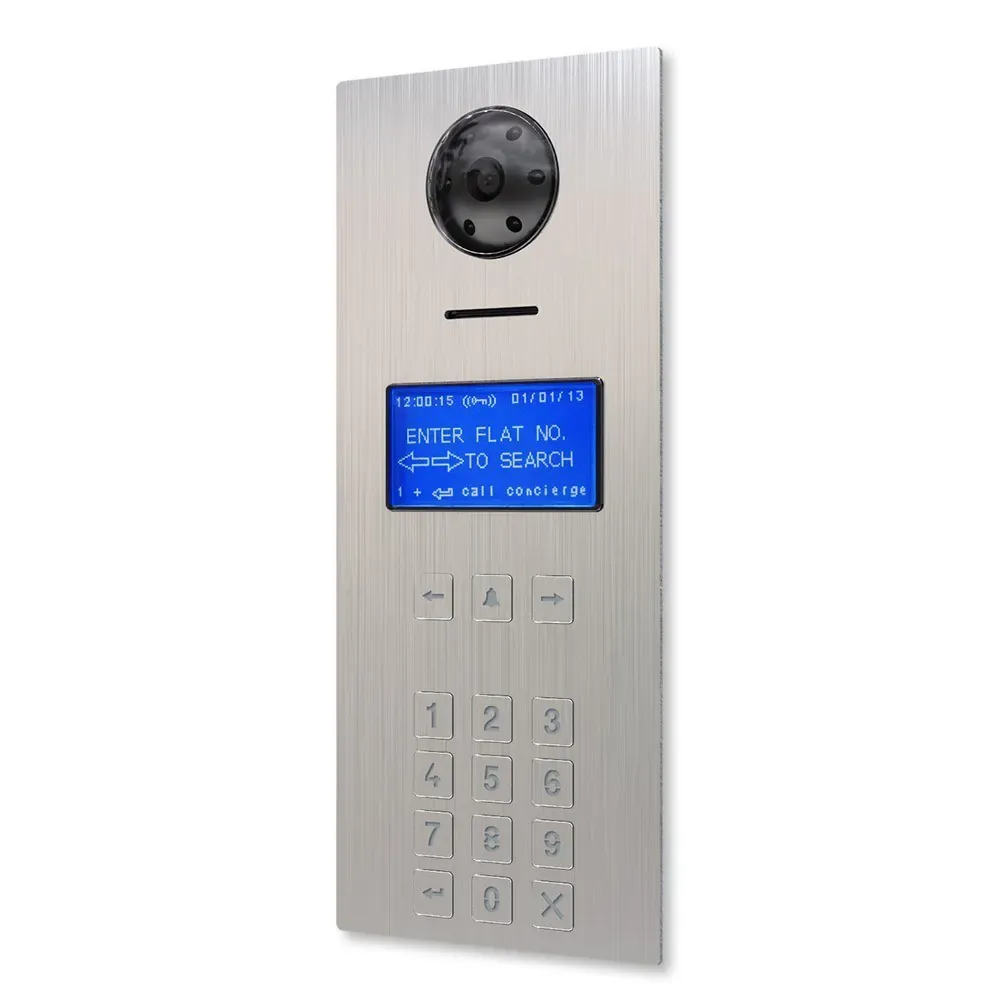

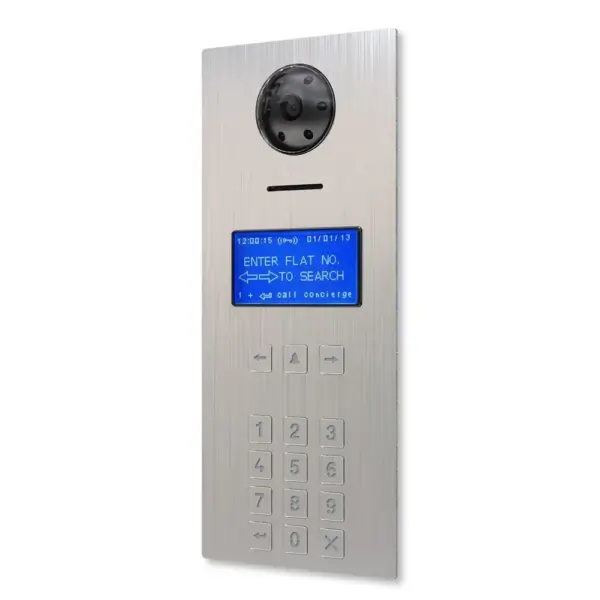

Videx 4512R/M IP digital camera module with display and scroll keys – matt finish

The 4512 series vandal resistant digital IP panel range compliments the Videx IP system introducing a digital call panel that can be used for large installations. The digital panels are manufactured from 316 grade, 2.5mm thick brushed stainless steel and come with the option of an alpha-numeric keypad (A-F) or name search and scroll facility keypad (both back lit). Surface and flush back box mounting options are also available. All panels can store up to 10,000 users/apartments, allowing each user to have a unique 3-6 digit access code. Also integrated into the panel is a builtin proximity reader allowing up to 10,000 proximity keyfobs to be stored. All models include a large 128×64 pixel graphical LCD display which is back lit blue providing clear visual messages that can be displayed in multiple languages for the user of the system. Also incorporated into the panel is speech board annunciation that advises the user on the progress of a call. Additional interfaces include a POE power input, a Wiegand output (allowing connection to third party access control systems that also use this protocol) plus one serial RS485 interface for future use with other devices. The video panels have a built-in wide angle colour camera with six white light illumination LED’s that provide the best quality picture in any lighting condition
