Videx 2505 IP relay module & CloudBox
Videx Intercoms

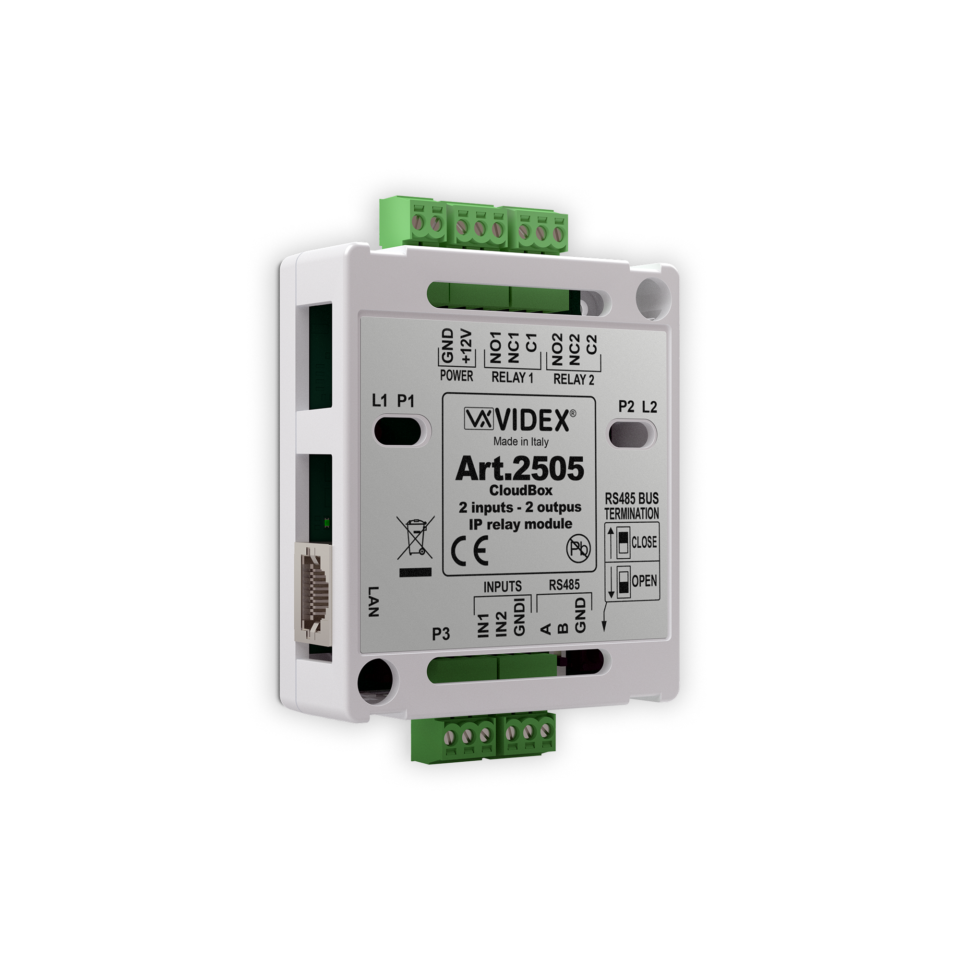

Videx 2505 IP relay module & CloudBox

Product ID: 2505

IPure system IP remote relay & CloudBox module, the 2505, for communication via a Local Area Network (LAN). Using cloud services, communication across the internet can also be achieved with the use of tablets or smartphones running the Videx CloudNected App.

The 2505 has two built-in relays and two active low inputs plus a serial RS-485 bus connection for interfacing with other automation devices. Although it can be powered by 12Vdc it includes an RJ45 ethernet connection with PoE feature, allowing it to be powered without the need for a power supply.

In addition to the device being setup as a general purpose I/O device which can be controlled by apartment devices and the CloudNected App, the relays can be setup to operate door locks or electric gates remotely and securely when setup in “replication” mode (Secured by Design). Alternatively the relays can be setup in “repeater” mode to operate an additional sounder and/or strobe unit.

It also includes “CloudBox” mode allowing the user to use the Videx CloudNected mobile App without the need for an IP videophone.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £44.29 per month with iwocaPay.

Learn more about Iwoca here…

£132.87

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Main Features:

• 12Vdc power supply or PoE.

• 10/100 Mbit Ethernet interface.

• Two dry contact (C,NC,NO) relays operating as standard, latch or pulse (toggle) mode.

• 2 active low programmable inputs (IN1/IN2).

• Serial RS-485 bus for home automation devices.

• VIDEX MAC addresses.

• Connection via LAN, WAN or private network.

• RJ45 ethernet connection.

• VIDEX Cloudnected mobile App available for tablets and smartphones (Android & iOS).

• Two direct relay activation buttons (P1/P2).

• Boot loader mode (for firmware update recovery purposes).

• “Replication” mode for secure door activation.

• “Repeater” mode for sounders and/or strobes.

• “CloudBox” operating mode.

• Lift control operating mode.*

Manuals

Videx 2505 Manual
