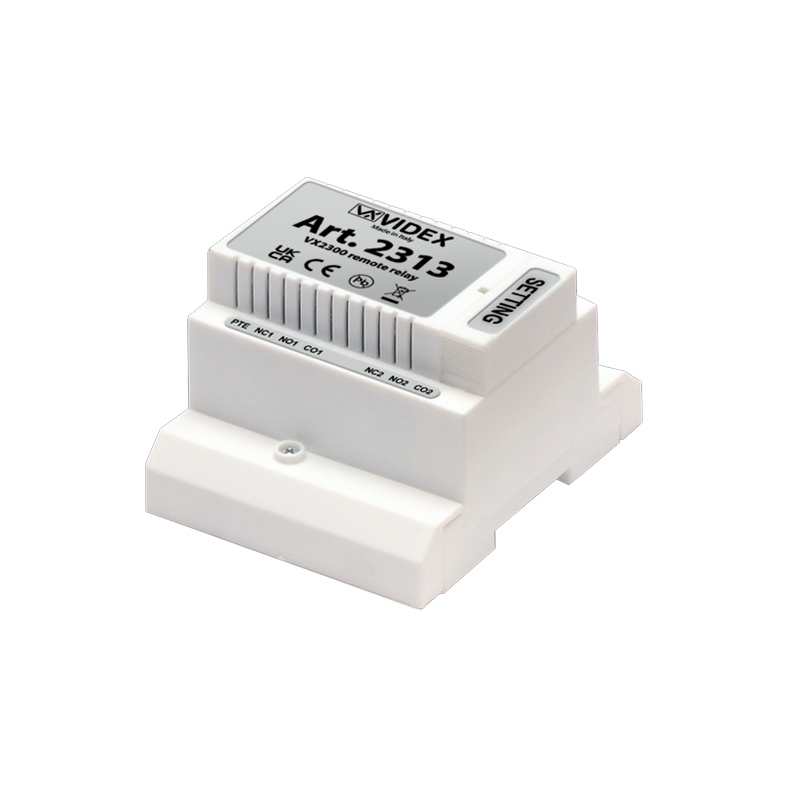

Videx 2313 2 wire BUS remote relay module for VX2300

It has two onboard relays, RLY1 (NC1, NO1 and CO1) and RLY2 (NC2, NO2 and CO2) where relay 1 can be activated via the lock release button on the internal device and relay 2 can be activated via a spare service button on the internal device. Relay 1 can also be activated using the onboard PTE input (when connected to a push-to-make switch).

In addition for higher security applications, including installations in compliance with Secured by Design, the 2313 remote relay can be installed in a more secure location away from the entry panel.

Features

• 2 wire BUS connectivity, allowing for easy cabling installation
• Connect the relay module anywhere along the 2 wire BUS
• 2 dry contact relays RLY1 and RLY2
• Switched 0V PTE input for relay
• Programmable relay times
• 1x switched 0V PTE input (for relay 1 only)
• Secured by Design feature
