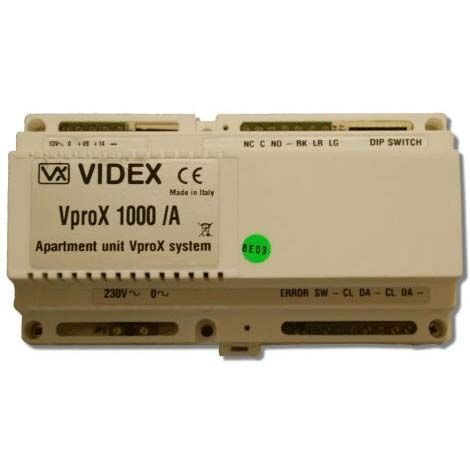

Videx 1000A 1 door expander module
Product Code: 1000A
The 1000A is mains powered and used to expand the VP1000 and VP4000 controllers to above four doors, the Videx 1000A is required for each additional door added to the system.
Rated 4.7/5 on Google based on 200+ reviews
Door and Hardware Federation Assured
ADDITIONAL INFORMATION
The 1000a has built in relay, push to exit button input and bus connection. It is connected through a Serial BUS interface (only 3 wires not shielded, for a max. distance of 500 metres and max. resistance of 10 Ohm).
99 of the 1000A units can be connected to the same BUS for apartment doors and 16 for main doors, which are addressed during setup by programming the eight way dip-switch bank.
SPECIFICATION
Technical Specifications:
- Max users: 400
- Number of doors: 1(Expansion to VP1000 or VP4000)
- Dimensions: 157.5 (L) x 105 (W) x 65 (D) mm
- Voltage: 230Vac
- Relay: 5A @ 30 V DC C, NO, NC
- System: Vprox
