D5600

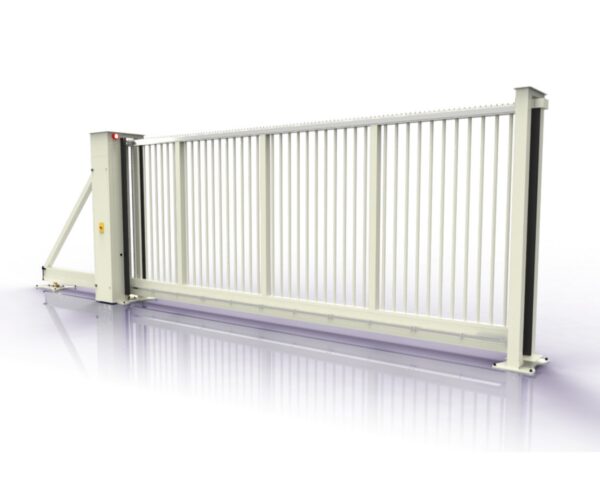

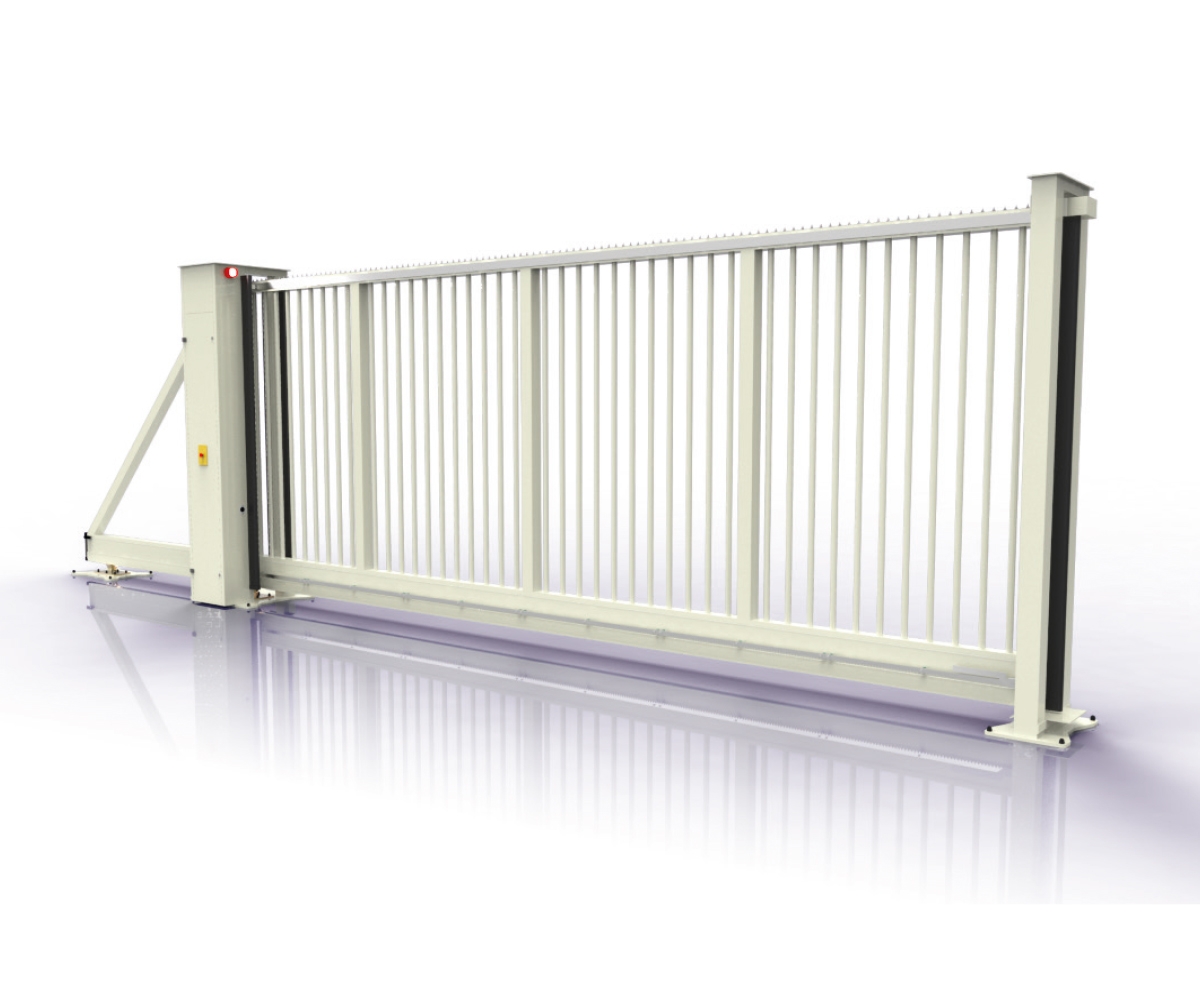

Ultimation D5600 automatic sliding gate

Product Code: D5600

The D5600 cantilever sliding gate is custom built to the individuals requirements and to the highest security specifications. These gates are mainly designed for high use sites but will compliment any business or home. A wide variety of infills are available from palisade to solid.

View more
inc VAT

ADDITIONAL INFORMATION

The 5600 series incorporates a 3-phase inverter motor/gearbox drive which provides smooth consistent operation with variable speed. This is all controlled via a Schneider PLC that can be programmed to suit any access control requirements and also features adjustable parameters that the customer can change to suit site needs. For example if you wanted to add traffic lights or change the access control at a later date then the gate can facilitate this without having to upgrade anything on the gate. The result is a superior product giving long service life and peace of mind.

SPECIFICATION

Features:

  • 3 - Phase inverter driven motor
  • Fully safety compliant
  • 100% Duty cycle
  • Low maintenance
  • Low power consumption
  • Custom designs available

Technical:

  • Maximum Span 12.0 Metres
  • Maximum height 3.5 metres (Depending on span)
  • Opening/Closing time 5 seconds per metre (Adjustable)
  • Slow down opening and closing
  • Drive Unit 3 - Phase motor & wormed gearbox - rack and pinion
  • Safety 6 x Cat 3 edges as std dual photocells
  • Cycles 100 % duty cycle
  • Power supply 230vac 50hz 6Amp

This kit contains:
