Spb004 Sw

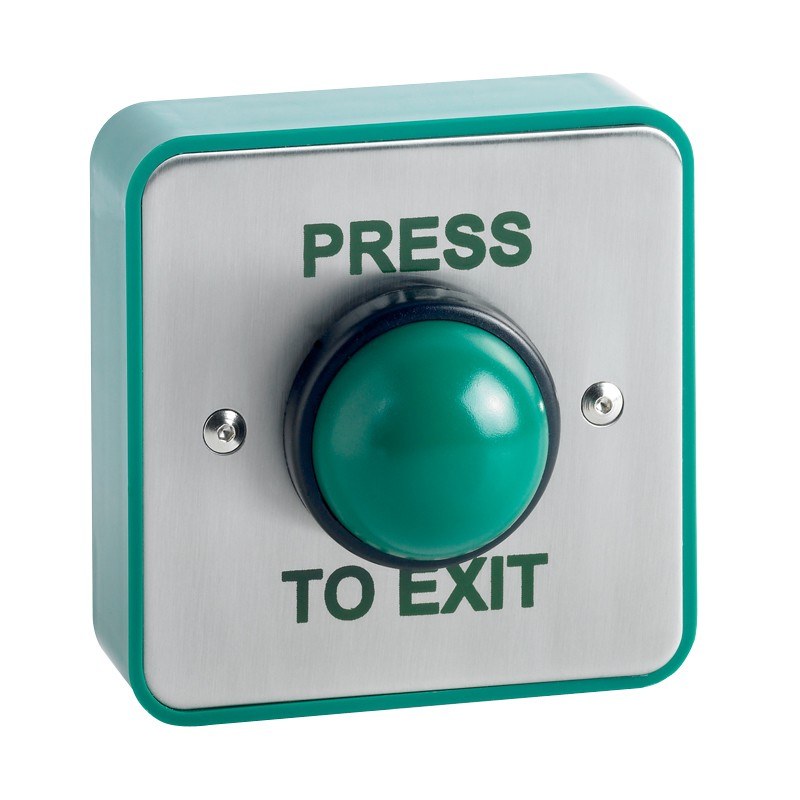

SPB004S Press to exit surface mount domed button

Product Code: SPB004S

This weatherproof green dome press to exit button is ideal for frequent, outdoor use and situations where a degree of vandal resistance is required. The large green button provides easy visual identification and ease of use.

Button comes with finger guard and green back box.

Features

  • Weatherproof button (IP66)
  • High impact
  • Stainless steel face plate
  • Standard single gang fixing
  • Screen printed: PRESS TO EXIT
  • Surface mount
  • 4Amps @ 30Vac/dc
  • Double pole NO/NC
  • Green dome button
  • Finger guard
  • Change over contacts (NO and NC)


View more
inc VAT

ADDITIONAL INFORMATION

Technical Information

• N/O & N/C changeover contacts
• Momentary operation
• Contact rating: 2A @ 12Vdc
• 86mm(H) x 86mm(W) x 56mm(D)
• Green dome= 35mm diameter
• Suitable for outdoor use
• For low voltage use only
• The back box must be sealed to the wall with mastic to ensure a weather tight
installation
