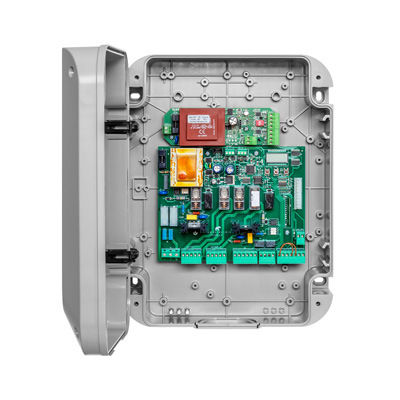

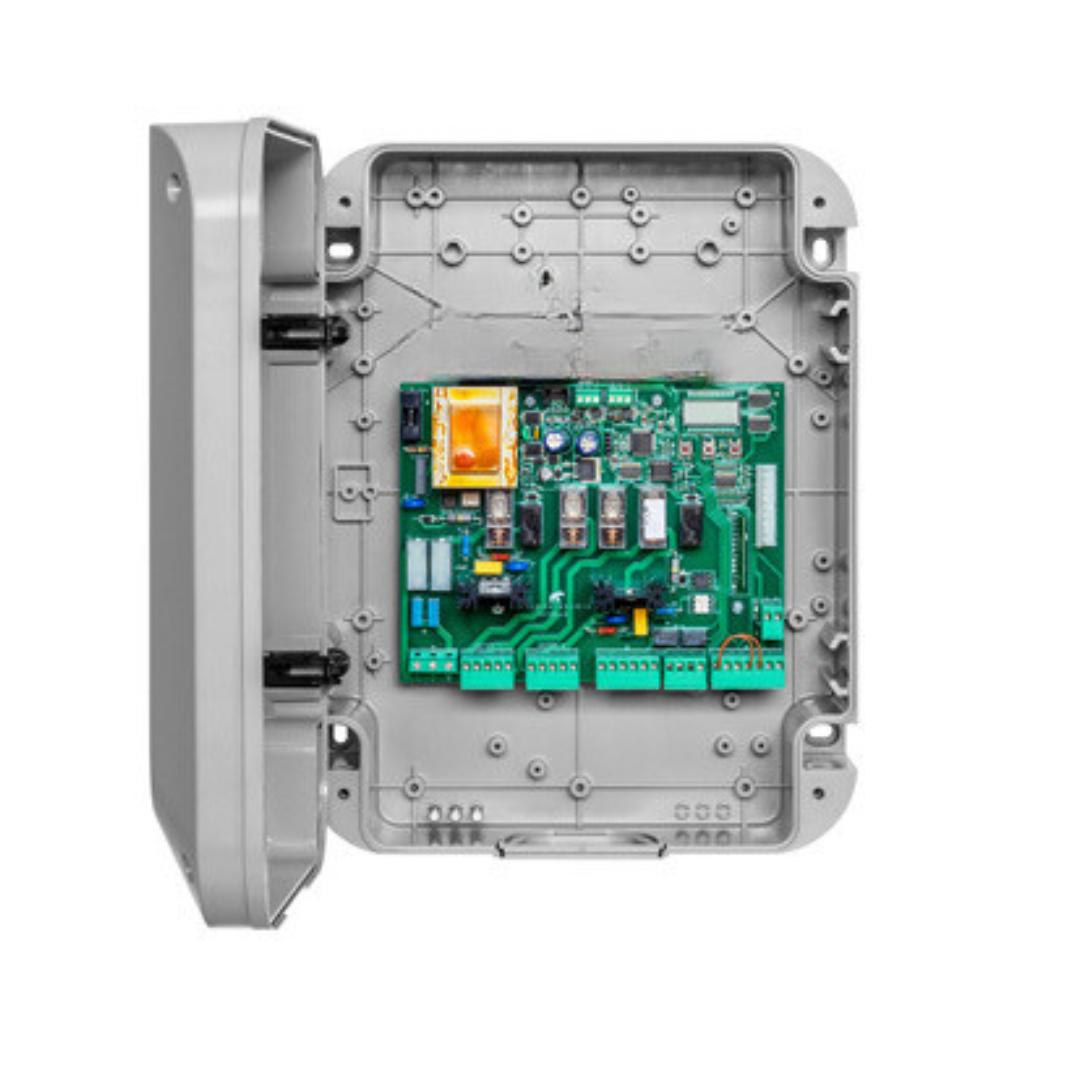

Spartacus MAX.CP Control panel and enclosure

TECHNICAL SPECIFICATIONS

• Protection level IP54
• Separate limit switch inputs for each motor
• Programming access password
• Automatic, semi-automatic and deadman’s logic
• Removable terminal boards
• Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code)
• Equipped with step-by-step command inputs separate for each bollard and centralised command inputs ALL UP and ALL DOWN for the raising and the lowering of both bollards
• Parameter and operation logic regulations through integrated LCD display
• Version with built-in board to manage buzzer/LED lights available (MAX.CP BL)
• Control inputs for loop detectors and protection devices (GL.PRES)
• 2 outputs configurable as bollard status indicator or command of the optional board CP.BL
• Designed for the connection of the optional board CP.BL to manage signal lights and the warning buzzer GL.BUZZ
