Roger Technology KIT-R21/353 Underground swing gate 2 leaf kit
Roger Technology

Roger Technology KIT-R21/353 Underground swing gate 2 leaf kit

Product ID: KIT-R21/354

Roger 230V AC Irreversible underground gate kit for double leaf swing gates.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £447.84 per month with iwocaPay.

£1,343.52

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Ideal for swing gates up to 3.5m length (see technical table below) dependent on the weight of the gate.

Supplied with 2m cable in cold galvanised foundation boxes.

Specification

Technical Specification

    • Power Line Supply - 230V AC -50HZ
    • Motor Power Supply - 230V AC
    • Frequency of Use - Intensive Cycle
    • Operating Cycles - 1300 per day - 24 hours no stop
    • Product weight - 68.6kg
    • IP67 Protection rating
    • Operating Temperature - -20°C to +55°C
    • Reductor type - Irreversible
    • Opening time - 19 to 29 seconds
    • Manoeuvre speed - 1.2 RPM
    • Maximum opening - 105°
    • Recommended Control panel - 230V H70/200ac

Manuals

Roger R21 ManualRoger Edge1 manual

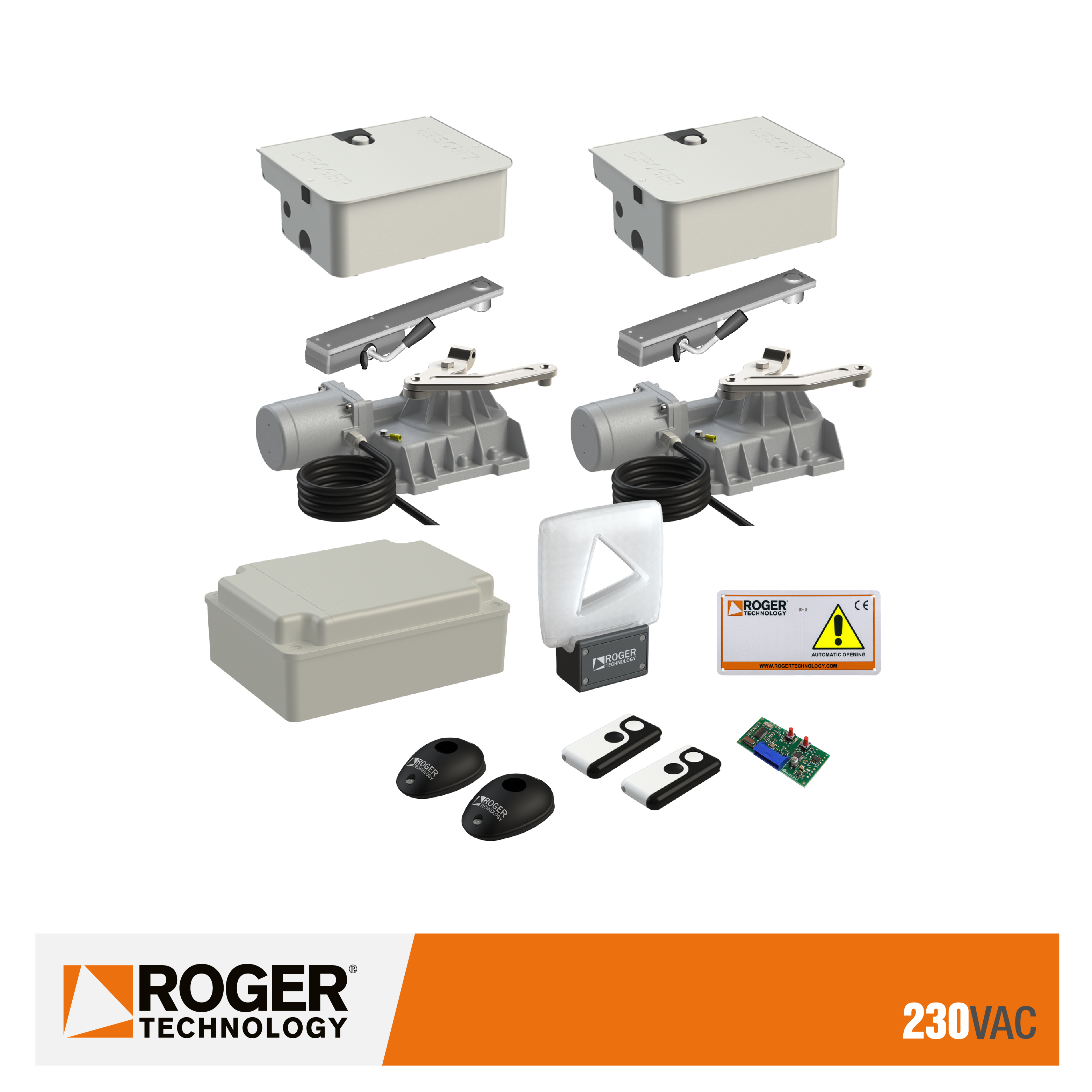

Product Contains

2 x R21/351

Underground motor 2m cable

2 x FU100

Underground cold galvanised foundation box

2 x RL650

Standard lever release system

1 x EDGE1/20

Control panel and enclosure with photocell pair, receiver, flashing light and 2 x transmitters
