Roger Technology KIT-SMARTY5 Brushless Above ground swing gate 2 leaf kit
Roger Technology

Roger Technology KIT-SMARTY5 Brushless Above ground swing gate 2 leaf kit

Product ID: KIT-SMARTY5

Roger Brushless 36V DC Irreversible gate kit for double leaf swing gates.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £506.06 per month with iwocaPay.

Learn more about Iwoca here…

£1,518.17

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 5m length (see technical table below) dependent on the weight of the gate.

With mechanical stop in opening and closing positions.

Specification

Technical Specification

  • Power Line Supply – 230V AC -50HZ
  • Motor Power Supply – 36V
  • Frequency of Use – Intensive Cycle
  • Operating Cycles – 1000 per day – 24 hours no stop
  • Product weight – 38.5kg
  • IP44 Protection rating
  • Operating Temperature – -20°C to +55°C
  • Reductor type – Irreversible
  • Opening time – 25 to 40 seconds
  • Manoeuvre speed – 1.6cm per second
  • Recommended Control panel – 230V Edge1 Box
  • Stroke – 370mm

Specification Imagery

Manuals

Roger SMARTY ManualRoger Edge1 manual

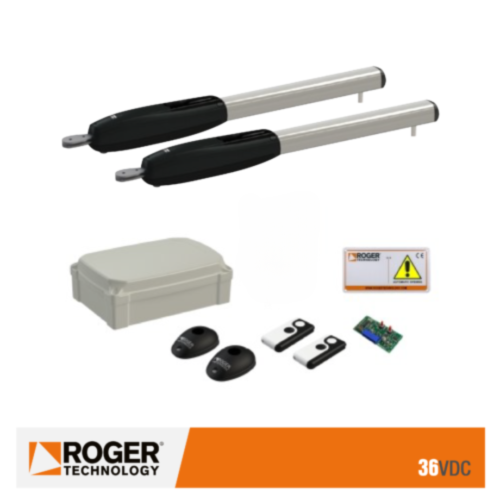

Product Contains

2 x Smarty5

Brushless swing gate motor

1 x EDGE1/BOX

36V Control panel and enclosure

1 x H93/RX22A/I

Plug in receiver

1 x R90/F4ES

Pair of photocells

2 x Synus/2

2 channel transmitter

1 x R99/C/001

Automatic opening sign

Optional Accessories
