Roger Technology KIT-BH30/606/HS Brushless High speed sliding gate kit
Roger Technology

Roger Technology KIT-BH30/606/HS Brushless High speed sliding gate kit

Product ID: KIT-BH30/606/HS

Roger Brushless 24V DC Irreversible high speed kit for sliding gates.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £211.58 per month with iwocaPay.

Learn more about Iwoca here…

£634.74

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for sliding gates up to 600kg maximum weight.

Supplied with built in control panel B70 Series and magnetic limit switch.

Specification

Technical Specification

  • Power Line Supply – 230V AC -50HZ
  • Motor Power Supply – 24V
  • Frequency of Use – Intensive Cycle
  • Maximum gate weight – 600kg
  • Operating Cycles – 800 per day – 24 hours no stop
  • Product weight – 13kg
  • IP44 Protection rating
  • Operating Temperature – -20°C to +55°C
  • Reductor type – Irreversible
  • Manoeuvre speed – 0.4m per second
  • Recommended Control panel – B70/1DC
  • Limit switch – Magnetic
  • Gear cog – Z15 MOD 4

Specification Imagery

Manuals

Roger BH30 ManualRoger B70 Control panel Manual

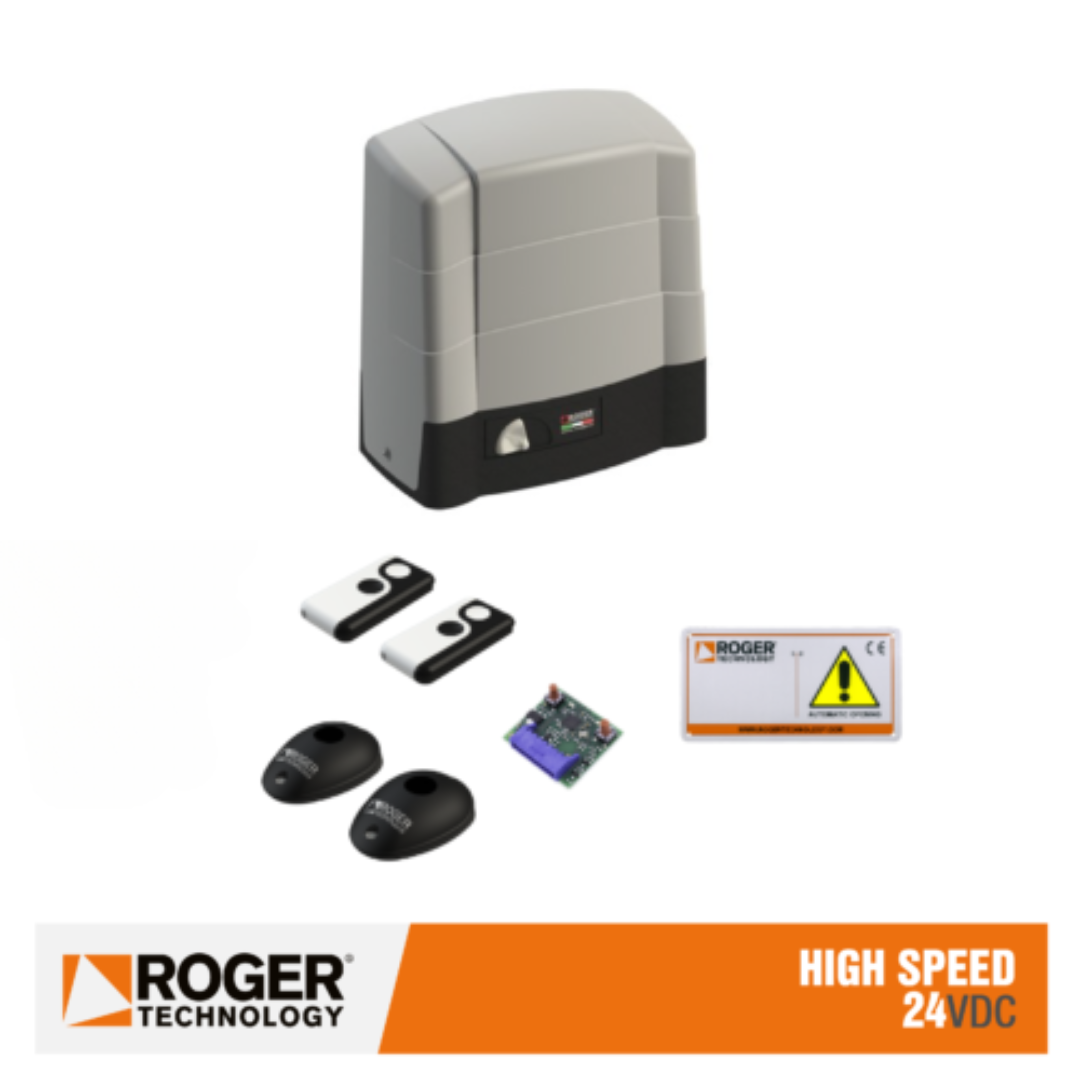

Product Contains

1 x BH30/604/HS

High speed 24v sliding gate motor

1 x H93/RX22A/I

Plug in receiver

1 x R90/F4ES

Pair of photocells

2 x Synus/2

2 channel transmitter

1 x R99/C/001

Automatic opening sign
