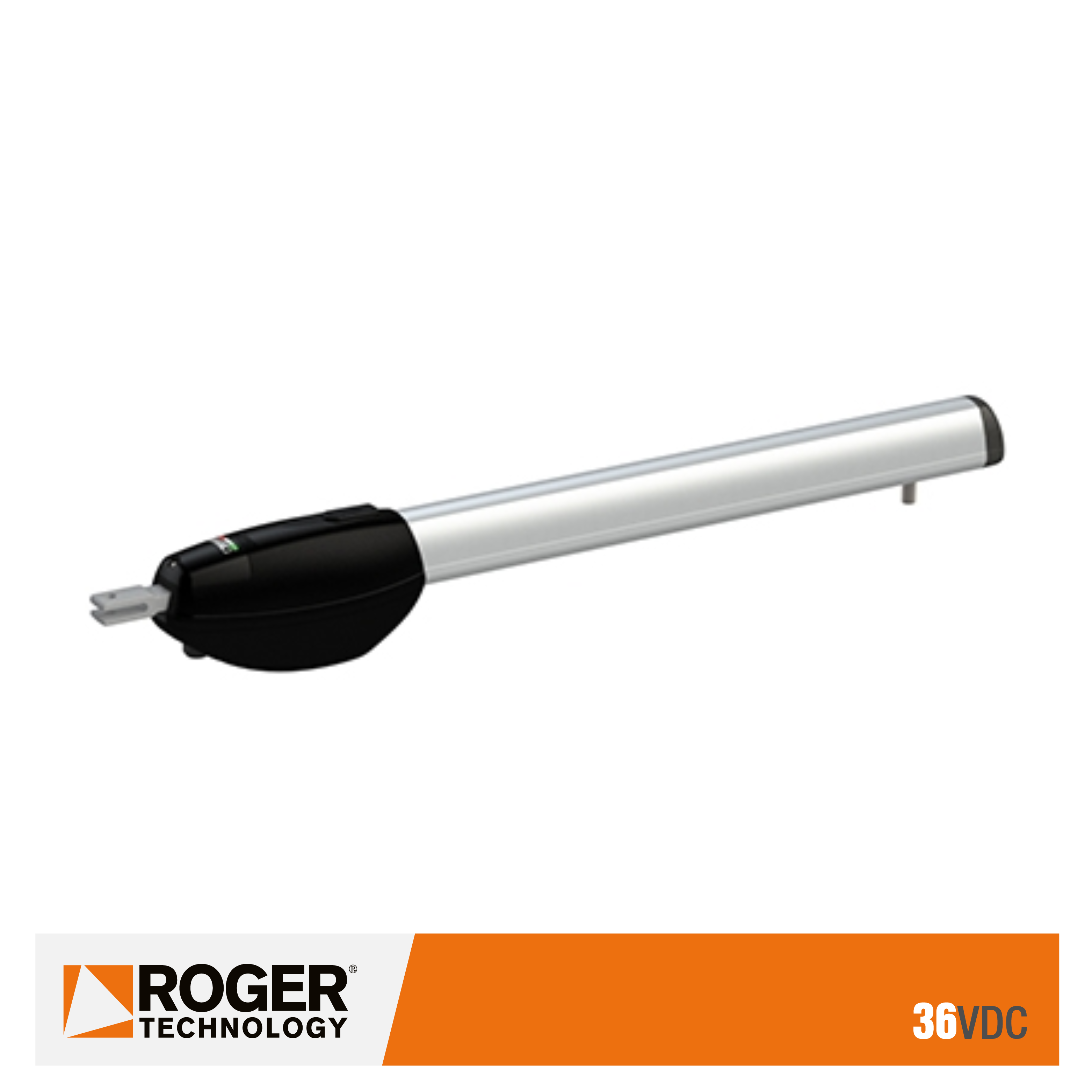

Roger Technology BE20/400 Brushless motor
Roger Technology

Roger Technology BE20/400 Brushless motor

Product ID: BE20/400

Roger Brushless 36V DC Irreversible motor for swing gates.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £102.87 per month with iwocaPay.

Learn more about Iwoca here…

£308.61

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 4m length (see technical table below) dependent on the weight of the gate.

With mechanical stop in opening and closing positions.

Specification

Technical Specification

  • Power Line Supply – 230V AC -50HZ
  • Motor Power Supply – 36V
  • Frequency of Use – Intensive Cycle
  • Operating Cycles – 1000 per day – 24 hours no stop
  • Product weight – 8.8kg
  • IP44 Protection rating
  • Operating Temperature – -20°C to +55°C
  • Reductor type – Irreversible
  • Opening time – 17 to 26 seconds
  • Manoeuvre speed – 1.66cm per second
  • Recommended Control panel – 230V Edge1 Box
  • Stroke – 550mm

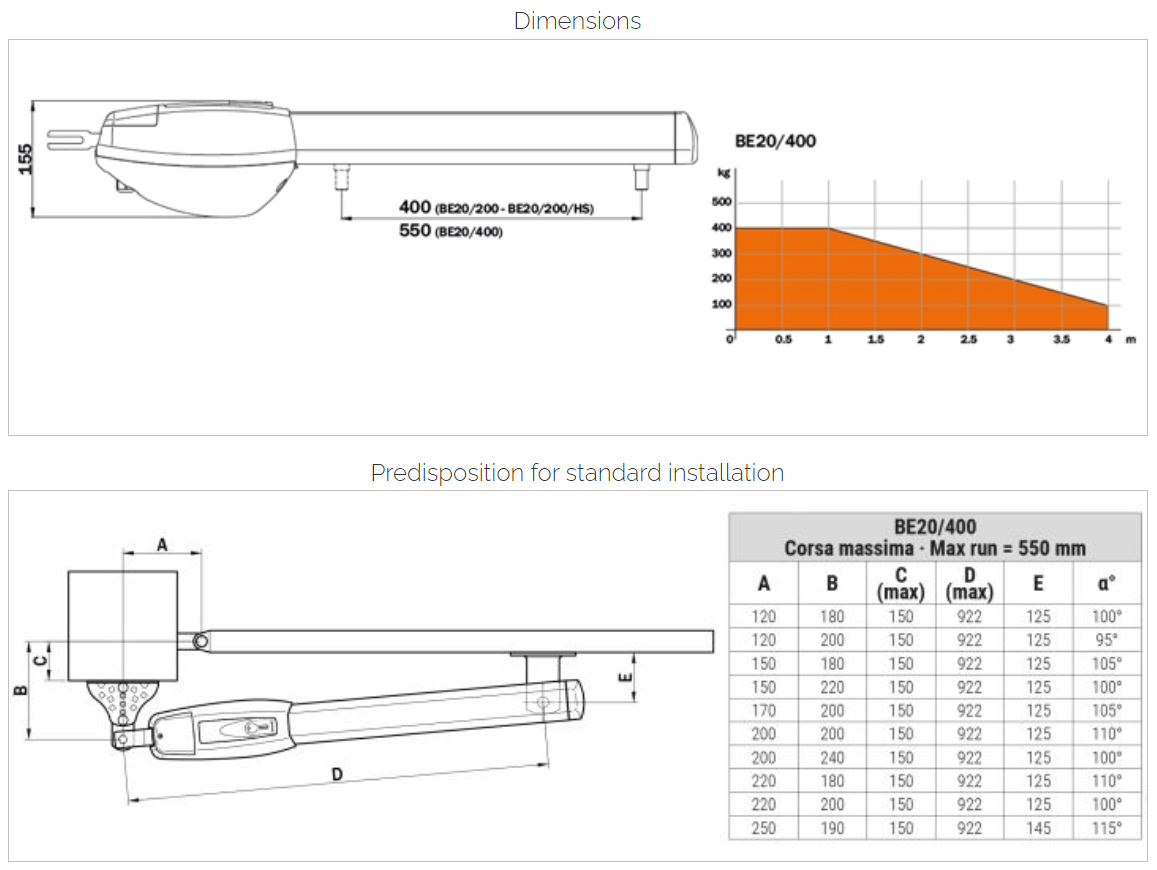

Specification Imagery

Manuals

Roger BE20 Manual

Optional Accessories

Rolling Center
