Roger Technology Ayron High speed Slave articulated swing gate motor

Roger Technology

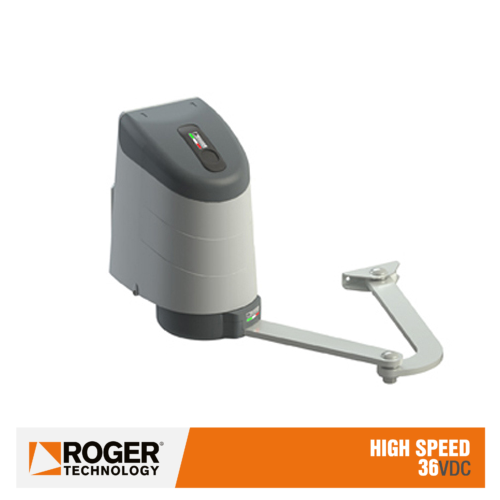

Roger Technology Ayron High speed Slave articulated swing gate motor

Product ID: AY/250/S

Roger technology articulated high speed swing gate motor only

Articulated arm not included- purchased seperately

Learn more about Iwoca here…

£349.87

ex. VAT

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Related Products

Roger Technology Ayron High speed Master articulated swing gate motor

£482.13

Additional Information

Super intensive use for up to 2.5m length maximum per gate leaf and maximum weight per leaf 250kg (see below chart for detailed specifications)

Specification

SPECIFICATION:

Motor power supply – 24V
Nominal power – 150W
Frequency of use – Intensive
Irreversible motor
Mechanical stop limit switch
Sensorless digital native encoder at 48 PPR
Manoeuvring speed – 4 – 1.5Rpm
Opening time – 10 to 18 seconds
Couple – 50-200Nm
Operating Temperature – -20°C – 50°C
Degree of Protection – IP44
Operating cycles per day – 800

Specification Imagery

Manuals

Roger AY/255 Manual

Optional Accessories

Roger Technology Ayron long articulated arm

Roger Technology KIT AY/255 Brushless High speed Articulated 2 leaf kit
