Roger Technology Ayron High speed Master articulated swing gate motor
Roger Technology

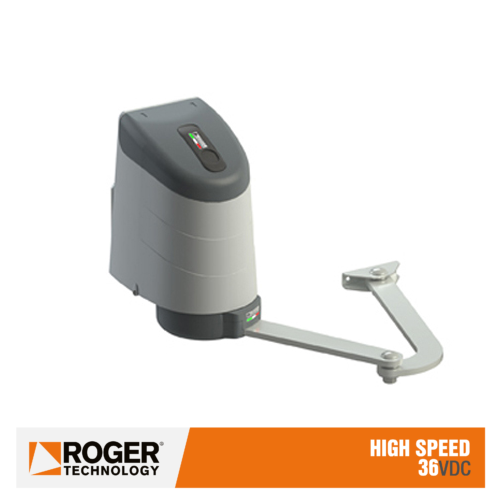

Roger Technology Ayron High speed Master articulated swing gate motor

Product ID: AY/250/M

Roger technology articulated high speed swing gate motor only, with built in control panel.

Articulated arm not included- purchased seperately

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £160.71 per month with iwocaPay.

£482.13

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Super intensive use for up to 2.5m length maximum per gate leaf and maximum weight per leaf 250kg (see below chart for detailed specifications)

Built in control panel B70/2ML included in master primary motor and encoder.

Specification

Specification:

  • Motor power supply - 24V
  • Nominal power - 150W
  • Frequency of use - Intensive
  • Irreversible motor
  • Mechanical stop limit switch
  • Sensorless digital native encoder at 48 PPR
  • Manoeuvring speed - 4 - 1.5Rpm
  • Opening time - 10 to 18 seconds
  • Couple - 50-200Nm
  • Operating Temperature - -20°C - 50°C
  • Degree of Protection - IP44
  • Operating cycles per day - 800

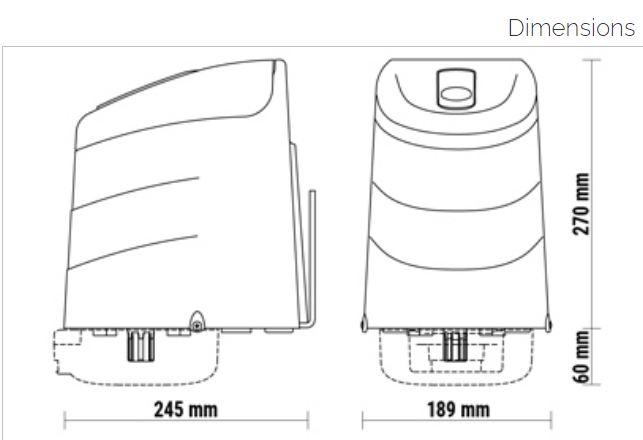

Specification Imagery

Manuals

Roger AY/255 Manual

Optional Accessories
