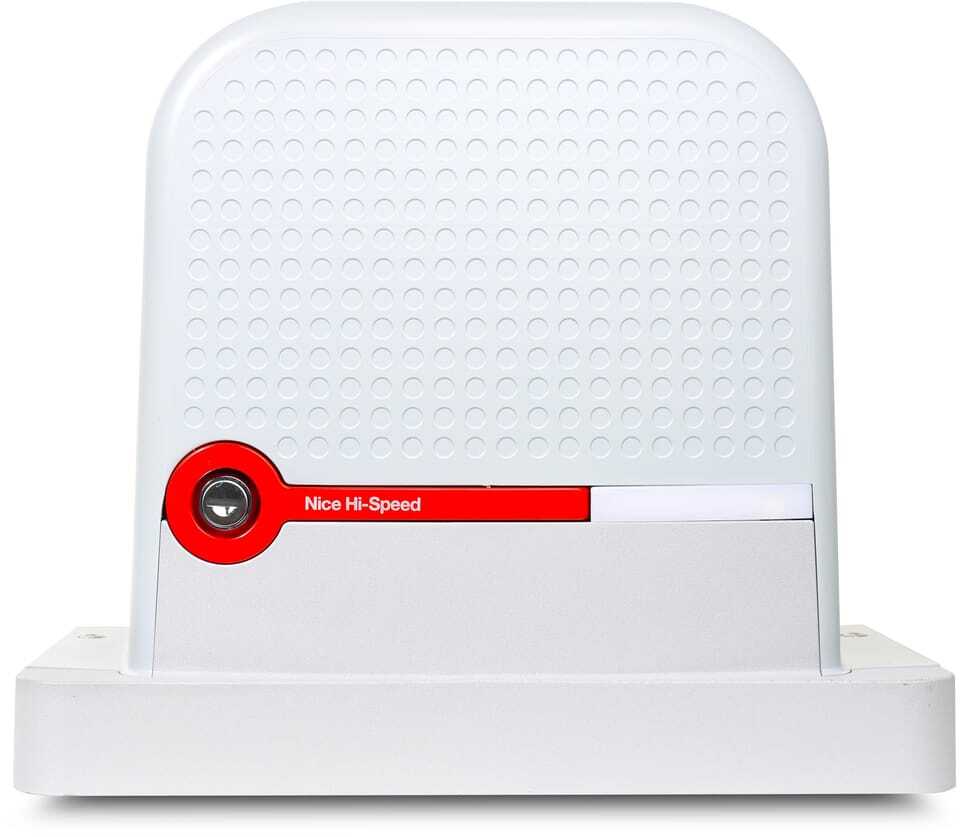

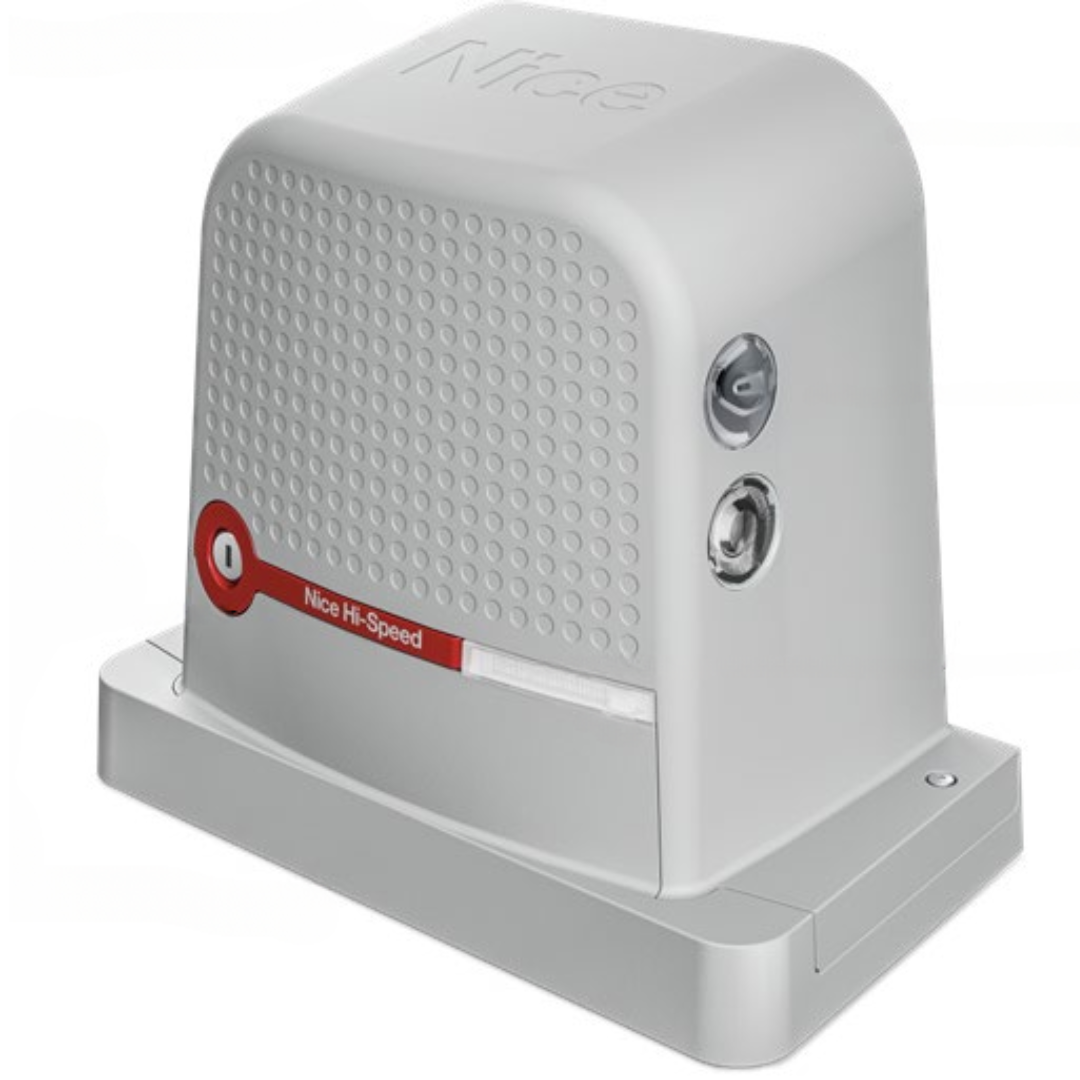

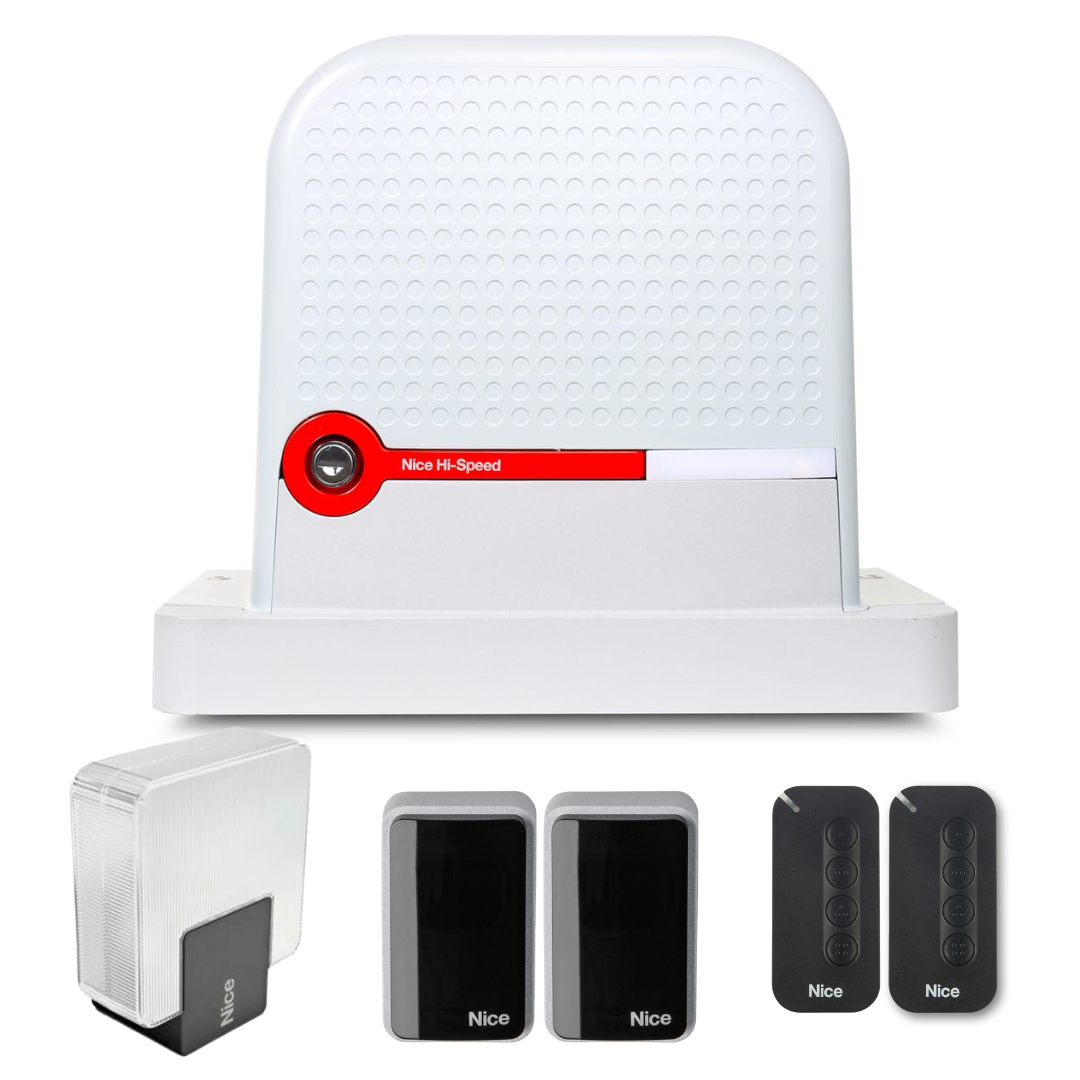

Nice RBS600HSBDKCE 600kg sliding gate kit

ADDITIONAL INFORMATION

Max Capacity: Length of 8m - Weight of 600KG

High Speed function at 0.44m/s compared to the standard 600kg Robus at 0.34m/s - 25% faster

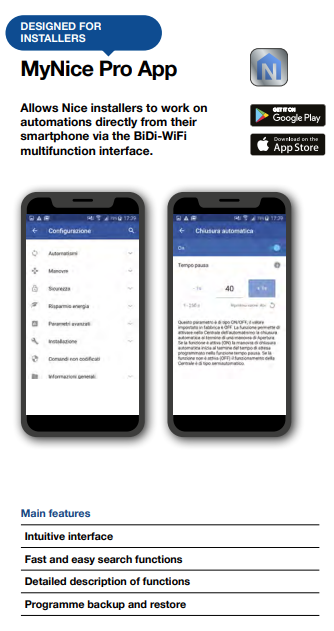

Built-in BIDI-Wifi allows Wi-fi connection to enable MYNicePro App for remote control, as well as allowing the installer to configure the automation from anywhere*!

Features built in OXIBD receiver and Hi-Tec Status light which shows Red & Green, next to manual release. The eye check system shows the ststus of all accessories and any anomaly/warning light to help diagnose issues when performing maintenance/programming. A great feature for the home owner, call your engineer and diagnose over the phone colour of light status and how many times it is flashing.

*supplied without RBSKITSAFE1 - for the ELMM courtesy light which fits inside the Robus casing- sold separately with mounting brackets*

 Control Panel: MCU4 Spare control unit for RBS600HS complete with MLAE22 board and built-in Wi-Fi

*Wifi connection must be present at the gate automation for the MyNicePro app to connect.

The Robus casing design comes with a new foundation plate for a quick and simple installation to replace any existing Robus.

Now upgraded with a magnetic limit switch rather than a physical spring, built in internally inside the Robus casing.

SPECIFICATION

TECHNICAL SPECIFICATION

Gate leaf limit : 8m

Weight limit : 600kg

Power supply (V) : 230 (RB600HS) 120 (RB600HS/V1) 250 (RB600HS/AU01)

Power draw (A) : 3,1

Power (W) : 450w

Speed (m/s) : 0.44

Start Peak Torque (NM) - corresponding to a force (N) : 9.3 - 310

Rated Torque (NM) - corresponding to a force (N) : 5.9 - 196

Cycles (per Hour) : Leaf up to 4m = 40x    Up to 8m = 20x

Protection Rating (IP) - 44
