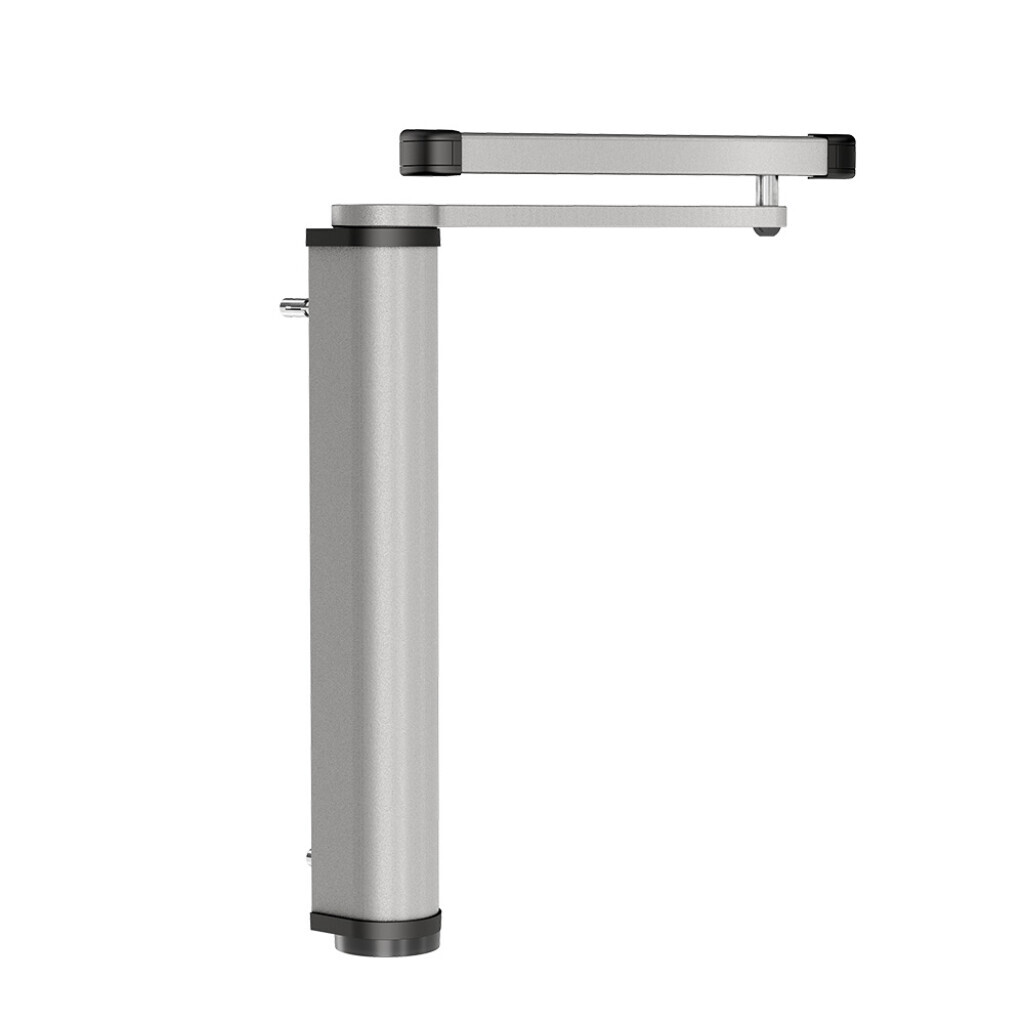

Locinox VENUS-S Silver motorised pedestrian gate closer
Locinox

Locinox VENUS-S Silver motorised pedestrian gate closer

Product ID: VENUS-S-SILV

The newest addition to the Locinox range is the Venus, a reversible motor for pedestrian gates with integrated electronics.

This can be operated manually, and includes sliding arm finished in silver, suitbale in combination with hinges opening 90 degrees.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £233.33 per month with iwocaPay.

Learn more about Iwoca here…

£700.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

The Venus gate motor is designed for the automatic opening and closing of pedestrian swing gates and outdoor use.

Suitable for gates up to 100kg and 1.4m width, the maximum opening angle is up to 175° but requires a VENUS-RAIL additional arm.

This is a reversible motor, for fully automatic opening, an electric lock or electric dropbolt is required. Otherwise, it is to be used in combination with a standard swing gate mechanical lock. The operating speed is limited to low-energy settings according EN16005 and ANSI 156.19 standards.

‘Locinox’ installation app is required for initialization and programming of the closer, with a step by step guide.

The closing speed and motor force can be adjusted with an opening resistance of 15Nm.

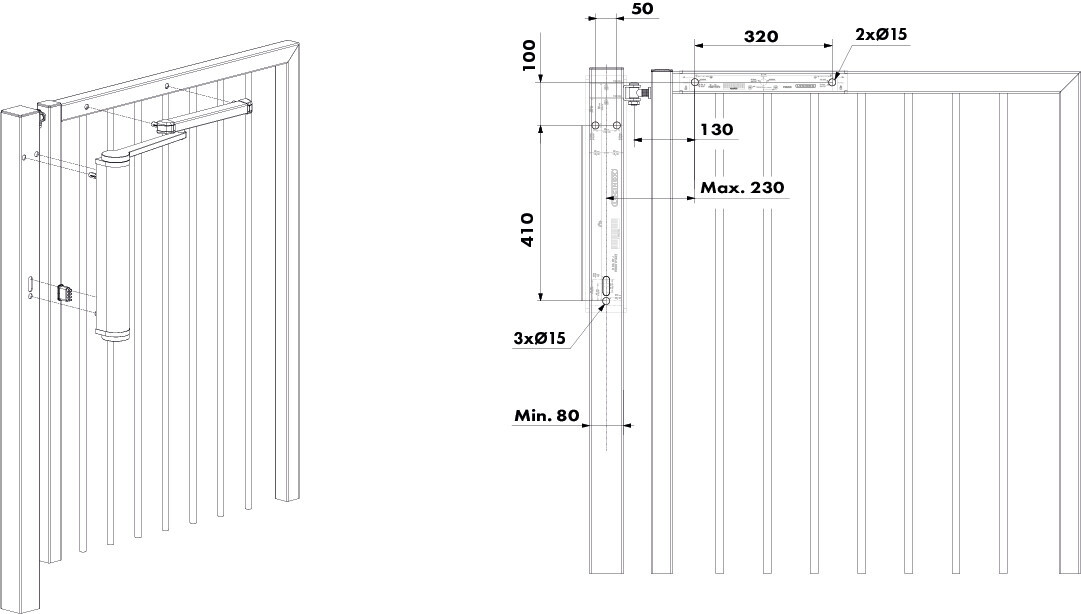

For gate profiles of minimum 80mm, if 60mm or for a wall the VENUS-ADAPTERPLATE is available.

Specification

TECHNICAL SPECIFICATION

  • Power supply (V) – 110 – 240V AC (50/60Hz)
  • Motor voltage (V) – 24 V DC
  • Nominal power/ excl output power (W) – 30 W
  • Max power (W) – 150 W
  • Max motor torque (Nm) – 150Nm
  • Operating temperature range (°C) -30°C TO 70°C
  • Opening time to 90° – >4 seconds
  • Protection – IP54
  • Weight – 6.5kg
  • 3 programmable inputs:
    •Activation device (N.O.)
    •Safety device (N.C. / 8K2)
  • 3 programmable outputs:
    •Electric lock (Fail Open / Fail Close)
    •Flashlight / light with timer
    •24V DC AUX
    Total output power: max 2

Specification Imagery

Manuals

Locinox Venus Manual

Optional Accessories

Rolling Center
