Locinox Magnus Silver Reversible motorised gate closer and hinge set
Product ID: MAGNUS-SILV
The MAGNUS motorised gate closer is specifically designed for automating pedestrian gates up to 1.5m in width and 200kg weight.
MAGNUS has a brushless 24V DC motor specially designed for semi-manual or fully automated outdoor use.

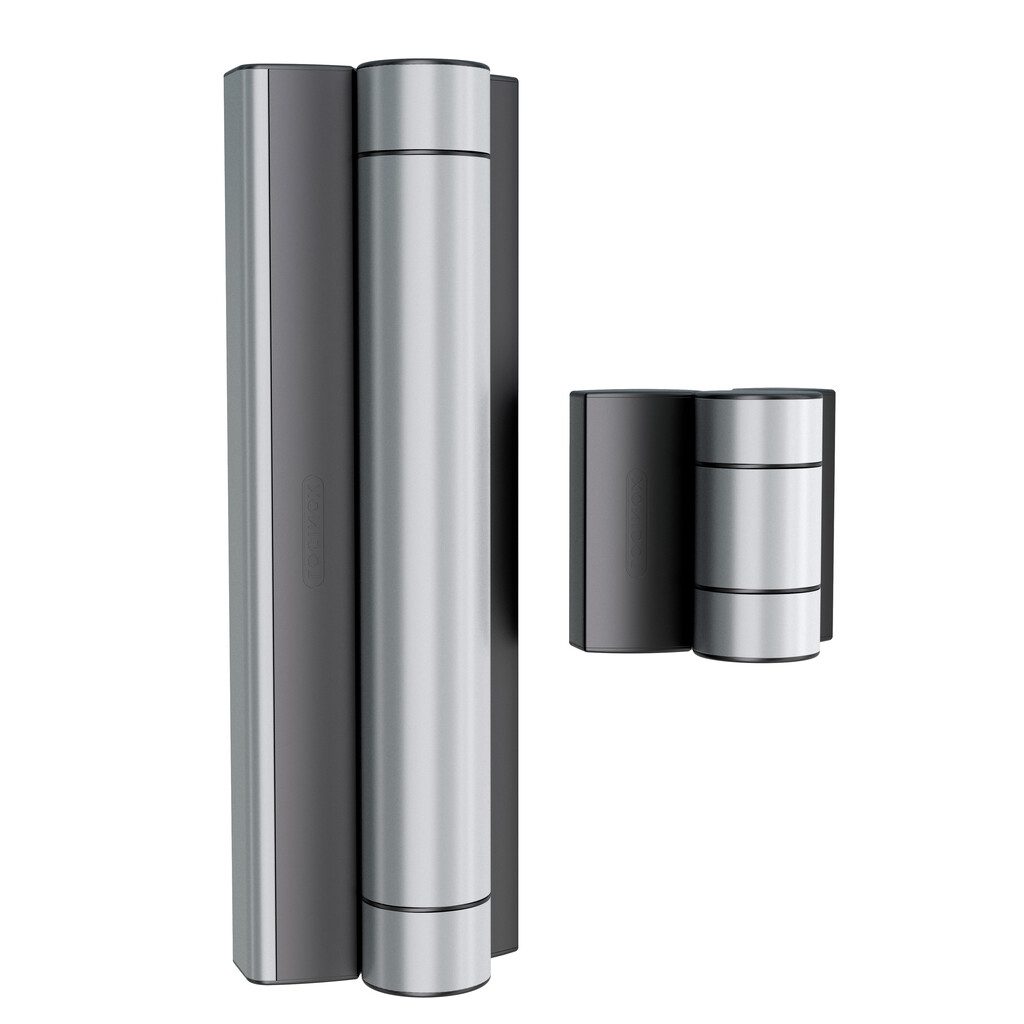

The settings and access control can be configured via an intuitive app. The Magnus comes in Silver finish with a lower hinge and compact connection box.
Why would you choose a Magnus automated gate closer?
If you need to comply with regulations for disabled access, such as wheelchair users, having a motorised or automatic gate helps. Pulling/pushing heavy gates can be difficult and the magnus is designed with low-energy mode and reversible motor. Been able to withstand 200kg in weight, anywhere that manual force may be a barrier for older people, or children.
Additionally, you don’t have to manually push the gate shut behind; the motor assists and fully closes it. With inputs and outputs, you can integrate with the Magnus with access control (such as a keypad, proximity card readers, a standalone receiver and remote, or intercom)
Specification
Maximum width: 1500 mm
Maximum weight: 200 kg
Profile Post profiles from 60 mm
Gate profiles from 40 mm
Material Housing: anodised aluminium
Steel gear box and external connection box

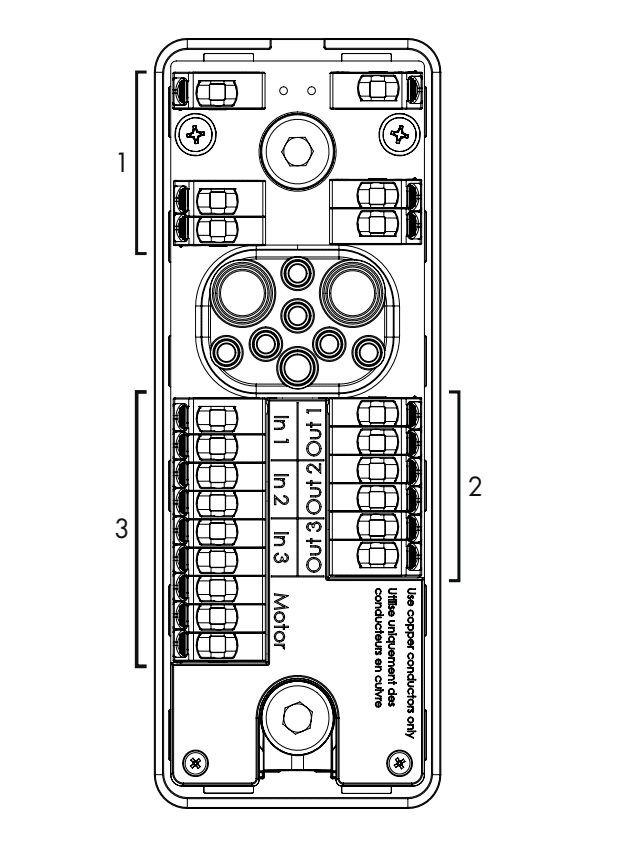

3 inputs and 3 outputs (Max 48W, 24V DC)
EN 16005 Compliant
IP56 Rating
Opening angle Up to 180°
Mounting Quick-Fix
Installation on left or right handed gates
Surface installation
Motor torque Maximum 100Nm
Power supply 110-240 V AC
Weather conditions -30°C => +70°C
Warranty 2 years
Tested 500K cycles
2m cable between motor and connection module
Reversible motor with backdrivability for easy manual use – to be combined with a lock
