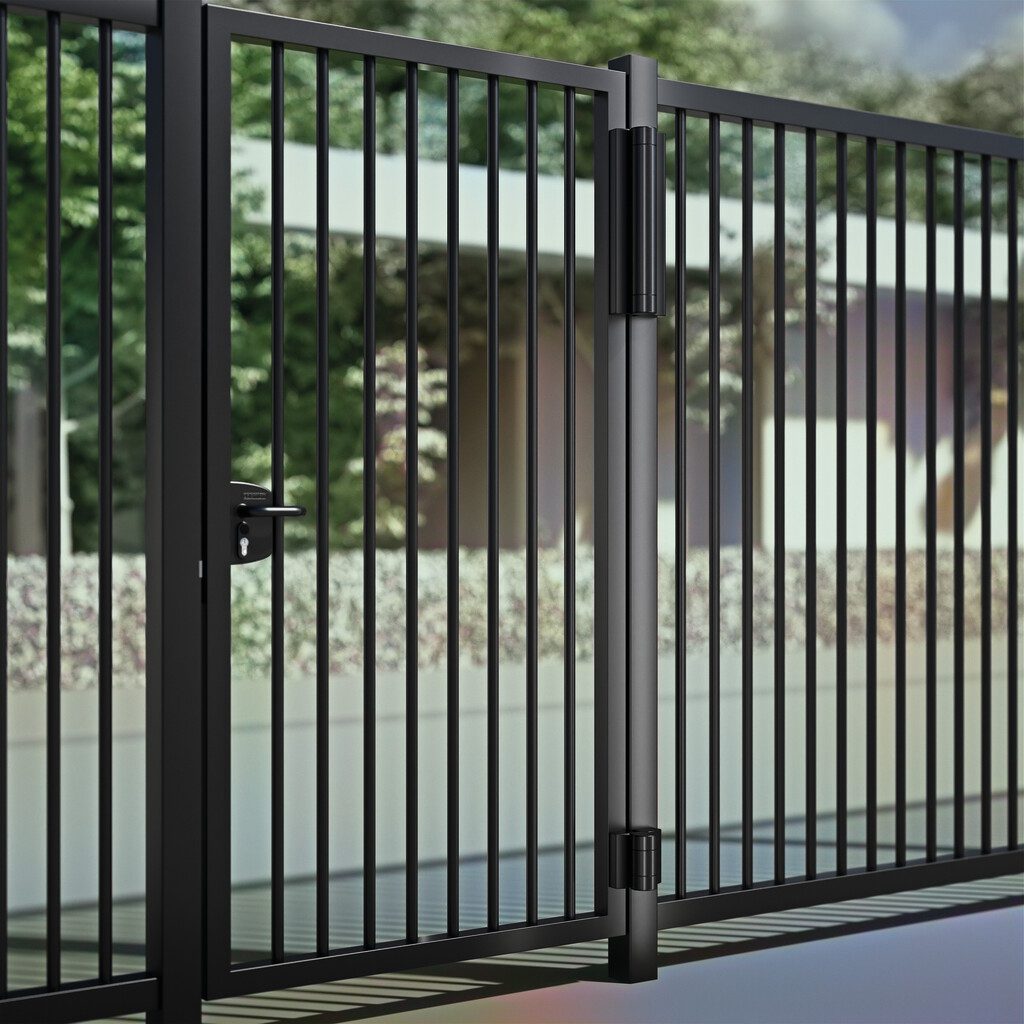

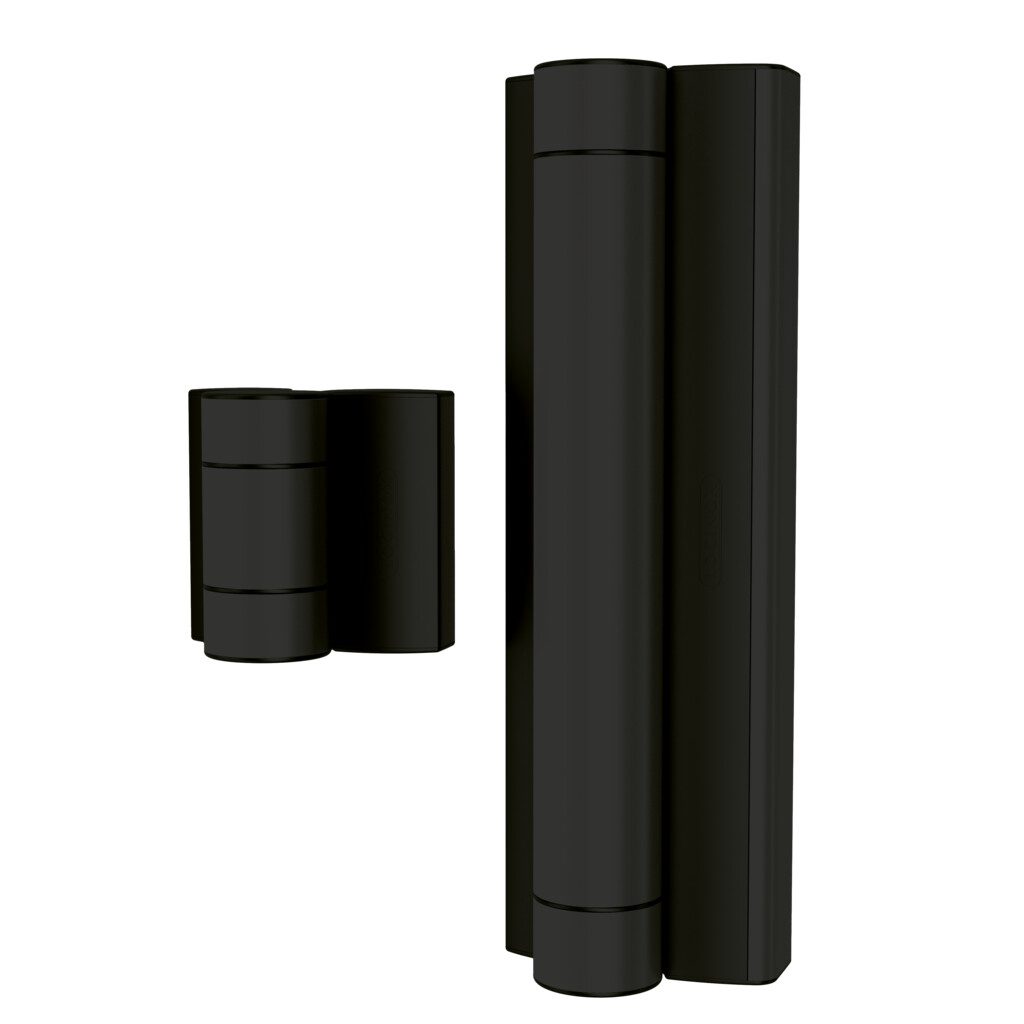

Locinox Magnus Black Reversible motorised gate closer and hinge set
Locinox Magnus Black Reversible motorised gate closer and hinge set - Image 2
Locinox

Locinox Magnus Black Reversible motorised gate closer and hinge set

Product ID: MAGNUS-9005

The MAGNUS motorised gate closer is specifically designed for automating pedestrian gates up to 1.5m in width and 200kg weight.
MAGNUS has a brushless 24V DC motor specially designed for semi-manual or fully automated outdoor use.

The settings and access control can be configured via an intuitive app. The Magnus comes in RAL 9005 Black finish with a lower hinge and compact connection box.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £265.00 per month with iwocaPay.

Learn more about Iwoca here…

£795.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Why would you choose a Magnus automated gate closer?

If you need to comply with regulations for disabled access, such as wheelchair users, having a motorised or automatic gate helps. Pulling/pushing heavy gates can be difficult and the magnus is designed with low-energy mode and reversible motor. Been able to withstand 200kg in weight, anywhere that manual force may be a barrier for older people, or children.

Additionally, you don’t have to manually push the gate shut behind; the motor assists and fully closes it. With inputs and outputs, you can integrate with the Magnus with access control (such as a keypad, proximity card readers, a standalone receiver and remote, or intercom)

Specification

  • Maximum width: 1500 mm
  • Maximum weight: 200 kg
  • Profile Post profiles from 60 mm
  • Gate profiles from 40 mm
  • Material Housing: anodised aluminium
  • Steel gear box and external connection box
  • 3 inputs and 3 outputs (Max 48W, 24V DC)
  • EN 16005 Compliant
  • IP56 Rating
  • Opening angle Up to 180°
  • Mounting Quick-Fix
  • Installation on left or right handed gates
  • Surface installation
  • Motor torque Maximum 100Nm
  • Power supply 110-240 V AC
  • Weather conditions -30°C => +70°C
  • Warranty 2 years
  • Tested 500K cycles
  • 2m cable between motor and connection module
  • Reversible motor with backdrivability for easy manual use – to be combined with a lock

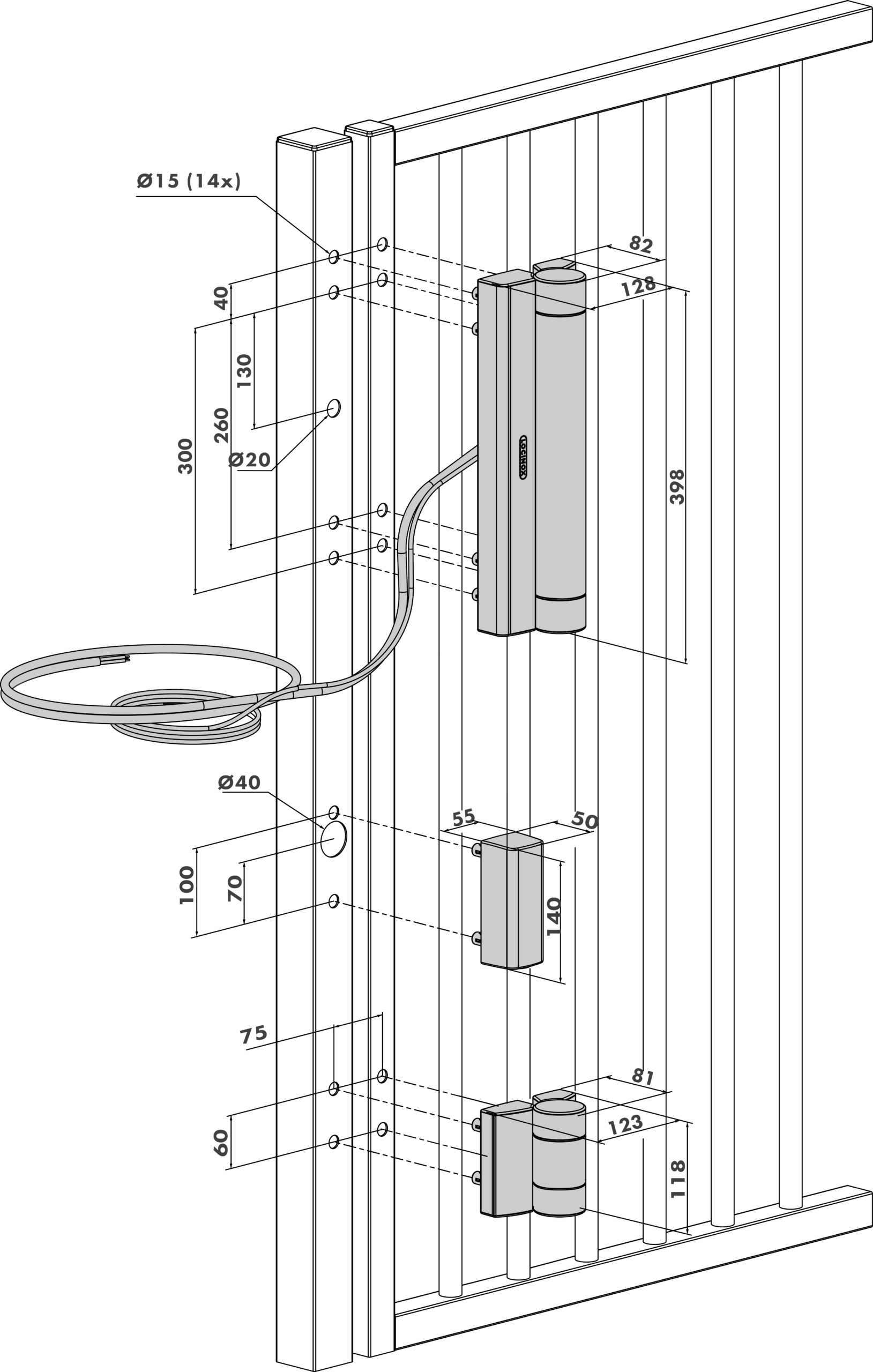

Specification Imagery

Manuals

Locinox Magnus ManualLocinox Magnus Datasheet
