Locinox EIGHTYSET Insert lock set for 80mm box aluminium, metal or PVC gates
Locinox EIGHTYSET Insert lock set for 80mm box aluminium, metal or PVC gates - Image 2
Locinox

Locinox EIGHTYSET Insert lock set for 80mm box aluminium, metal or PVC gates

Product ID: EIGHTYSET

Prime insert lock with 100% stainless steel mechanism for 80mm box section.

The stainless steel, adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, Aluminium, wooden and PVC gates.

Thanks to the patented “Click-It” system the lock is mounted in seconds.

Each kit is supplied with an 80mm euro cylinder with three keys. Surface mounted keep, silver Aluminium stainless steel handle and cover shields.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £24.67 per month with iwocaPay.

Learn more about Iwoca here…

£74.00 ex. VAT

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Backset 60 mm, for mounting in profiles of 80 mm of depth or more
  • Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
  • Key-operated self-latching bolt
  • Easy left or right changing of the self-latching daybolt
  • Throw of the hook: 21 mm
  • Center-distance cylinder <=> handles = 92 mm
  • Compatible with Euro profile cylinder
  • Handles to be ordered separately
  • Perfect for wooden gates

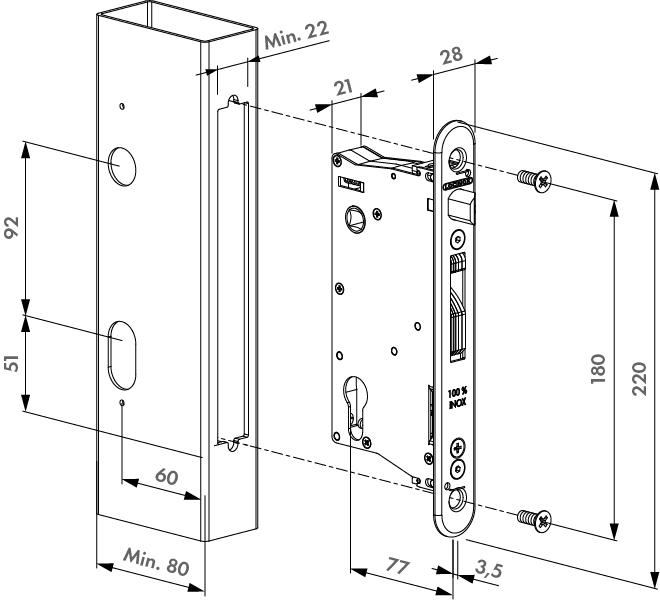

Specification Imagery

Manuals

Locinox Eightylock manualLocinox Eightylock Datasheet

Product Contains

1 x Eightylock

Insert lock for profiles of 80mm

1 x 3012-80-STD-GSZ

Keyed to differ 80mm cylinder with 3 keys

1 x 3006J-H

Aluminium silver handle with 120mm follower

1 x SFKO-ALUMQF

Aluminium stainless steel surface mount keep

1 x 3020-HYB-A2

Pair of stainless steel cover shields
