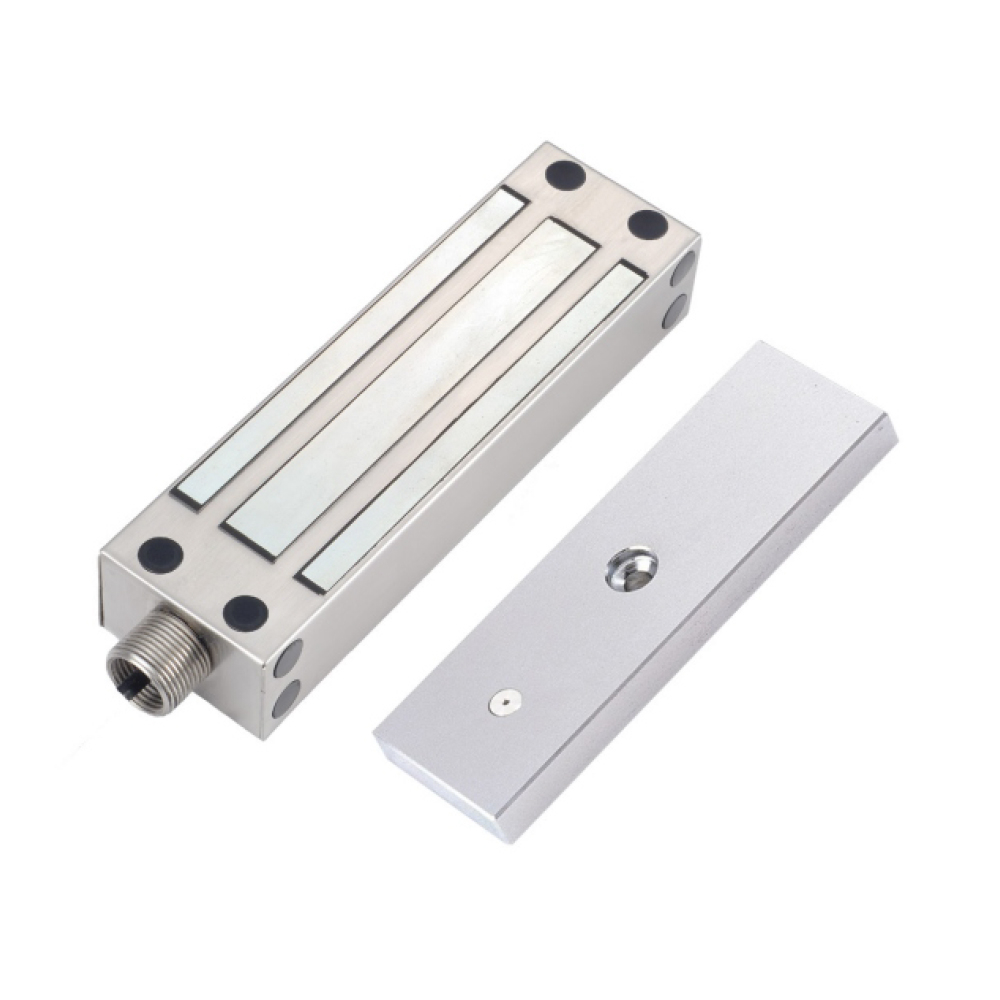

GL220 Magnetic lock 500kg holding force 12/24v

GL220 Magnetic lock 500kg holding force 12/24v

Product ID: GL220

Large Maglock

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £28.33 per month with iwocaPay.

£84.99

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

  • Power supply: DC 12V or DC 24V
  • Current: 460mA @ 12V or 220mA @ 24V。
  • Holding force: GL-220:544kg(1200lbs)
  • Fail safe type. Stainless steel case suitable for outdoors.
  • Door position detection output to detect if it is locked correctly.
  • Automatic demagnetizer function.
  • High efficiency with low consumption of power.
  • Optional bracket available to install.
  • Operation temperature: -10~70℃; Humidity: 85%Rh max.
  • Dimensions: Lock Body:
    GL-220： 240(L) x 63.5(W) x 43(D) mm
    Armature:
    GL-220：185(L) x 61(W) x 16(D) mm
  • Weight: GL-220 4900g
  • Certification: CE

Specification

Manuals

GL220 ManualGL220 Data Sheet
