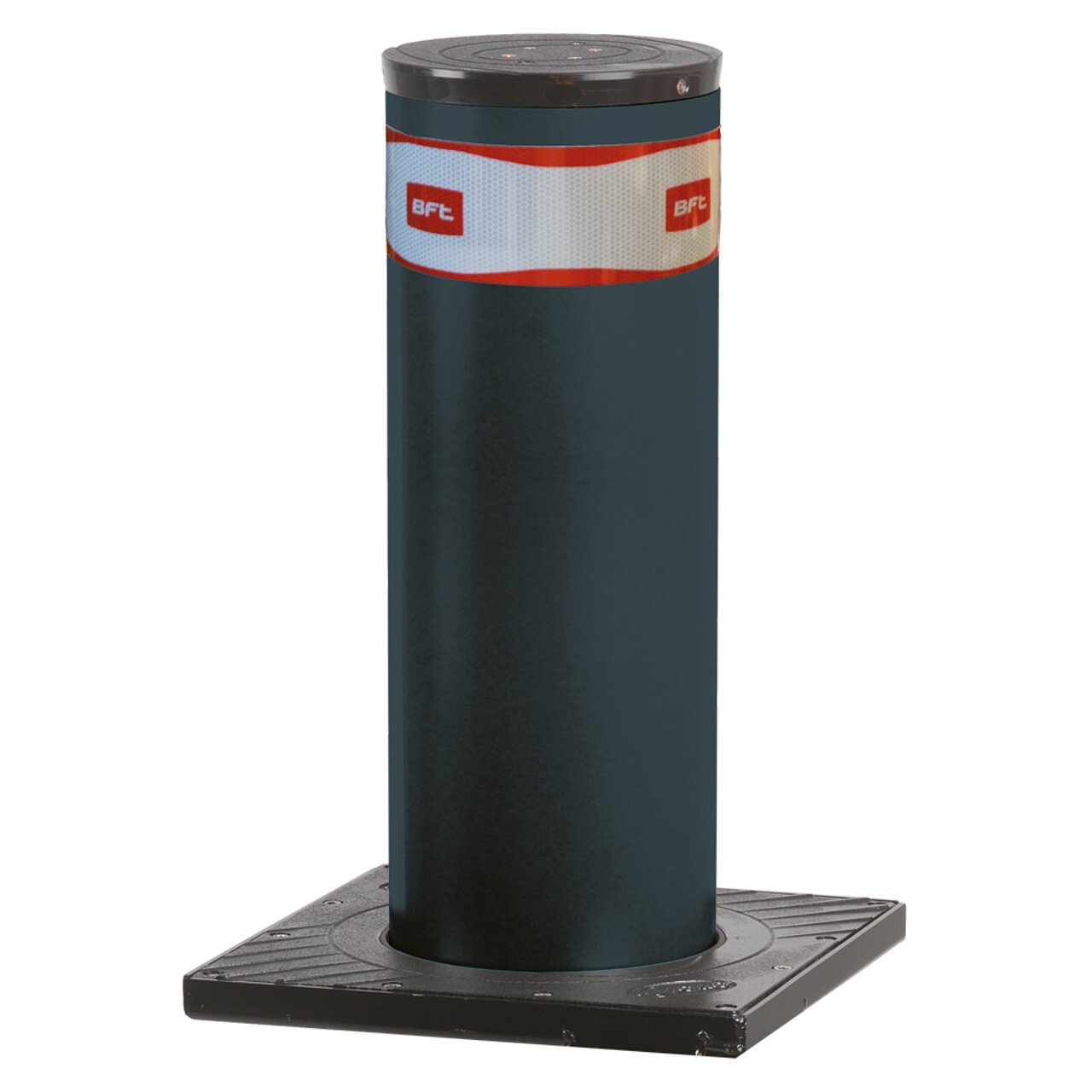

The BFT Pillar 230Vac hydraulic bollard is for very intensive use, 800 mm in height and 275 mm diameter equipped with an LED light crown in painted steel coloured RAL 7015
Fail Secure enabling the bollard to remain raised in the event of a power failure.
The fail secure security version is particularly suitable for sensitive sites such as ministries or airports, as the shaft raises in the event of a power failure. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.
Options for controlling the bollard are:
Single bollard unit only
Technical Specification
| Pillar B 800 | |
| Shaft diameter | 275 mm |
| Shaft height | 800 mm |
| Shaft thickness | 6 mm |
| Raising time | 5 secs |
| Control unit | Perseo CBD |
| Impact resistance | 20,000 Joule |
| Breaking resistance | 250,000 Joule |
| Movement | Hydraulic |
| Frequency of use | 3,000 op/day |
| Limit switch | Reed magnetic sensor |
| Manual operation | Reversible with no power |
| Protection rating | IP67 |
| Temperature range | -40°C to 60°C |
