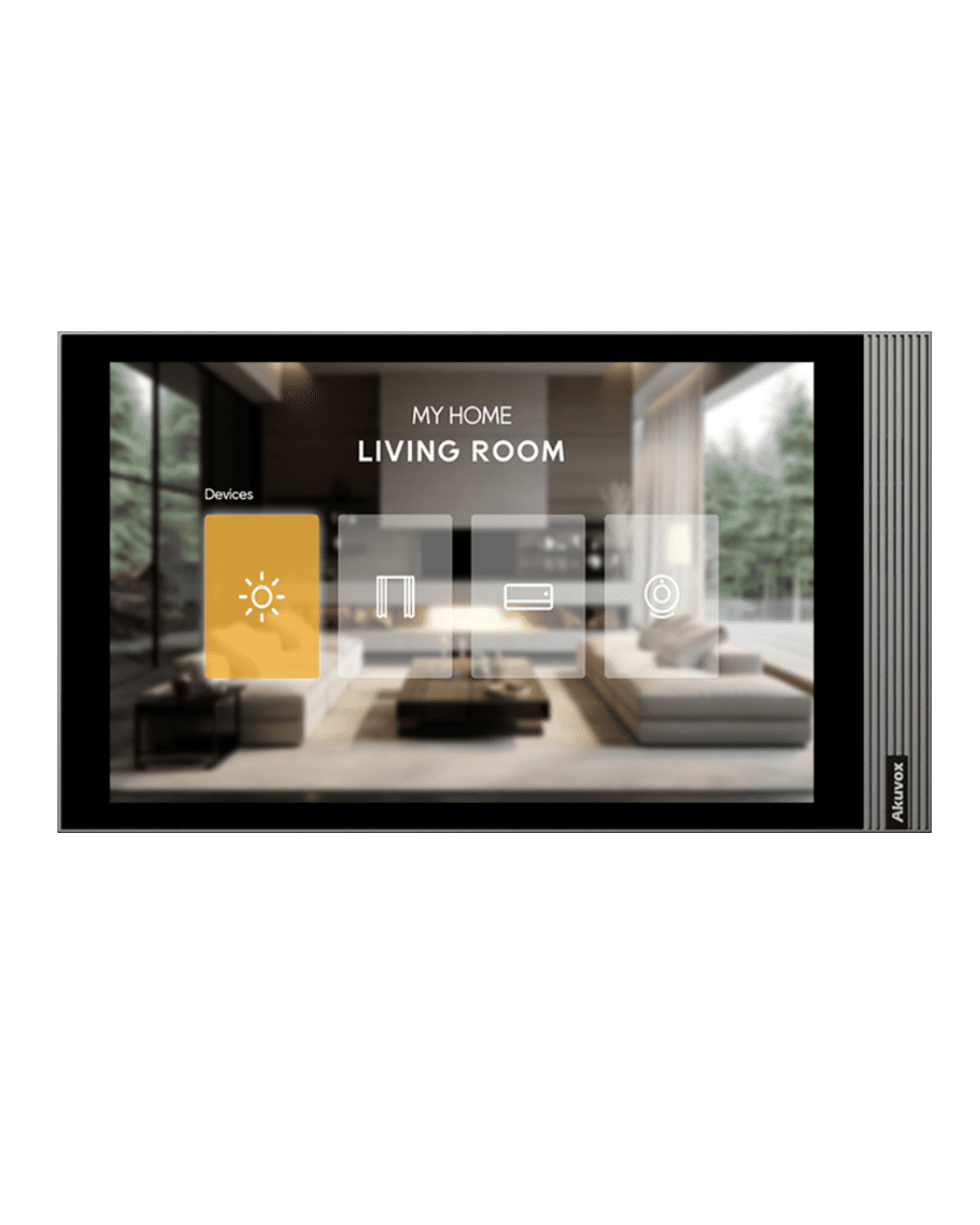

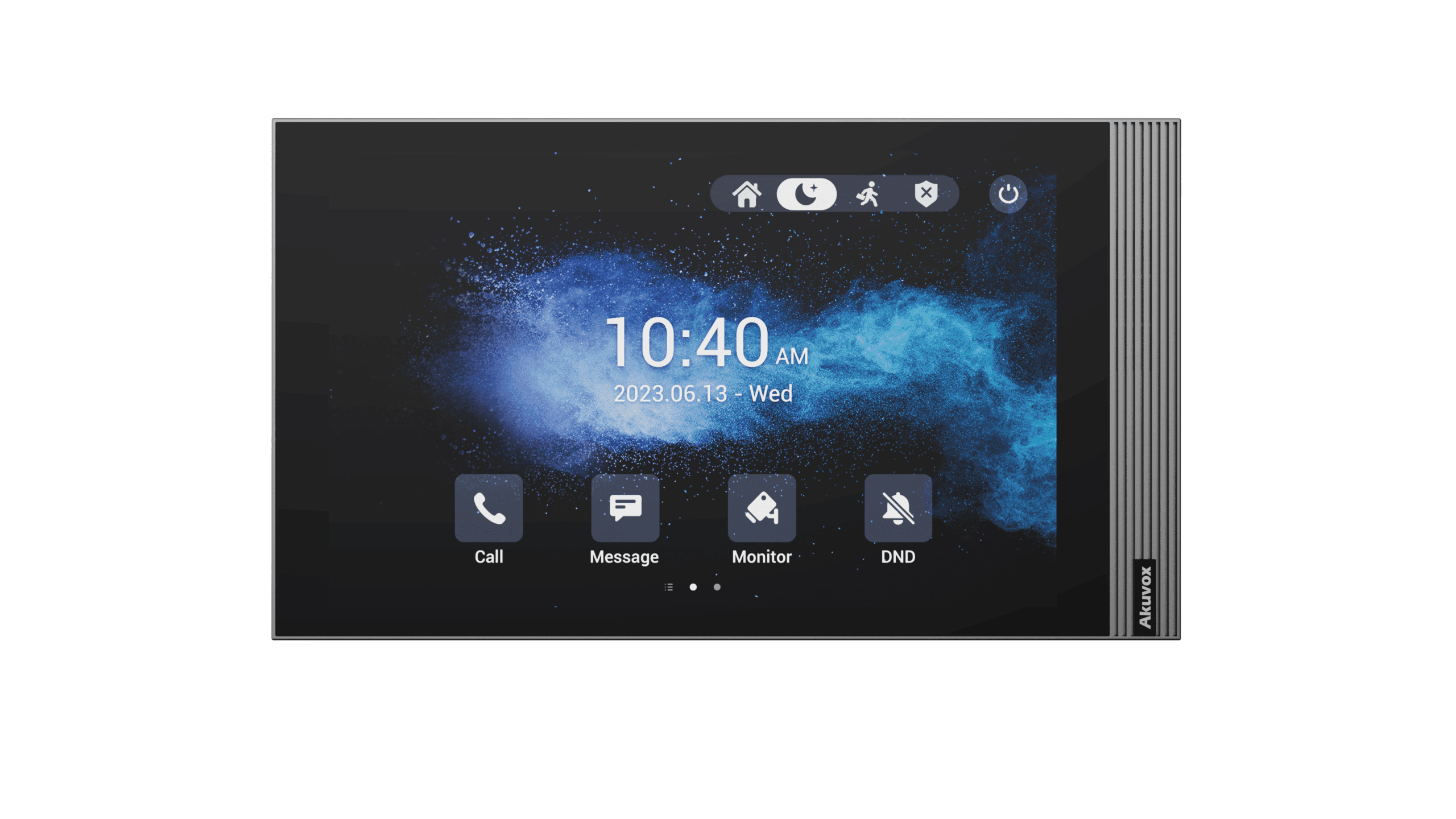

Akuvox S563W 8inch Ip touchscreen monitor with Bluetooth and Wifi
Akuvox S563W 8inch Ip touchscreen monitor with Bluetooth and Wifi - Image 2

Akuvox S563W 8inch Ip touchscreen monitor with Bluetooth and Wifi

Product ID: S563W

The Akuvox S563W 8” indoor monitor is from the S Series, and runs on an Android 12 operating system, equipped with WiFi and Bluetooth wireless connectivity.

Using SIP 2.0 protocol, the S563W provides audio & video communication between the outside intercom for the visitor and the property.

Delivering a cost-effective touch screen experience with the 8″ capacitive touch screen display, the S563W brings both convenience and security to the home.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £103.33 per month with iwocaPay.

Learn more about Iwoca here…

£310.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

Each Akuvox indoor monitor comes with a lifetime subscription, with no ongoing costs.

The Akuvox S563W monitor is ideal for integration as part of smart home living and access control systems in shared housing/multi-dwelling unit apartment buildings.

  • Android 12 operating system supports integration with smart home living systems
  • Flexibility to install 3rd-party Android applications such as Spotify and Netflix
  • Control other 3rd-party IP-connected ‘smart home’ devices such as lighting, heating, curtains etc.
  • Built-in voice assistant supports hands-free answering of intercom calls and door unlocking.
  • High-resolution live video streaming of door intercom and surveillance cameras, as well as high-performance video streaming from video apps such as YouTube, etc.
  • 8 inch capacitive touchscreen
  • Two-way audio communication with other units in the network
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Powered by PoE or external source
  • Supports US or European electrical wall box mounting
  • Android 12 OS
  • Voice changer facility to protect vulnerable residents
  • Built-in voice assistant



Specification

Description S563W
Screen display 8 Inch capacitive touch screen
Speaker Dual speakers, 4Ω/2W
Ethernet Ports 2xRJ45, 10/100Mbps adaptive
Microphone -26dB
Installation Wall-mounted & Desktop
Working Humidity 10~90%
Working Temperature -10°C~+45°C
Storage Temperature -20°C~+70°C
WiFi IEEE802.11.b/g/n,@2.4GHz
Protocols Support IPv4, HTTP,HTTPS,FTP,SNMP, DNS,NTP,RTSP,RTP,TCP,UDP, ICMP, DHCP, ARP
Alarm Input 8
Bluetooth 4.2
Bell In 1
Relays Out 1
RAM / ROM 2GB / 8GB
Dimensions 217 (w) x 124 (H) x 22 (D) mm
Weight (Net) 0.33kg
Weight (Gross) 1.95kg

Manuals

Akuvox S563W DatasheetAkuvox S563W Quick start guide
