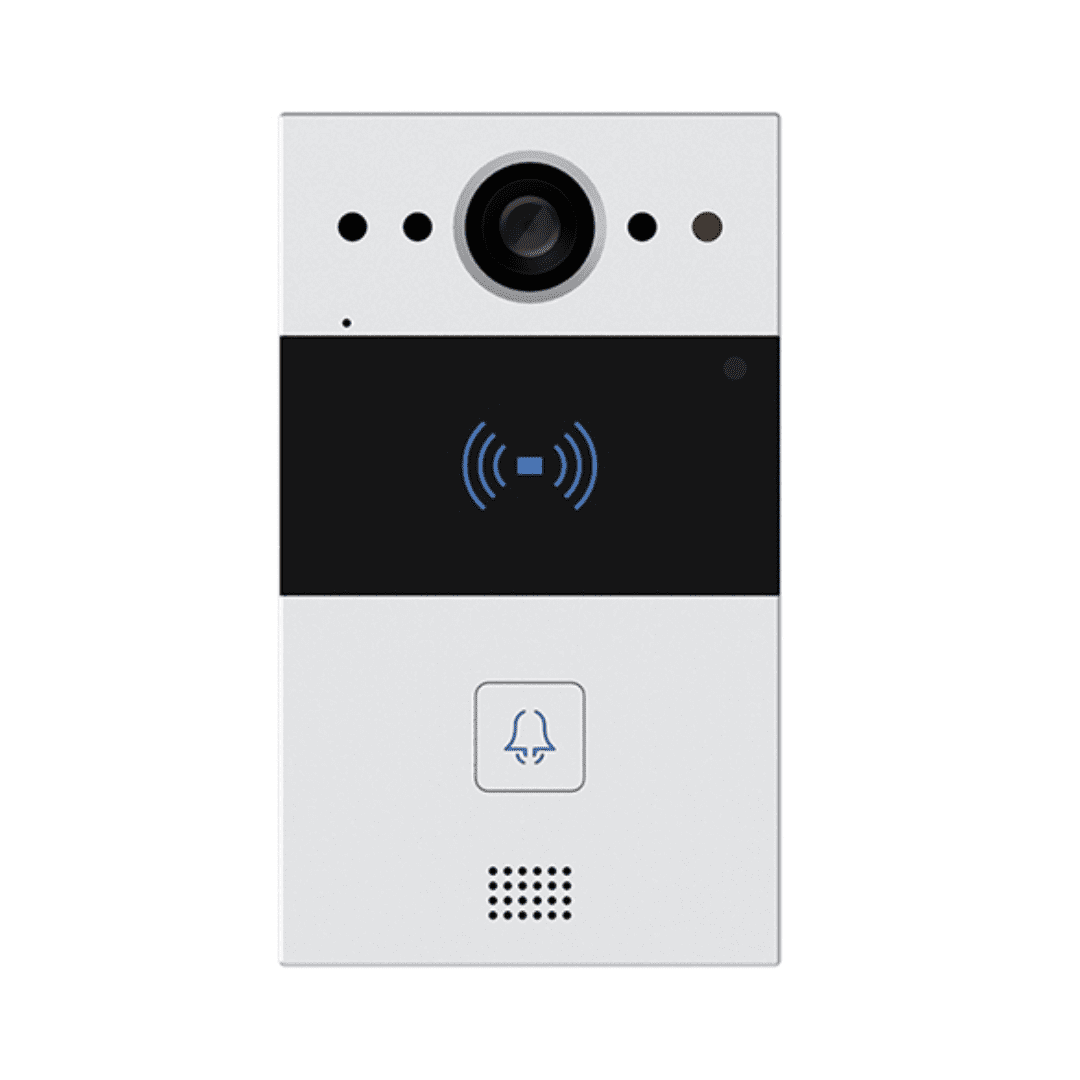

Akuvox R20AS Silver Surface mount IP Video Intercom

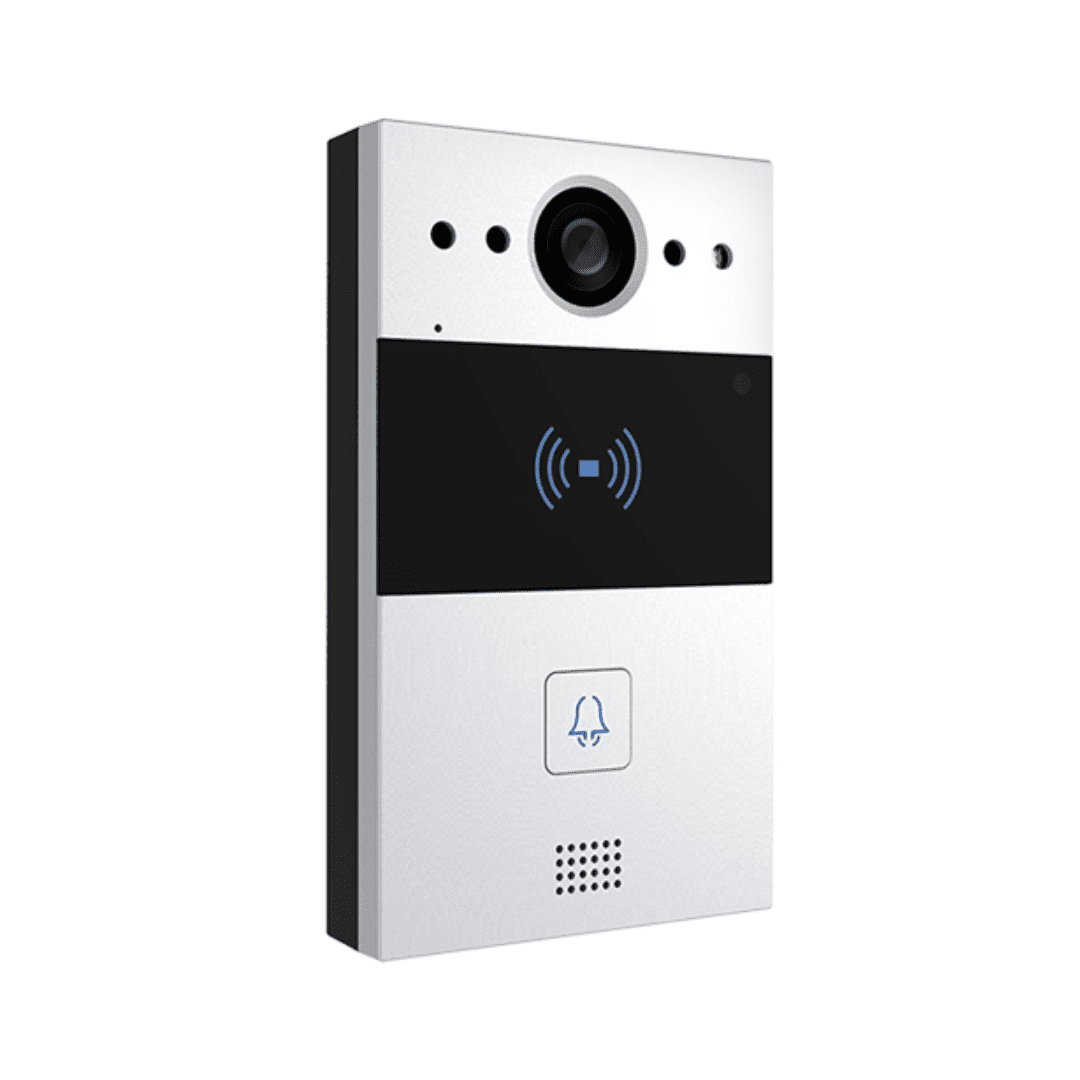

Akuvox R20AS Silver Surface mount IP Video Intercom - Image 2

Akuvox R20AS Silver Surface mount IP Video Intercom

Product ID: R20AS

The R20KS is a silver-finish, surface-mounted, 1-button, IP-connected video door intercom.  2MP high-resolution colour camera, an RFID card reader and NFC contactless via smartphone.
Using the latest IP connectivity technology, Akuvox R20KS intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access.
The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs. The built-in NFC allows for contactless and secure access using NFC-enabled smartphones.
PoE switch not included; must be sourced separately.
View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £88.63 per month with iwocaPay.

Learn more about Iwoca here…

£265.90

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

If purchasing the Akuvox R20A intercom without any internal monitor, an Akuvox cloud subscription is required at an additional yearly cost.  However, with any monitor there are no licence costs and free app usage for life with no ongoing costs. The internal monitor is sold separately and available as a 7-inch S562 or 10-inch S567 model.

Programming and configuration of the intercom can be done on the web http://ecloud.akuvox.com or installation app.

  • IP connected Door Intercom
  • Single Call Button
  • Integrated RFID Card Reader
  • IP65 protection rating
  • Wiegand output for integration with 3rd party door release
  • Wide-angle camera: Horizontal 120°, Vertical 65°
  • PoE (IEEE802.3af, Power-over-Ethernet)
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Complies with ONVIF standard for easy integration with any network surveillance system



Specification

Water-proof & Dust-proof protection rating IP65
Camera 3M pixels, automatic lighting
Button 1 call button
G-sensor Supported
Infrared Sensor Supported
RS485 Supported
RF Card Reader 13.56MHz & 125kHz
Output Relay 2 output relays for remote door lock control
PoE IEEE 802.3af
Power Requirements PoE or 12v DC
Installation Surface mounted (Back box included)
Body Material Zinc alloy
Dimensions 145(H) x 85(W) x 27.5(D) mm
Dimensions (incl bracket) 145(H) x 85(W) x 30(D) mm
Weight (Net) 0.60kg
Weight (Gross) 0.70kg

Manuals

Akuvox R20A DatasheetAkuvox R20A Manual
