All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power.

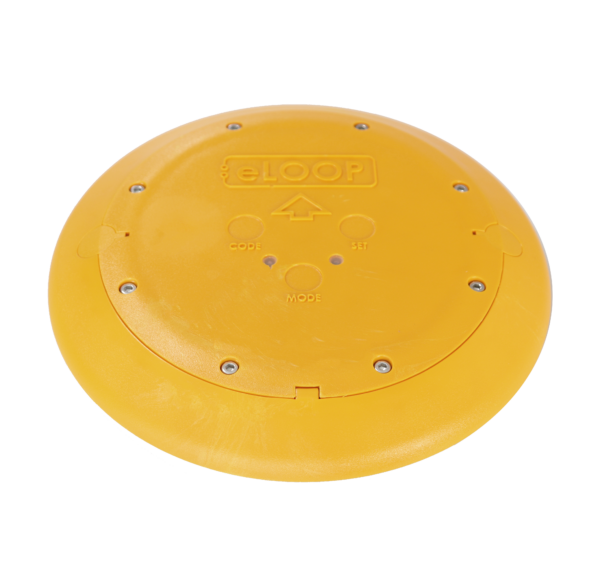

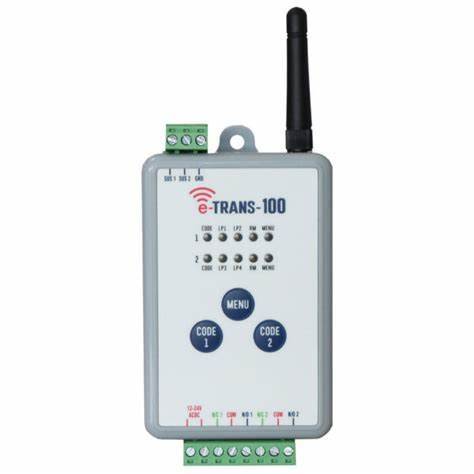

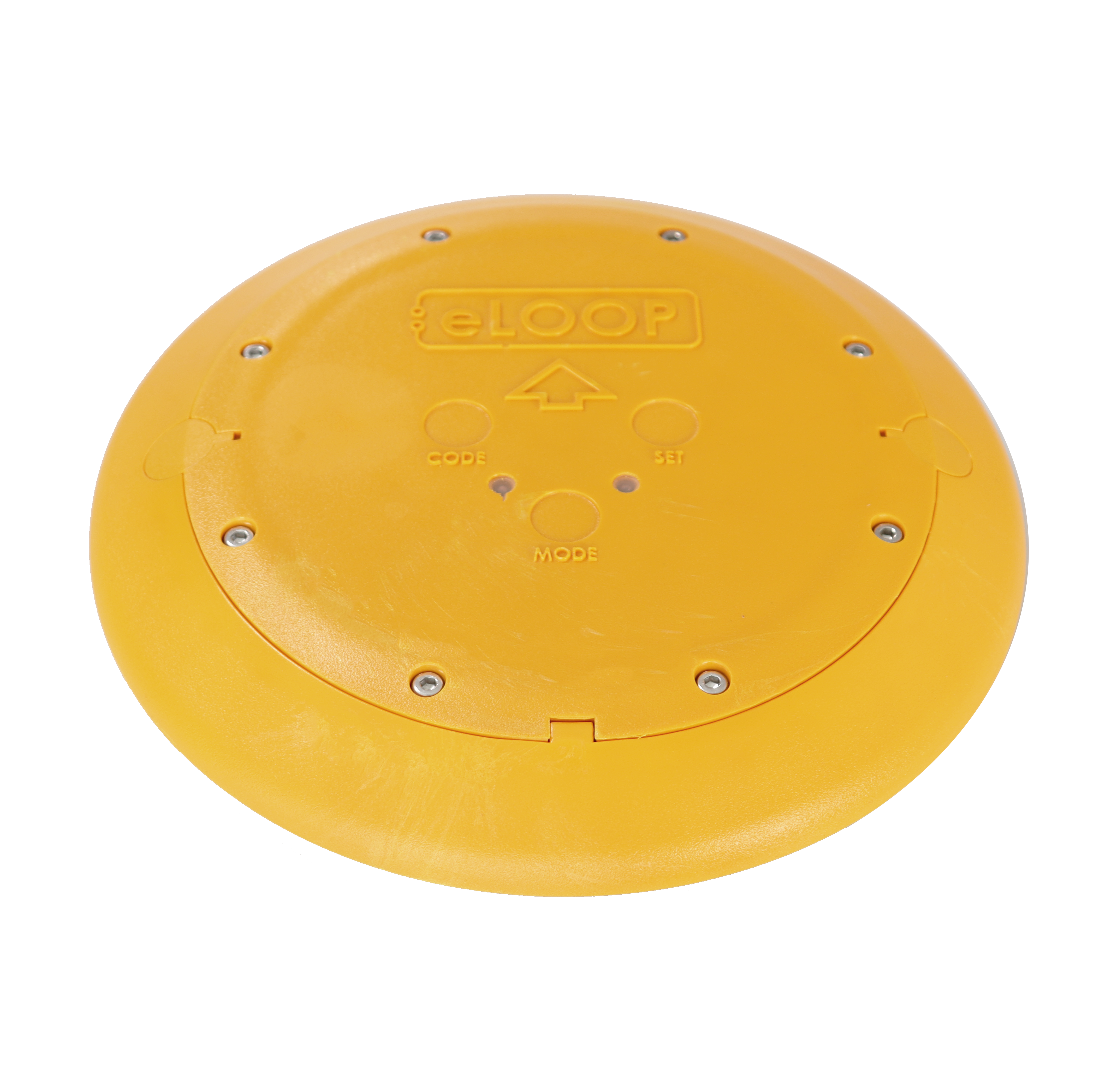

EL00C-RAD presence only commercial wireless detector with 100 Transceiver. Manage access for multi-unit complexes with up to 50 units.

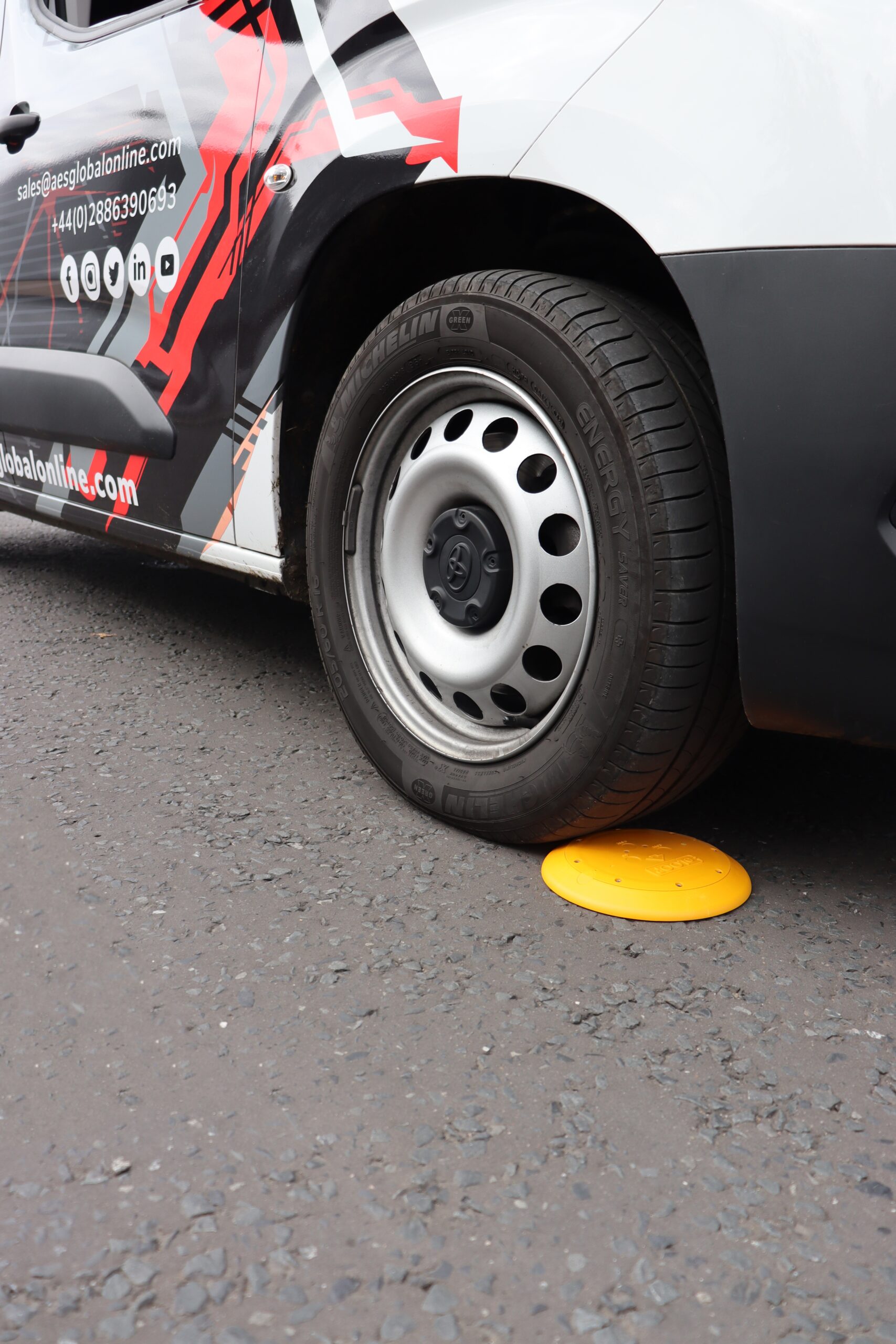

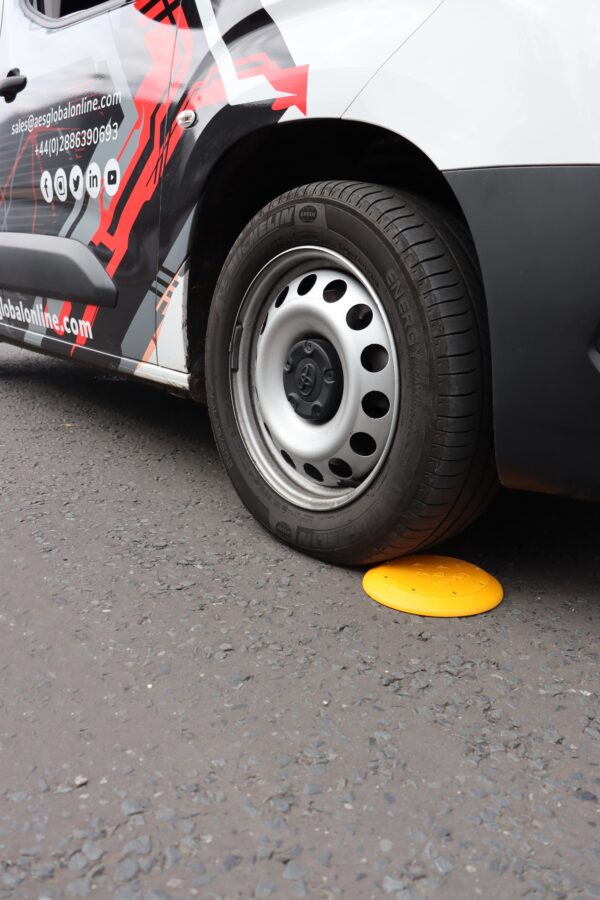

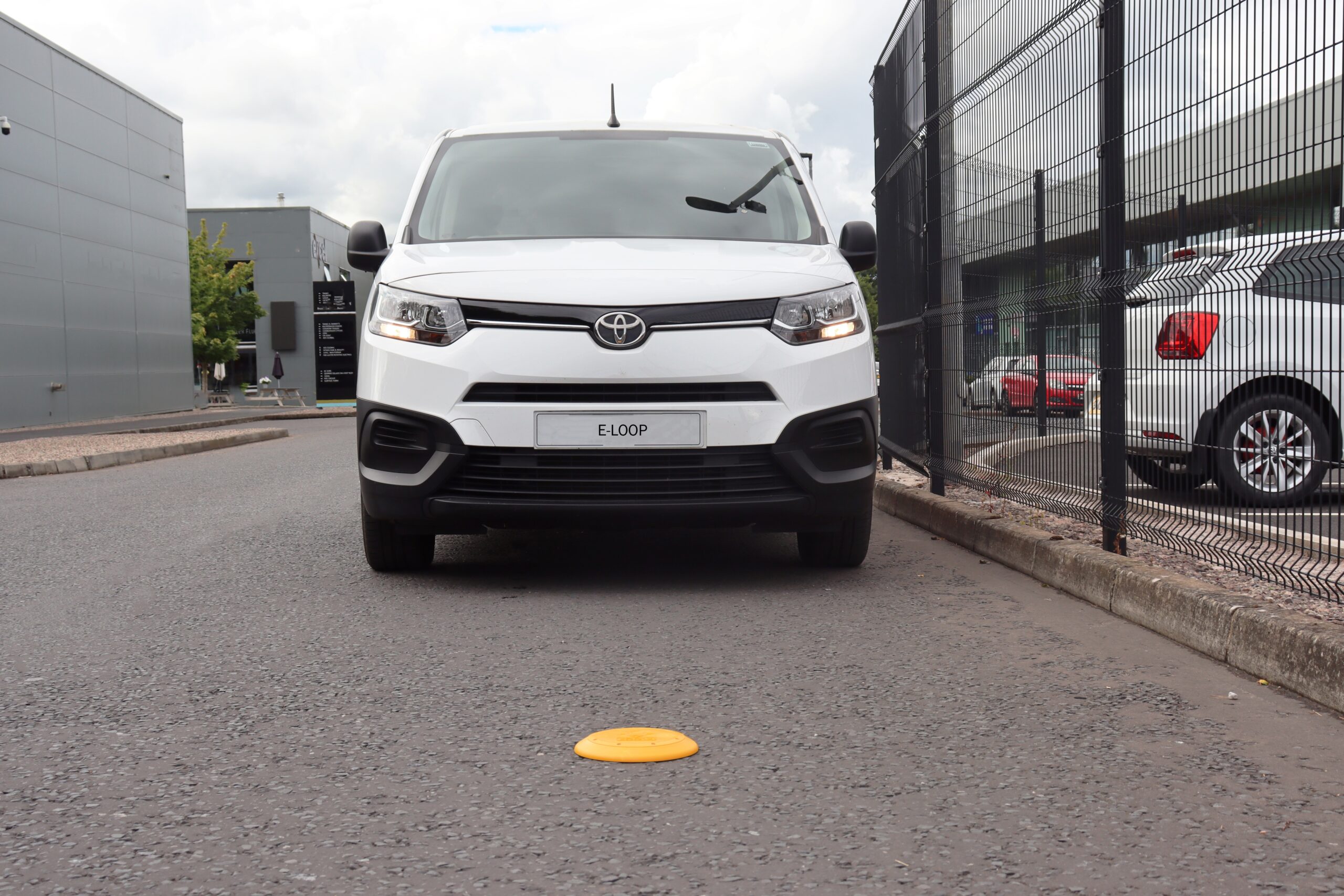

The Radar sensors can detect vehicles that are stopped above the e-loop.
The added radar utilises two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an
oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop.
If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode
Installation in 3 simple steps
1 – Code in e-Loop.
2 – Secure e-Loop to the driveway.
3 – Calibrate e-Loop and you’re ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.
Quick and easy installation.
- Compact profile – only 26mm high x 200mm diameter.
- Not affected by ground movement.
- 10600 mA battery giving up to 10 years battery life
- High security 128 bit encryption.
- Static load capacity 2500kg.
- Range up to 50 meters.
- Made of high impact plastic
