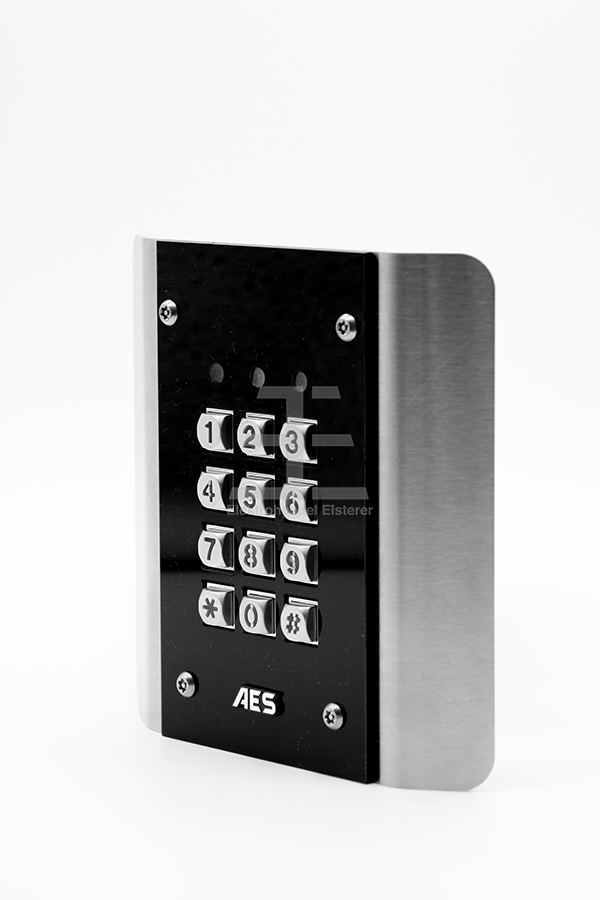

AES AESKP standalone architectural keypad

Product Code: AESKP

The panel has an optional backlight and is manufactured from stainless steel with a hardened black acrylic plate on the front.

View more
inc VAT

ADDITIONAL INFORMATION

The panel features a built in keypad for access control so users with access codes can enter by simply entering a code. Access status is displayed by the three LEDs above the keypad. With 1,200 user codes it can be used as a pedestrian gate access.

SPECIFICATION

Features

  • 1,200 user codes
  • 3 LED lights/status indicators
  • Buttons have blue illumination
  • Night illumination

Technical Data

  • 3 relays
  • Power: 12-24v DC
  • Weather rating: IP55
  • Wiegand output: 26 and 34 bit
  • Egress input: Yes
  • Current: 34 mA standby. 110 mA latched relay
  • Relay type: N/C and N/O. Latching & momentary
  • 151 x 144 x 40 (hwd mm)

MANUALS

Sorry, there are no manuals available for this product.

This kit contains:
