ABLE V2 35Y012 Safety edge transmitter
ABLE V2 35Y012 Safety edge transmitter - Image 2
ABLE V2

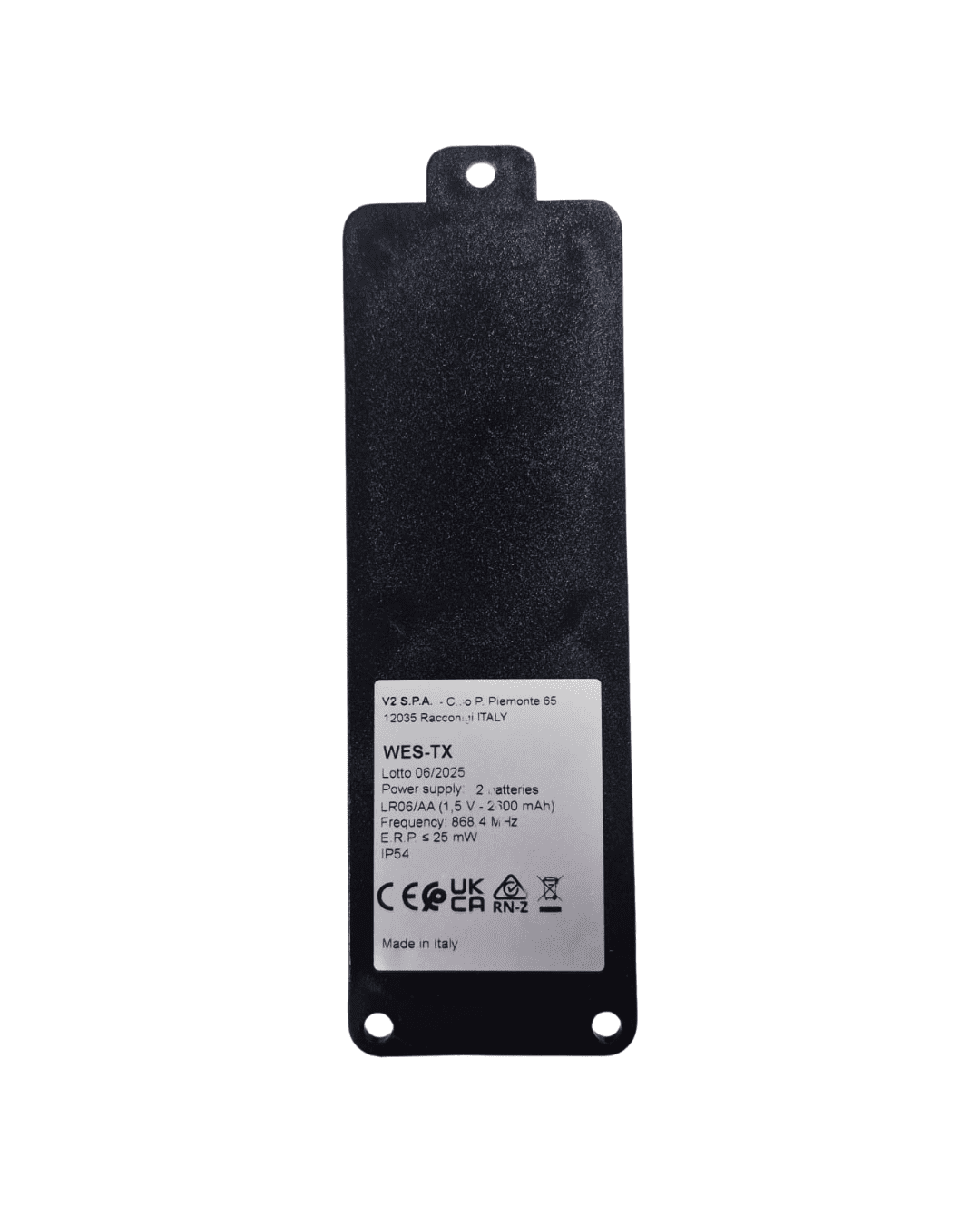

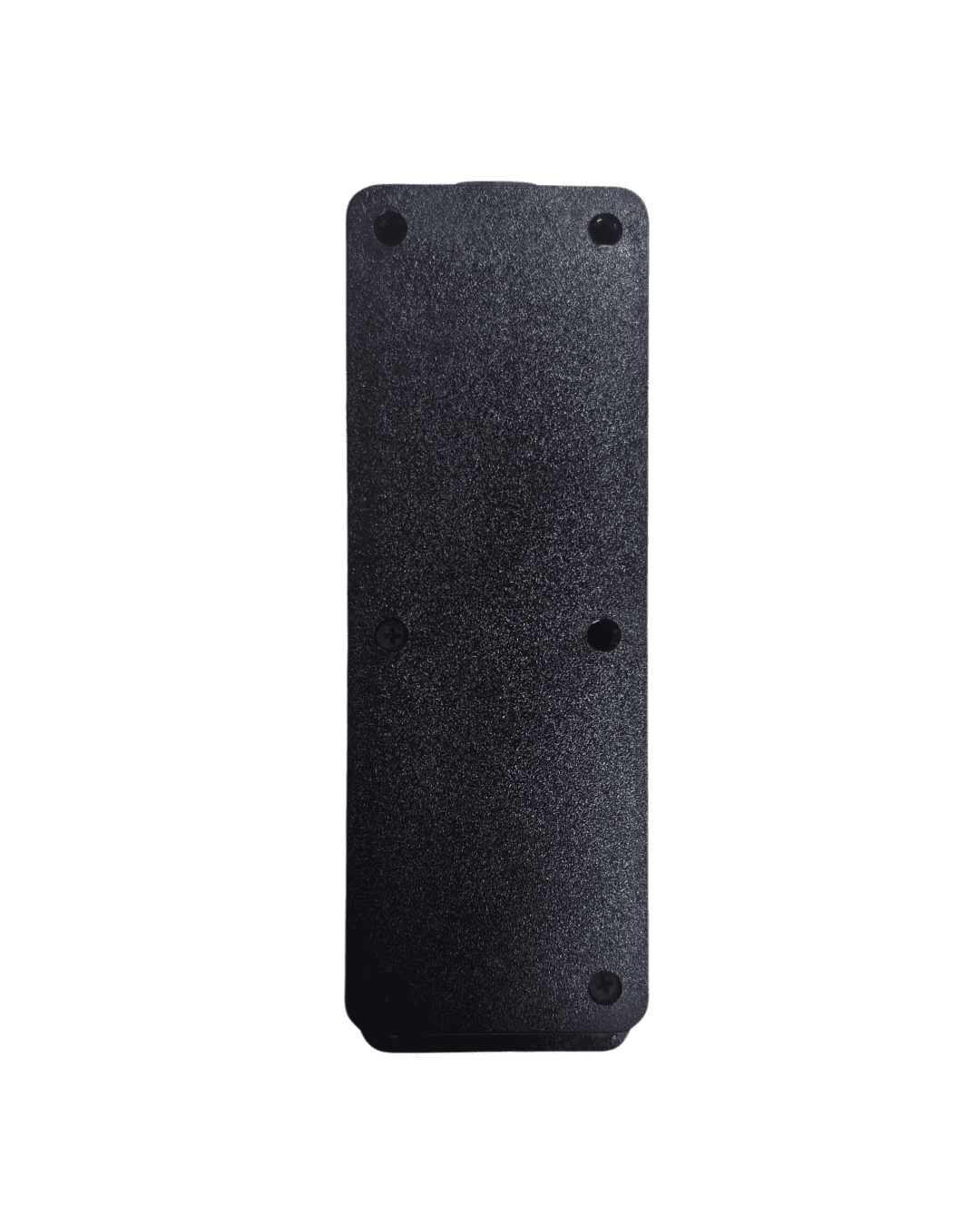

ABLE V2 35Y012 Safety edge transmitter

Product ID: 35Y012

ABLE V2 Wireless safety edge transmitter compatible with the 35Y011 Receiver.

Supplied with 2 batteries LR06/AA (1,5V-2600mAh)

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £23.33 per month with iwocaPay.

Learn more about Iwoca here…

£70.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

The transmitter sends wireless signal to the receiver which constantly checks the status of the wireless transmitters connected to it. The product can be installed for sliding gates and industrial sectional doors. The maximum speed of the installation is 60m/min, as the time response is 100ms.

Before closing the TX when installing, make sure the O-RING is undamaged and clean. If necessary remove any dust with a cloth.

Replacing the battery every 12 months is advised to ensure correct operation.

Specification

  • Supply (Vac-dc) : 2 x LR6/AA Batteries
  • Degree of protection : IP54
  • Operating temperature : -15 – 50°C
  • Stand by time : DIP1 OFF 1 Year / DIP 1 ON 2 Years
  • Inputs : 1 mechanical or resistive safety edges
  • Maximum range : 20m

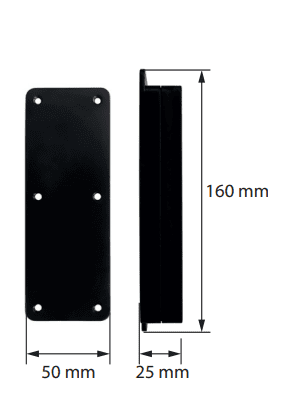

  • Dimensions (mm) : 160 x 50 x 25

Specification Imagery

Manuals

ABLE V2 WES 35Y011 35Y012 Manual
